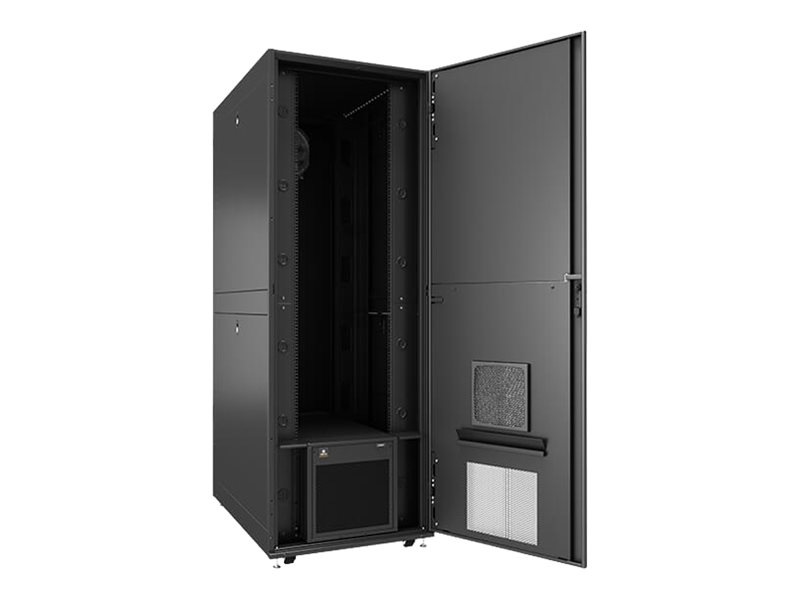

Vertiv VRC-S - Micro Data Center VR3357 48U 3.5kW 208V Rack Cooling Unit
Quick tech specs
- The Vertiv VRCS3357-208V is a 48U rack with its own air cooler and power distribution unit (PDU)
- Vertiv Geist Rack PDU VP5870V: 30A| 120V| 30 C13 and 6 C19 locking outlets| L6-30P plug| 4.9kW
- The VRC-S comes with a 3-year warranty, though the coverage for the rack and the PDU can be ext
- VRC101KIT: Self-contained server rack cooling unit that delivers 3.5kW (12000 BTU) of sensible cooling
- Vertiv Intelligence Director (VID) enables remote monitoring and management of the micro data center
Know your gear
The Vertiv VRC-S VRCS3357-208V is an enclosed 48U rack that can rapidly convert any space into a pre-engineered micro data center with its own power distribution unit (PDU), and air cooling unit. This air-conditioned cabinet is equipped with both the Vertiv VRC100KIT, and the Vertiv Geist Switched Rack PDU (rPDU) VP5870V. The rack is 2.2m tall, 0.8 wide, and 1.2m deep. Designed for small network closets and computer rooms, the VRC-S can be shipped within 3-5 business days.
12000 BTU AIR CONDITIONER
The VRC-S helps save valuable floor space with the VRC101KIT, which is a self-contained, rack-mounted, 3.5kW server rack cooling unit that provides the high sensible cooling that your IT gear needs. The 208V, 60Hz unit takes up only 10U, leaving enough room for IT equipment. The whole system is designed for simple installation that can be done even by the end user.
INTELLIGENT PDU
With an intelligent PDU, the VRC-S can provide solutions beyond simple power distribution. It has a 0U rPDU with 30 IEC C13 and 6 IEC C19 locking receptacles, a L6-30P plug, and a capacity of 4.9kW. Outlet level monitoring and control allow remote rebooting of unresponsive IT equipment, while the integrated temperature and door position sensors provide important environmental data.
REMOTE MANAGEMENT
Managing both the rPDU and the cooling system can be done remotely using the Vertiv Intelligence Director, which enables users to monitor and manage the whole VRC-S system through a single IP address.
