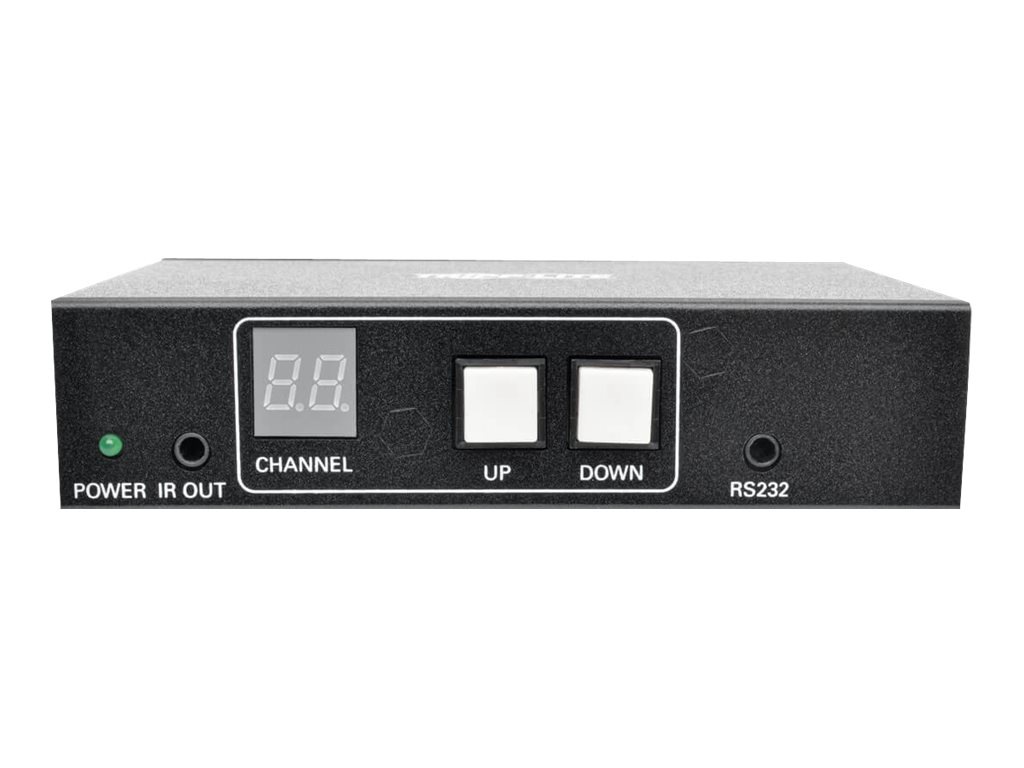

Tripp Lite VGA Over IP Transmitter/ Extender w/ RS-232 Serial, IR Control TAA - video/audio/infrared/serial extender -
Mfg # B160-001-VSI
CDW # 4510352
Quick tech specs
- VGA over IP transmitter/ extender kit w/ RS-232 Serial and IR control over IP Extender Kit Cat5 Cat6
- 1920 x 1080 (1080p) 328 ft 100m
- Compatible with all analog or digital displays
- Mounts on wall rack or pole with included hardware
- Tripp Lite is now a part of the Eaton family
- VGA over IP extender/ VGA extender cable/ rs232 range extender/ Cat5 5e Cat6 6a/ VGA extension
- Designed for managed network switches with IGMP
- Plug/play; no software or drivers required
- TAA compliant
Know your gear
The B160-001-VSI VGA Video + Audio with RS-232 Serial and IR Control over IP Transmitter extends and distributes VGA video + audio, RS-232 serial and IR (infrared) remote signals through a dedicated Ethernet network switch located up to 328 feet (100 m) away. With an additional 328 feet between the switch and the receiver (sold separately), the total maximum distance from source to display is 656 feet (200 m).
Designed for managed network switches with IGMP, which allow login and remote management via switch interface, the B160-001-VSI displays a single source on a single display or distributes a single signal to multiple displays. You can connect up to 64 transmitters and 255 receivers in a single managed switch installation.
The B160-001-VSI supports video resolutions up to 1920 x 1440, including 1080p, though it's limited to the maximum resolution of the receiver (sold separately). You can send the video source to any analog or digital display, including HDMI and VGA. It extends IR control signals that control a source, such as a Blu-ray player, from a remote display, as well as RS-232 signals at serial baud rates up to 57600 Bps.
Compatible with Tripp Lite's B160-100-DPSI, B160-100-HDSI, B160-200-HSI and B160-100-VSI IP receivers.
B160-Series designed for use with dedicated network switch. Connecting to a switch used with other networking equipment will result in degraded or non-functional performance.
Unmanaged switch installations are limited to two transmitter units. Number of receivers is limited to number of ports remaining on unmanaged switch.
Designed for managed network switches with IGMP, which allow login and remote management via switch interface, the B160-001-VSI displays a single source on a single display or distributes a single signal to multiple displays. You can connect up to 64 transmitters and 255 receivers in a single managed switch installation.
The B160-001-VSI supports video resolutions up to 1920 x 1440, including 1080p, though it's limited to the maximum resolution of the receiver (sold separately). You can send the video source to any analog or digital display, including HDMI and VGA. It extends IR control signals that control a source, such as a Blu-ray player, from a remote display, as well as RS-232 signals at serial baud rates up to 57600 Bps.
Compatible with Tripp Lite's B160-100-DPSI, B160-100-HDSI, B160-200-HSI and B160-100-VSI IP receivers.
B160-Series designed for use with dedicated network switch. Connecting to a switch used with other networking equipment will result in degraded or non-functional performance.
Unmanaged switch installations are limited to two transmitter units. Number of receivers is limited to number of ports remaining on unmanaged switch.
