Quick tech specs
  • Smart Rack/Tower on-line double-conversion Sine Wave Uninterrupted Power Supply provides Battery Backup through blackouts/ voltage fluctuations and surge
  • Zero transfer time suitable for advanced network applications
  • Selectable 200/208/220/230/240V output voltage
  • 2 Year Tripp Lite Warranty and $250,000 Lifetime Insurance
  • Ideal for servers/network/ telecommunications equipment and more
  • 6 NEMA 6-15/20R and 2 NEMA L6-20R outlets
  • 2% output voltage regulation in online/battery modes
View All

Know your gear

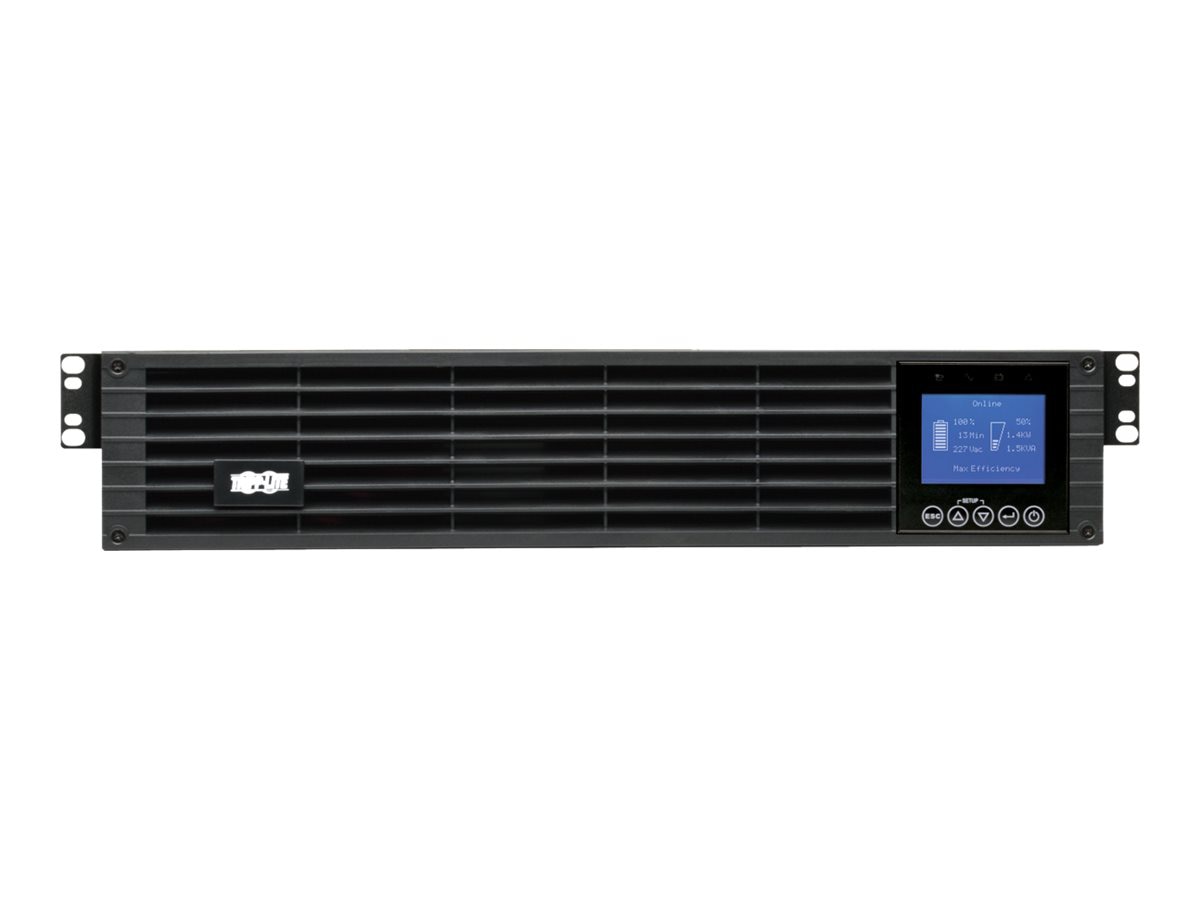

The SU3000LCD2UHV SmartOnline 3000VA/2700W On-Line Double-Conversion UPS converts AC input to DC power, and then converts DC to fully regulated sine wave AC output with +/-2% voltage regulation in online and battery modes. An interactive front-panel LCD interface provides detailed real-time UPS status and advanced setup and configuration options.

In case of AC power outage, the internal batteries support 13.5 minutes of runtime at half load and five minutes at full load. Extended runtime is possible with optional external battery packs. "Smart" battery packs, such as Tripp Lite's BP72V18-2US, are automatically sensed and configured during replacement. An intelligent battery management system extends battery life.

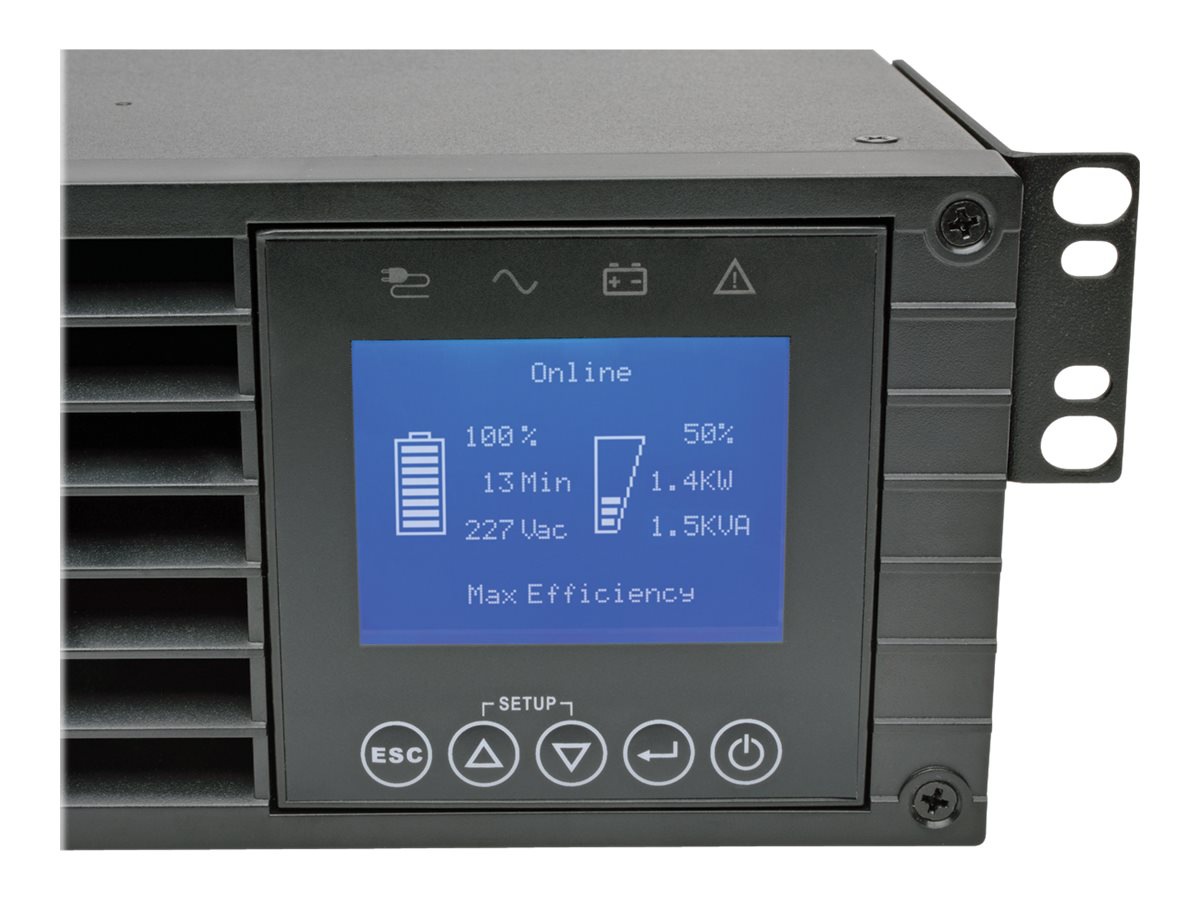

Managing the UPS is simplified through the interactive front-panel LCD interface, which displays operating conditions and diagnostic data, such as load and battery levels. You can set power strategies to reflect your protection priorities, whether it's precise power quality for sensitive systems or the highest possible electrical efficiency, all while ensuring 100% uptime for your systems.

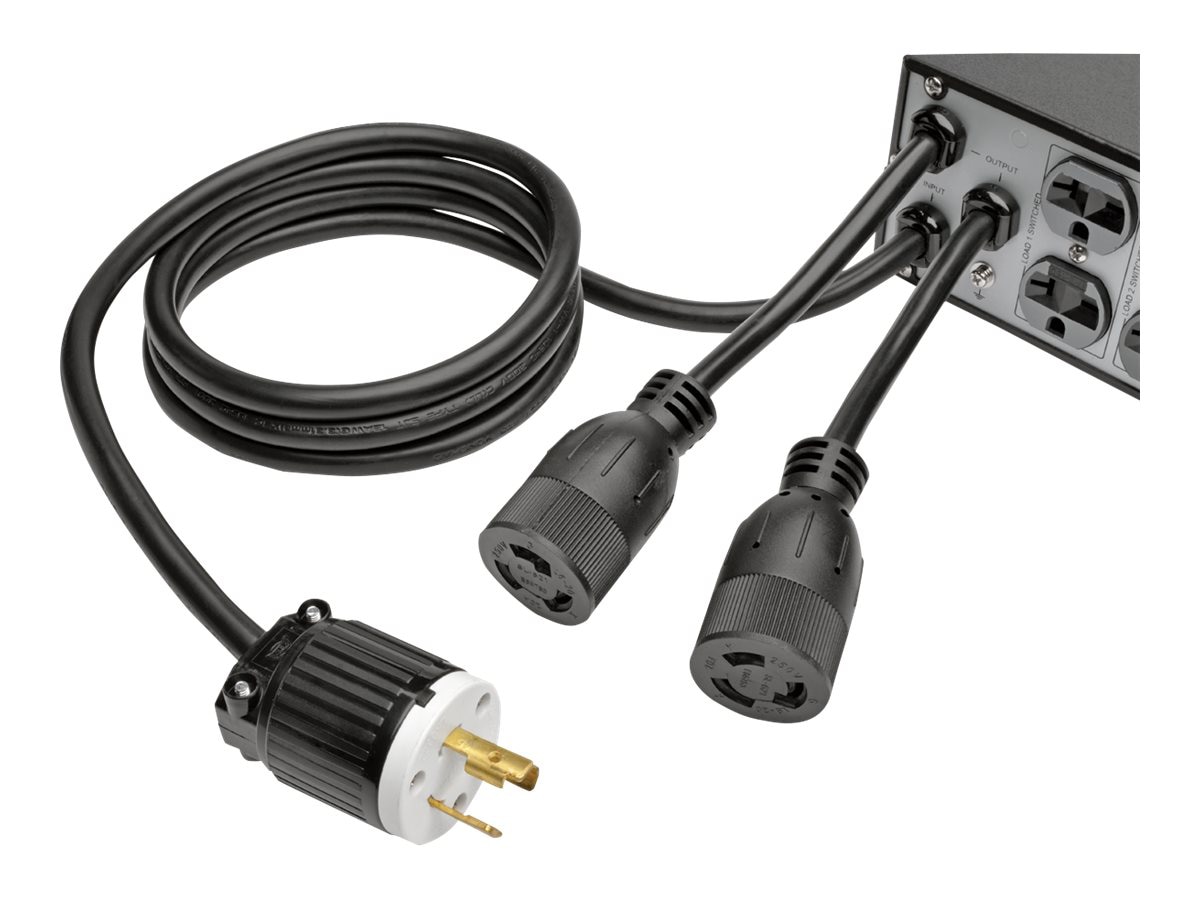

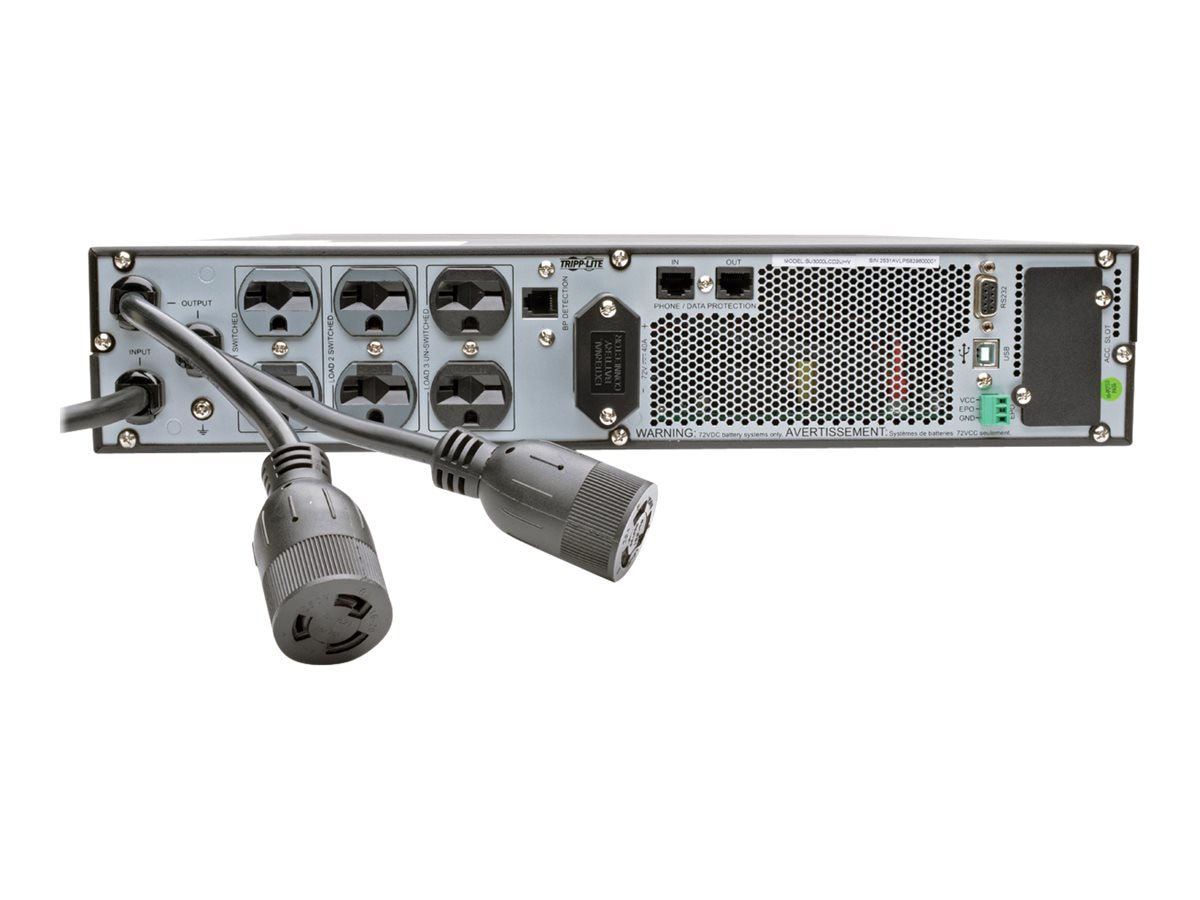

This UPS offers eight receptacles - six NEMA 6-15/20R and two NEMA L6-20R - in two switched load banks. Power is filtered to protect connected equipment against surges and EMI/RFI line noise that can damage equipment or destroy data. Adding an optional Tripp Lite network management accessory card permits remote control and management.

Availability: Item Backordered
 CDW cannot guarantee an in-stock date.
Need it now? View Similar Items

Customize your gear

As you assemble your hardware, configurable options may change or become unavailable.

Better Together

Tripp Lite UPS 3000VA 2700W Smart Online LCD Rackmount 208/240V USB DB9 2U
Quick View
Total Price:
Tripp Lite UPS 3000VA 2700W Smart Online LCD Rackmount 208/240V USB DB9 2U is rated 5.00 out of 5 by 4.
Rated 5 out of 5 by from Definitely! This is used to safeguard a very expensive precision milling machine and has proved its worth the very day
Date published: 2022-01-16T00:00:00-05:00
Rated 5 out of 5 by from Does everything it needs to I'm using this in an array tower that is powering 11 different RAID6 enclosures. Once the setup was done, it provides battery backup for over 10 minutes, which is long enough to power down gracefully. So far the battery has performed admirably and I'm very happy with the purchase.
Date published: 2020-06-18T00:00:00-04:00
Rated 5 out of 5 by from I would buy this product again. Works exactly as advertised.
Date published: 2016-12-22T00:00:00-05:00
Rated 5 out of 5 by from I will use it again VTC room
Date published: 2022-05-31T00:00:00-04:00
