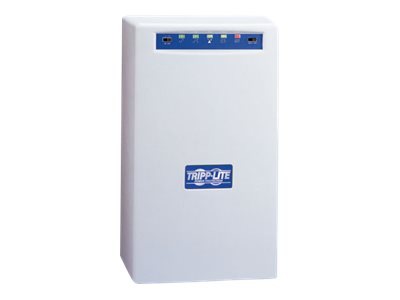

Tripp Lite UPS Smart 1500VA 940W Tower AVR 230V DB9 C13 - UPS - 940 Watt - 1500 VA

Mfg.Part: SMARTINT1500 CDW Part: 689648
Quick tech specs
  • Smart Line-Interactive Uniterrupted Power Supply Tower protects mission-critical equipment against damage downtime and data loss due to blackouts brownouts power surges and line noise
  • Battery backup w/ automatic voltage regulation (AVR) corrects brownouts/over-voltages w/out using battery power from 165V to 277V
  • 20 min runtime half load; 7 min full load
  • Ideal solution for VoIP systems/point-of-sale applications/network closets
  • 6 IEC-320-C13 outlets
  • Tripp Lite is now part of Eaton
View All

Know your gear


1500VA / 940 watt power handling capability supports a variety of networking, telecom and various other application types

Built-in voltage regulation and battery support, plus complete AC suppression prevents equipment damage, data loss and downtime

Large internal batteries offer 20 minutes half load runtime and 7 minutes at full load during power failures

Automatic Voltage Regulation (AVR) circuits with two boost and one voltage reduction level maintains usable 230V nominal output over an input voltage range of 165-277V

Includes 1 DB9 serial and 1 DB9 contact closure monitoring port for remote monitoring of UPS status and site power conditions

Communications ports support messaging of UPS and line power status, including on-battery, low-battery, power-restored, AC line voltage, DC battery voltage and battery capacity

PowerAlert UPS monitoring and unattended shutdown software with complete cabling included

Supports SNMP in large network applications with optional SNMPWEBSOLO external adapter

Includes 6 UPS-supported outlets

Notification of system status via 5 LEDs and multi-function audible alarms

Wall mountable with UPSWM wallmount bracket

Attractive small footprint beige tower housing

Hot-swappable / user replaceable batteries allow on-site battery replacement

Network-grade AC surge suppression

UPS battery set ships fully assembled, no time consuming connection of internal batteries by user is necessary

2 year manufacturers product warranty


Ideal for the protection of fileservers, network accessories and telecommunications equipment. Common applications include any mix of servers, workstations, hubs, routers, concentrators, IP telephony and traditional PBX switching systems. Ideal for sensitive electronic applications in areas where brownouts and overvoltages are common.



2 IEC-320 C13 to C14 power cables

2 DB9 monitoring cables

PowerAlert unattended shutdown and UPS/Power monitoring software

Instruction manual with warranty information

This item was discontinued on June 15, 2023

Enhance your purchase
Tripp Lite UPS 1500VA 940W International Smart Tower AVR 230V DB9 C13 is rated 4.00 out of 5 by 2.
Rated 5 out of 5 by from The Fan Noise is Driving me Crazy The fan runs constantly and in a small office, the noise is a constant distraction. Hopefully my IT guy will be able to mitigate this problem udon acoustic insulation. But this unit only if it will be placed away from people.
Date published: 2016-02-23T00:00:00-05:00
Rated 5 out of 5 by from Excell phone backup unit This unit supports our electronic phone system I would recommend it for anyone needing a reliable backup system for electronics
Date published: 2014-10-08T00:00:00-04:00
