Quick tech specs
  • Smart Online Double-Conversion 8U RackMountable Extended Run Uninterrupted Power Supply 12000VA 8400W with Bypass Switch provides Battery Backup through blackouts voltage fluctuations and surge
  • Hardwire input (4 wire split phase); Hardwire output
  • 2 Year Tripp Lite Warranty/$250,000 Lifetime Insurance
  • Ideal for critical network applications in data centers computer rooms network closets and rugged industrial locations
  • USB RS232 and EPO ports; Network management card slot options
View All

Know your gear

True on-line, double-conversion UPS provides pure, full-time sine wave AC output free of surges, voltage fluctuations and line noise

12,000VA / 8400W output power capacity with dual voltage output of 208/120V or 240/120V

4U high power density power module and 4U external battery pack support rackmount installation in 8 rack spaces (8U)
Dual conversion UPS actively converts raw input from AC to DC, then back to perfect sine wave AC output with enhanced protection from harmonic distortion, fast electrical impulses and other hard-to-solve power problems not addressed by other UPS types

Hardwire input and output terminals are mounted on a detachable backplate with manual bypass switch to enable hot-swappable UPS replacement without powering off connected equipment

Provides perfectly regulated, sine wave output power free of line noise, transient surges and frequency variation for the most efficient operation of critical servers, networking and telecommunications equipment

Maintains output within 3% of selected 208/120V or 240/120V nominal voltage during brownouts and overvoltages

Supports connected equipment during blackouts for 20/7 min. at half/full load levels; runtime is further expandable with optional external battery packs (Model BP192V18-4U)

Network interfaces support simultaneous communications via DB9 port, USB port and SNMPWEBCARD slot. DB9 port supports
RS-232 and dry contact messaging. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X

Included PowerAlert UPS monitoring software supports safe unattended shutdown, monitoring and control via local connected servers, plus any number of additional servers over IP

Communications ports support on-battery, low-battery, power-restored, AC-voltage, DC-voltage, output current monitoring, battery charge current, battery capacity, AC line frequency, timed inverter shutoff, activate self-test and output power control

Built-in Emergency Power Off (EPO) interface with cable

Supports hardwire output at 208V and 120V

Split phase, four-conductor hardwire input connection on included detachable PDU

Front panel LEDs and LCD readout with scroll button enables visual confirmation of all major UPS functions and current site electrical conditions

Front panel switches enable power on/off control, self-test and alarm cancel functions

Included adjustable mounting rails support installation in 4-post 19-in. rack enclosures

Optional 2-9USTAND tower stand set supports upright tower installation

Optional 2POSTRMKITWM accessory enables 2-post rackmount installation

Fault-tolerant auto-bypass maintains continuous utility output to connected equipment, even in cases where the UPS is overloaded or suffers an internal failure that requires service

2-year warranty, $250,000 Ultimate Lifetime Insurance (USA and Canada only)

This item was discontinued on July 22, 2022

Contact Sales Assistance
(800) 800-4239, Monday-Friday 7am-7:30pm CT

Better Together

Current Item

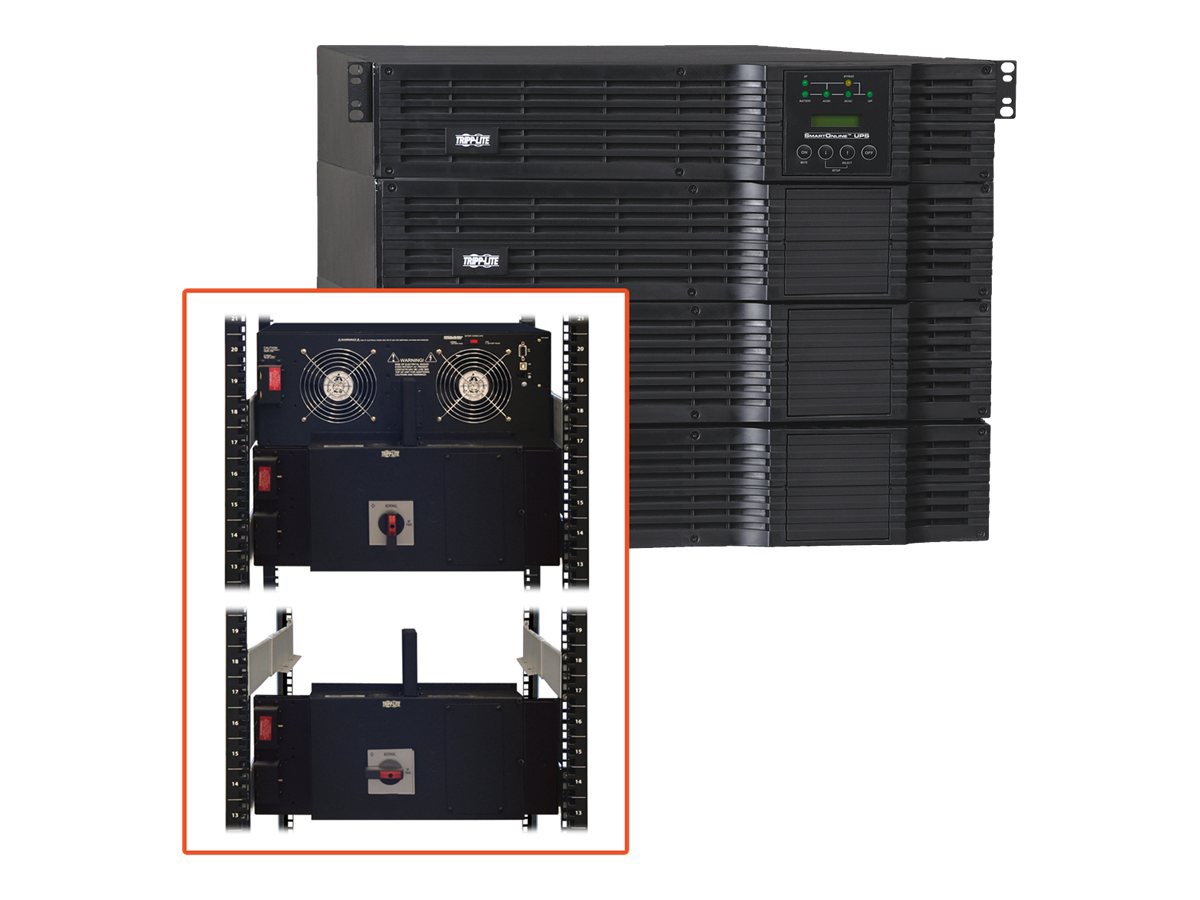

Tripp Lite UPS 12kVA Smart Online 8U Rackmount Hot Swap PDU 208/240/120V
