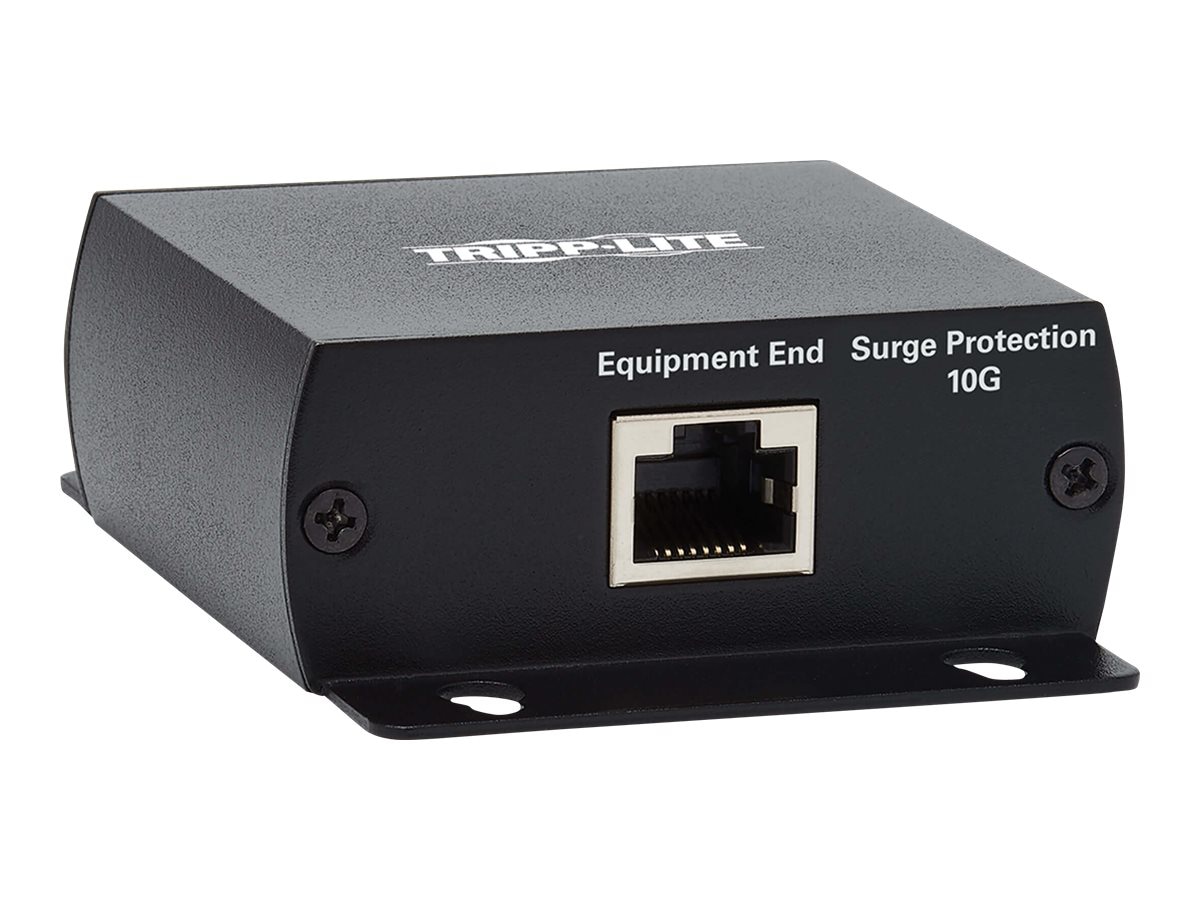

Tripp Lite Surge Protector In-Line for Digital Signage HDBaseT 10G Cat5e/6

Mfg.Part: B110-SP-CAT | CDW Part: 5719516 | UNSPSC: 39121610
Availability: In Stock
Order fulfilled by a CDW partner.
Warranties
Was $64.00
$46.99 Advertised Price
Advertised Price
Product Details
  • Use in your HDBaseT or 10G network to protect network equipment from surges/ ESD & cable discharge events
  • Easy to connect between network source & device using standard Cat5/5e/6 cabling
  • Rapid reaction time under 1 ns helps prevent damage from lightning/power surges
  • Supports Ethernet network data transmission speeds up to 10 Gbps
  • Compliant with Federal Trade Agreements Act (TAA compliant) for GSA Schedule purchases
  • In-Line Network Surge Protector
  • 2 Year Tripp Lite Warranty
View Full Product Details
Better Together
Tripp Lite Surge Protector In-Line for Digital Signage HDBaseT 10G Cat5e/6
Quick View
Total Price:

Product Overview

Main Features
  • Use in your HDBaseT or 10G network to protect network equipment from surges/ ESD & cable discharge events
  • Easy to connect between network source & device using standard Cat5/5e/6 cabling
  • Rapid reaction time under 1 ns helps prevent damage from lightning/power surges
  • Supports Ethernet network data transmission speeds up to 10 Gbps
  • Compliant with Federal Trade Agreements Act (TAA compliant) for GSA Schedule purchases
  • In-Line Network Surge Protector
  • 2 Year Tripp Lite Warranty
Ideal for home/corporate security systems, home theaters, trade shows and other digital signage applications, the B110-SP-CAT protects connected network equipment from damage caused by lightning, electrostatic discharge (ESD) and cable discharge events. Just connect it between your source and network device using Cat5/5e/6 cables, such as Tripp Lite's N001-Series snagless patch cables (sold separately). Note: two B110-SP-CAT surge protectors are required to protect both source and device.

Solid-state silicon-avalanche diode technology features low clamping voltage, providing superior protection against ESD and super-fast response time under one nanosecond. Gas discharge modules on all four twisted pairs protect each wire from surges or spikes by dissipating the voltage transient through a contained plasma gas. The B110-SP-CAT meets the following IEC regulations: IEC 61000-4-2 (ESD) +/- 15kV (Air), +/- 8kV (Contact) and IEC 61000-4-5 (Lightning) 2kA (8/20µs), 6kV (8/20µs).

This in-line surge protector supports data transmission speeds up to 10 Gbps and 4K resolutions up to 3840 x 2160 at 60Hz (HDBaseT) without signal degradation. No software, drivers or external power supply is required. The compact metal housing is designed to endure in applications where static discharge is likely to occur. Mounting hardware is included for convenient installation where needed. Be sure the distance between the B110-SP-CAT and the equipment it is protecting is no more than 300 feet.

The B110-SP-CAT is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
