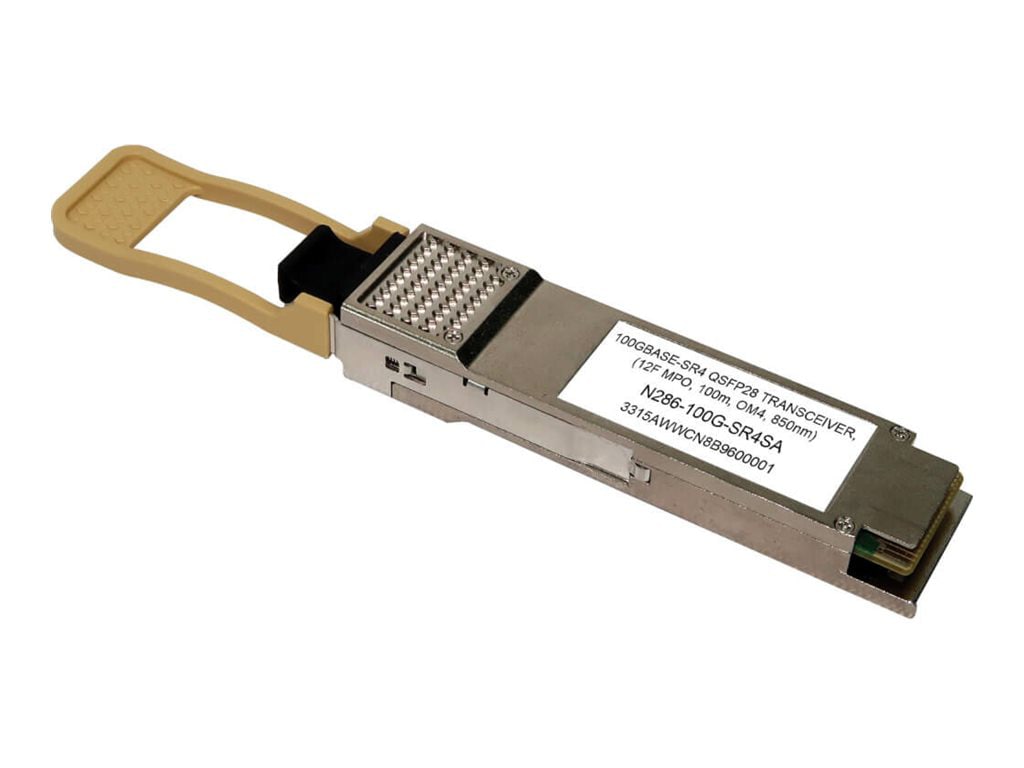

Tripp Lite series 100GBase-SR4 QSFP28 Transceiver Arista QSFP-100G-SR4 100G MPO MMF

Mfg # N286-100G-SR4SA CDW # 7607289

Quick tech specs

  • Connects a multimode Gigabit Ethernet fiber optic network cable to an Arista switch/server’s QSFP28 port
  • Provides 100Gbps throughput up to 100m via multimode fiber cabling
  • Hot-swappable interface lets you install/uninstall without shutting down
  • 3 Year Eaton Warranty
  • QSFP28 transceiver module 100% compatible with Arista's QSFP-100G-SR4 module
  • 12-strand MTP/MPO connector supports 100GBase-SR4 signal at 850nm
  • Supports DDM for monitoring temperature/ realtime operating parameters
View All View More

Know your gear

QSFP28 Transceiver Designed for Connection to Your Arista Network Switch or Server

This QSFP28 transceiver allows you to connect a multimode fiber optic cable to a 100 Gbps network router, server or switch. It transmits data up to 100 meters (328.08-ft.) using an 850 nm wavelength. The zinc housing protects against electromagnetic interference (EMI) and excessive power dissipation.

Functionally Equivalent to Arista QSFP-100G-SR4 Transceiver Module

The MSA-compliant N286-100G-SR4SA functions just like the equivalent Arista QSFP-100G-SR4 transceiver module and is manufactured to meet or exceed Arista specifications. You can use this transceiver with any compatible Arista router, server or switch and receive the same performance as the QSFP-100G-SR4.

Hot-Swappable for Installation Without Network Interruption

This input/output device is fully hot-swappable, so you can install it without a potentially costly 100 Gbps network shutdown or device reboot. Just plug the QSFP28 end of the transceiver into your Arista network device. The other end has an MTP/MPO connector to link with multimode fiber cable (sold separately). A push/pull tab connector is easily accessible in high-density data center applications and makes the plug-and-play transceiver easy to install and remove with one hand.

Supports Digital Diagnostic Monitoring (DDM) for Real-Time Status Monitoring

DDM support lets you keep track of various operating status in real time including transceiver temperature, input and output power, and supply voltage.

This item was discontinued on July 16, 2024
