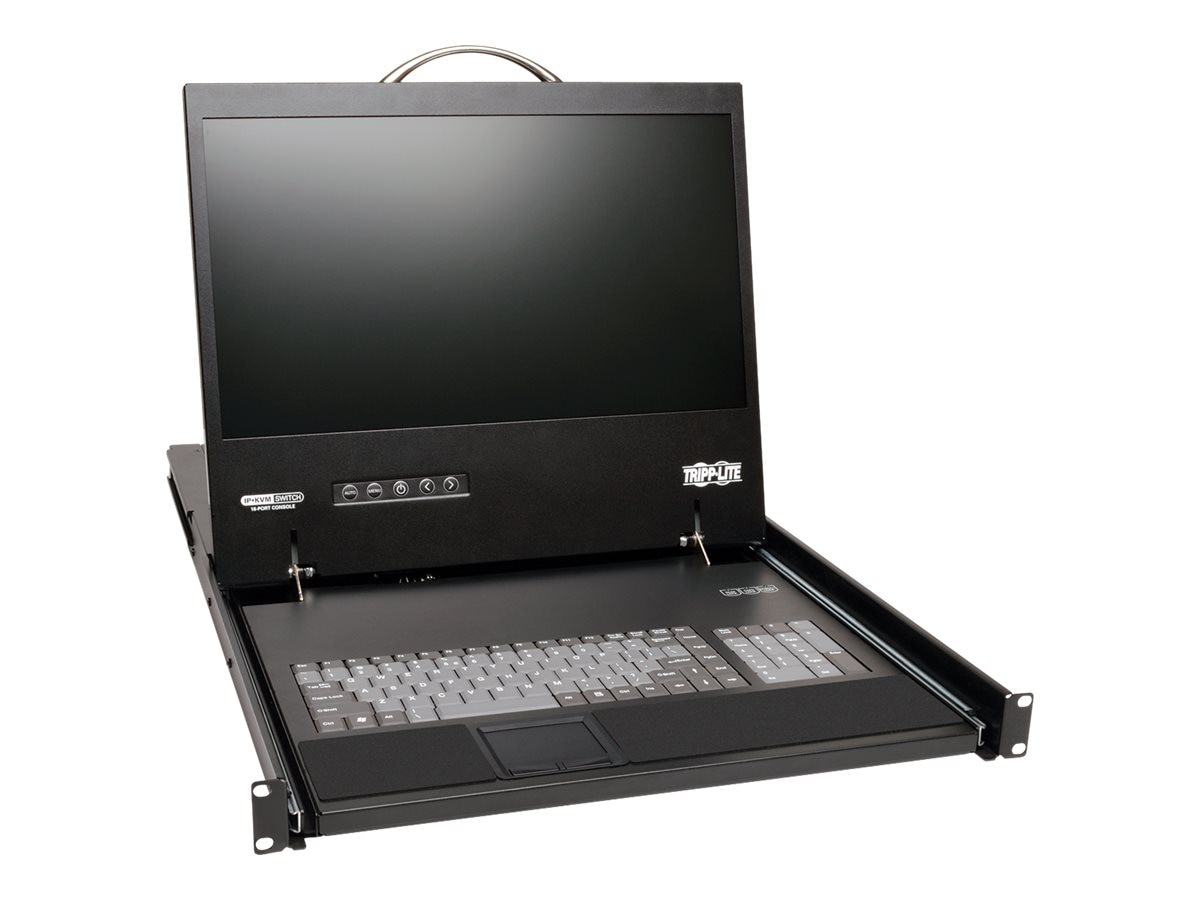

Tripp Lite 8-Port IP Rack Console Cat5 KVM Switch 19" LCD 1+1 User 1URM TAA - KVM console - 19"
Mfg # B070-008-19-IP-INVENERGY
CDW # 5927844
Quick tech specs
- Port IP Rack Console Cat5 KVM Switch 19" LCD 1+1 User 1URM TAA
- 8 ports
- 19"
- 1366 x 768
- 1U
- KVM console with KVM switch
- PS/2, USB
- rack-mountable
- black
Know your gear
Saves Space and Money
? Combines 8-port KVM switch, 19" LCD screen, keyboard and touchpad in a single 1U rack-mountable drawer
? Mounts into 19"-wide rack, 27"-42" deep; to mount in a 2-post rack, use B019-000
? Inexpensive Cat5e/6/6a cabling lets you locate servers up to 100 ft. from the switch
? Use Server Interface Unit B078-101-USB-1 (for USB) with each server that will be connected with Cat5 cable
? For computers with Displayport or HDMI, change to VGA using adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.
IP Remote Access for Fewer Trips to the Server Room
? Remote access means there's no need to travel to the server room or network closet
? Java-based application allows Windows computers to control a target server via web browser from any location over a secured IP connection
? A non-browser client is available that allows Windows computers to remotely access the KVM without the need for a browser and without the need to install Java
? 1 local + 1 remote user can access different ports concurrently; up to 5 users can share a single session
? Supports both IPv4 and IPv6
? Free Management Software available to Access and Control all of your NetCommander IP KVM's (B070 and B072 IP series) from a single interface
Simplifies IT Tasks
? On-screen display, hot keys and remote toolbar for easy use
? 2 serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers
? Add IP PDUs as devices that can be controlled by the KVM; assign individual ports to an IP PDU port to power on/off the server connected to that port
? Virtual Media allows a .iso file to be mounted to a target server and accessed as if it were directly stored on it
? Fast Virtual Media KVM System patented under Pat. No. US 9,417,720
? System-sent messages to SNMP server notify you of LAN failures
? Supports RADIUS and LDAP/S authentication
? Log tracks events on your installation
Large 19" LCD
? Supports video resolutions up to 1366 x 768; 1920 x 1080 remotely
? DDC emulation allows for optimal output to LCD
Advanced Security Features
? Multi-level password protection: create administrator accounts with full access and user accounts with limited access
? Supports TLS 1.2 security protocol
? You can install SSL certificates to ensure secure transactions between web servers and browsers
Expandability and Long-Lasting Reliability
? Flash-upgradeable firmware over the network
? Heavy-duty steel housing stands up to use
TAA Compliant
? Complies with the Federal Trade Agreements Act for GSA Schedule purchases.
