Quick tech specs
  • Basic PDU delivers 100-240V single-phase AC power to multiple loads
  • 14 Outlets (12 C13; 2 C19) 100-240V 16A 1.6/3.8kW
  • Switchless design prevents accidental shutdown
  • 16A circuit breaker
  • PDU/ Power Distribution Unit/ Horizontal PDU/ PDU Strip/ Basic PDU/ rack pdu/ pdus/ datacenter pdu/ data center pdu/ network pdu/ networking pdu
  • C20 input with 10ft cord and 5 adapter
  • Reversible all-metal housing
  • Supports 1U horizontal or 0U vertical mounting in19 in. racks
View All

Know your gear

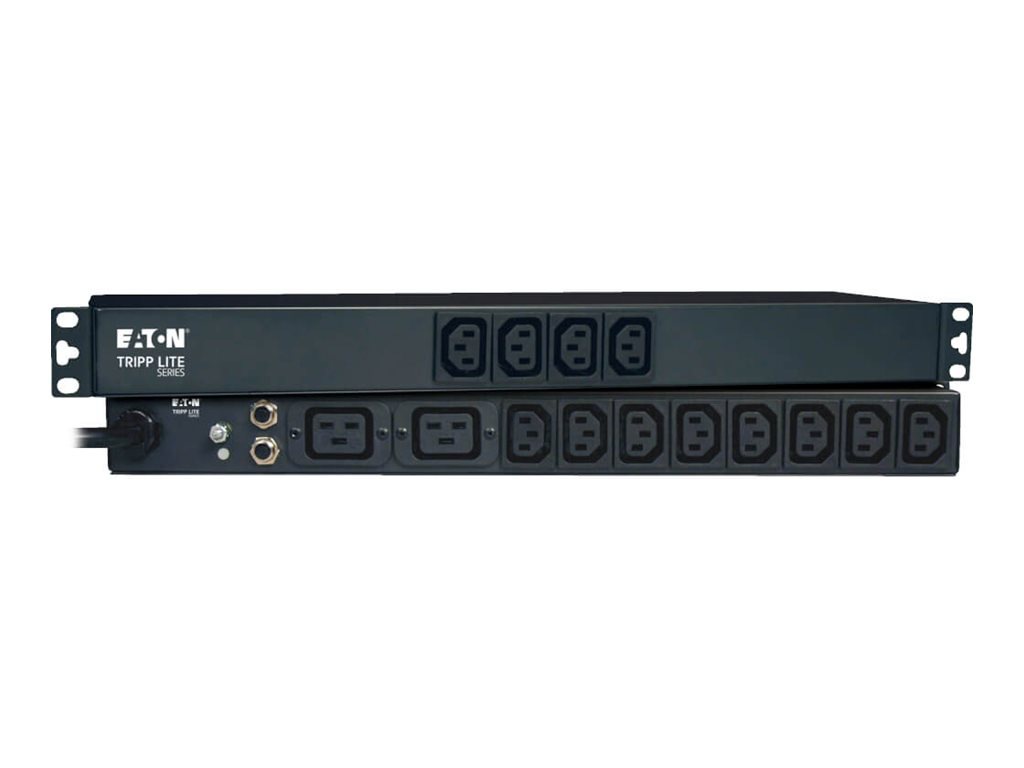

The PDUNV Universal Rackmount PDU offers multi-outlet power distribution for worldwide low and high voltage applications from 100-250V via built-in C19 and C13 outlets. 1U rackmount chassis also supports 0U vertical mount, wall mount and under-counter mount installation in a variety of applications. Attached 10 foot, 3m input cord offers a C20 plug-in connection. Pack of 5 included C19 adapters with secure locking retainer clip enables plug conversion to C14, L6-20P, L5-20P, 5-20P and 5-15P. 16A circuit breaker, grounding lug. Mounting hardware included.

Key Points
PDUNV supports multi-outlet power distribution with worldwide compatiblity for 100-250V applications

Supports standard 1U rackmount installation, with additional support for 0U vertical mount, wallmount and under-counter mount installation

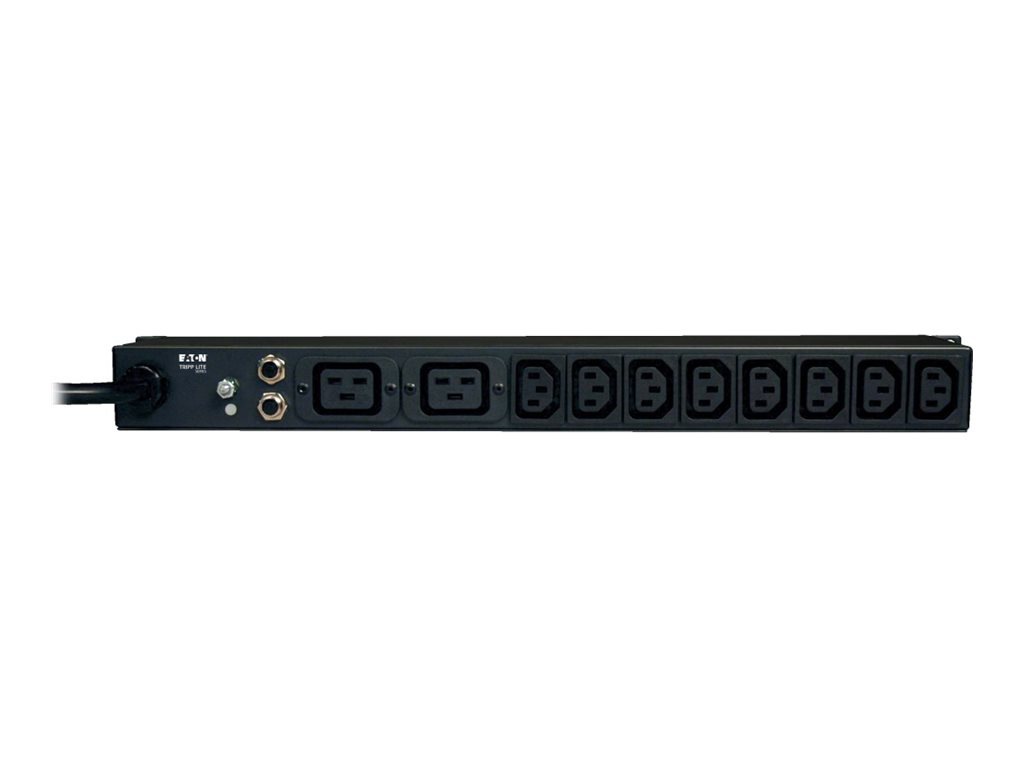

Includes 2 C19 high current and 12 C13 low current outlets

Includes 10 foot, 3m attached input power cable with C20 input plug-in connection (connects to C19 100-250V)

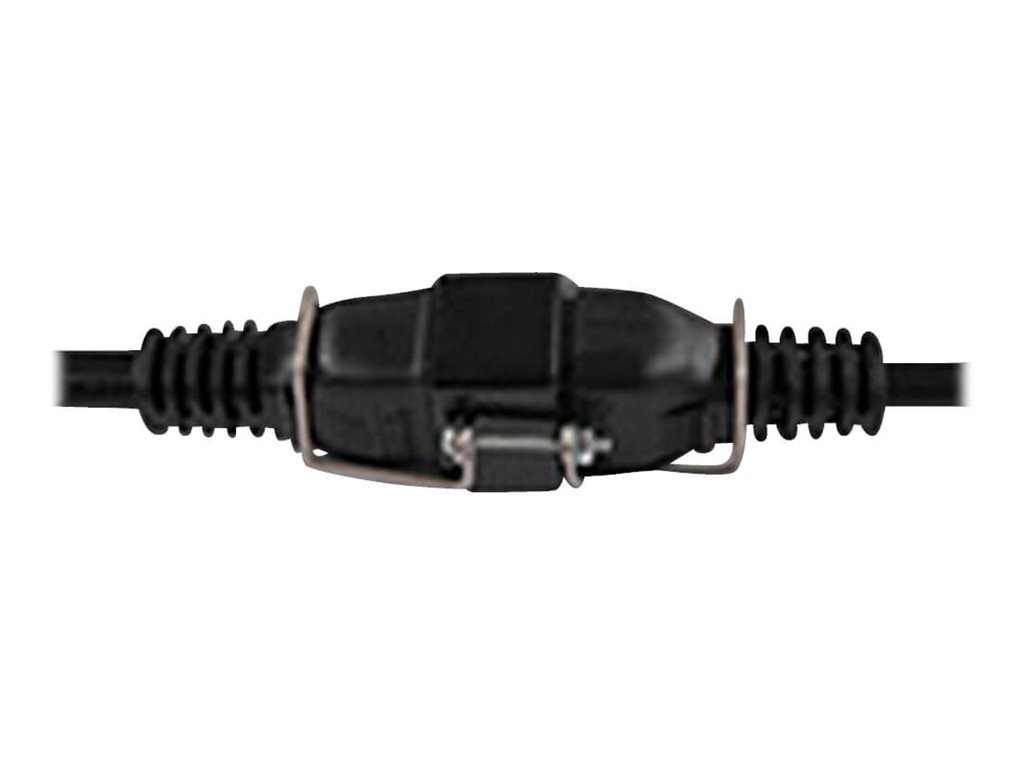

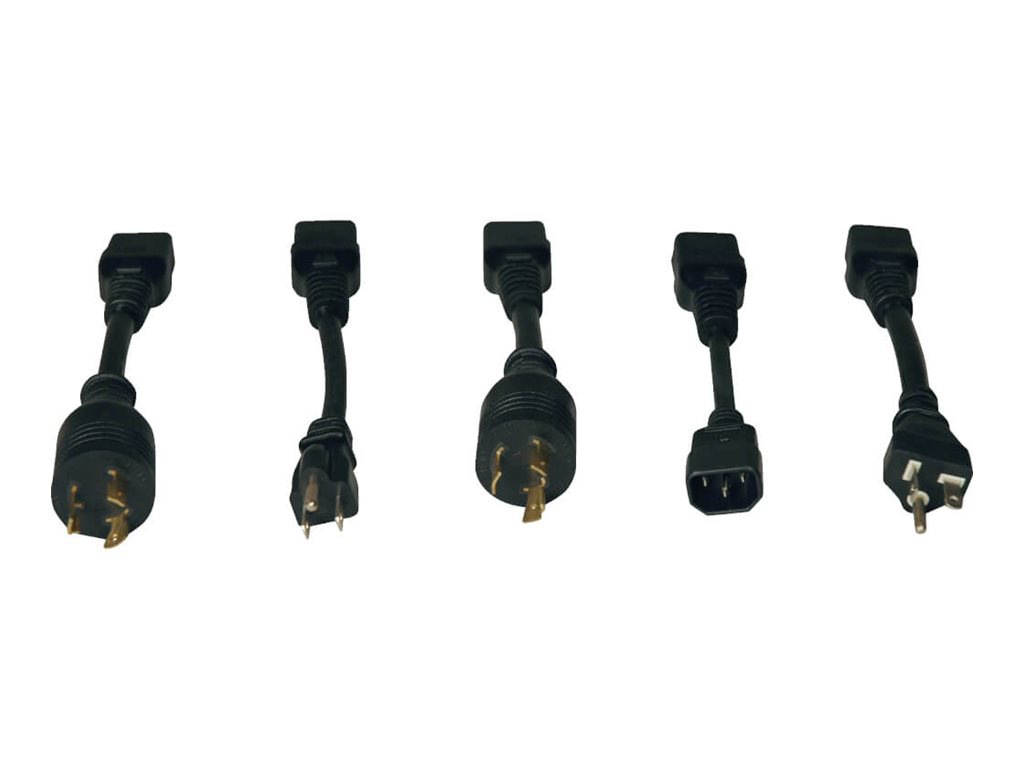

Pack of 5 included C19 adapters with locking retainer clip enables plug conversion to C14 (connects to C13 100-250V), L6-20P (connects to L6-20R 20A 208/240V), L5-20P (connects to L5-20R 20A 120V), 5-20P (connects to 5-20R 20A 120V) and 5-15P (connects to 5-15R 15A)

Unfiltered electrical pass-through reliably distributes AC power from UPS or generator to supported equipment

Back panel grounding lug

16A circuit breaker

Package Includes
1U rackmount PDU

Mounting hardware

Set of 5 plug adapters

User manual with warranty information
