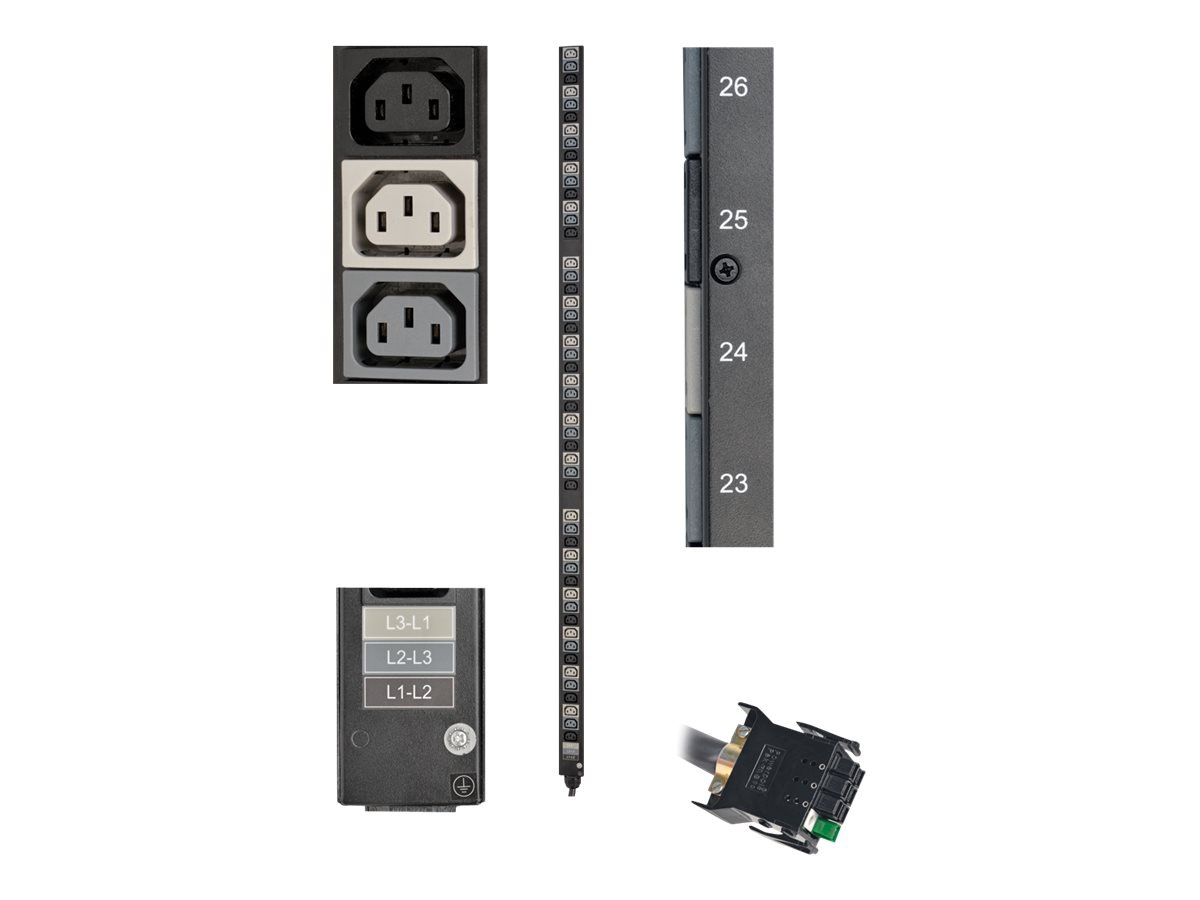

Tripp Lite PDU 8.6/12.6kW 3-Phase Vertical PDU Strip 208V Outlets (51 C13)

Mfg.Part: PDU3V51 | CDW Part: 4176598 | UNSPSC: 39121017
Availability: 5-7 days
Warranties
Was $551.78
$335.99 Advertised Price
Advertised Price
Product Details
  • Required rack-mounted vertical outlet strip accessory for select Tripp Lite 3-phase auto-transfer switch (ATS) PDUs
  • Distributes AC power to high-density equipment racks in data centers & server rooms
  • 51 single-phase 12A IEC-C13 outlets
  • Supports up to 8.6 or 12.6kW total output
  • Supports 0U toolless vertical rack mounting & simplifies load balancing with interlaced color-coded outlets
  • Rack-mountable power distribution strip/ PDU strip/ 0U Rack-Mount
  • 2 Year Tripp Lite Warranty
View Full Product Details
Better Together
Tripp Lite PDU 8.6/12.6kW 3-Phase Vertical PDU Strip 208V Outlets (51 C13)
Quick View
Total Price:

Product Overview

Main Features
  • Required rack-mounted vertical outlet strip accessory for select Tripp Lite 3-phase auto-transfer switch (ATS) PDUs
  • Distributes AC power to high-density equipment racks in data centers & server rooms
  • 51 single-phase 12A IEC-C13 outlets
  • Supports up to 8.6 or 12.6kW total output
  • Supports 0U toolless vertical rack mounting & simplifies load balancing with interlaced color-coded outlets
  • Rack-mountable power distribution strip/ PDU strip/ 0U Rack-Mount
  • 2 Year Tripp Lite Warranty
The PDU3V51 8.6/12.6kW 3-Phase Vertical PDU Outlet Strip is a required accessory for Tripp Lite's PDU330AT6L15, PDU330AT6L2130, PDU330AT6L1530, PDU350AT6H50 and other 3-phase ATS PDUs that specify compatibility with this model. It's ideal for high-density equipment racks in data centers and server rooms.

When used with 208V ATS PDUs with a 35A input rating, the PDU3V51 supports up to 12.6kW total output with 20A maximum full balanced load per phase combination output bank(L1-L2, L2-L3, L3-L1). When used with 208V ATS PDUs with a 24A input rating, it supports up to 8.6kW total output with 13.9A maximum full balanced load per phase combination output bank.

The 51 single-phase 12A C13 outlets receive power from the connected ATS PDU. The outlets are interlaced to help you balance loads by spreading connections across the phase combinations(L1-L2, L2-L3, L3-L1) throughout the rack. Each outlet is numbered and color-coded to help you keep track of connected devices and which phase combination powers them. The 2.5-foot power cord with eight-position plug connects directly to the ATS PDU's rear outlet.

The PDU3V51's rugged all-metal housing mounts in compatible racks in seconds with no tools needed. Vertical 0U installation reduces cable clutter and improves airflow through the rack to keep your equipment cool and functioning at its peak.
