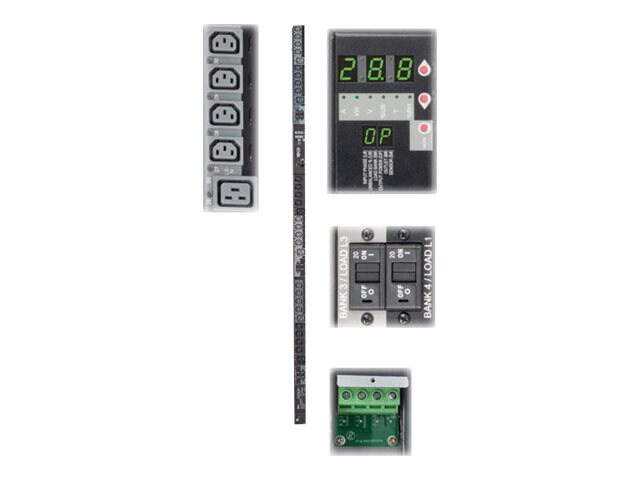

Tripp Lite PDU 3-Phase Switched 240V/230V/220V 28.8kW C13 C19 Vertical 0URM

Mfg.Part: PDU3XVSRHWB | CDW Part: 3371186 | UNSPSC: 39121017
Product Details
  • 28.8kW 3-phase switched PDU 240/230/220V Hardwired 0U vertical w/ 30 outlet
  • PDU/ Power Distribution Unit/ PDU Strip/ Switched PDU/ rack pdu/ pdus/ datacenter pdu/ network pdu/ Vertical PDU/ Hardwired PDU
  • Reports voltage and load per-outlet or phase via Ethernet interface
  • 30 outlets (24 C13/ 6 C19); Hardwired 3 phase input
  • Digital display reports detailed status information
  • Toolless button-mount installation
  • TAA-Compliant
View Full Product Details

Request Pricing

This item is currently unavailable to purchase online.

Please contact us to place this order

Contact Sales Assistance
(800) 800-4239, Monday-Friday 7am-7:30pm CT
Better Together
Tripp Lite PDU 3-Phase Switched 240V/230V/220V 28.8kW C13 C19 Vertical 0URM
Quick View
Total Price:

Product Details

Main Features
  • 28.8kW 3-phase switched PDU 240/230/220V Hardwired 0U vertical w/ 30 outlet
  • PDU/ Power Distribution Unit/ PDU Strip/ Switched PDU/ rack pdu/ pdus/ datacenter pdu/ network pdu/ Vertical PDU/ Hardwired PDU
  • Reports voltage and load per-outlet or phase via Ethernet interface
  • 30 outlets (24 C13/ 6 C19); Hardwired 3 phase input
  • Digital display reports detailed status information
  • Toolless button-mount installation
  • TAA-Compliant
Tripp Lite 3 phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption per-phase or per-receptacle. PowerAlert interface supports remote control and custom notification of user-specified conditions via email, secure web, SNMP, Telnet or SSH interface. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps per-phase or per-receptacle can be displayed locally via visual meter or remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip. Highly accurate current metering offers +/-1% billing-grade current monitoring and recording ability for each output phase, breakered load bank and individual outlet.

Hardwire Input Models: #6AWG (13.3mm2) copper wiring with ferrules is recommended for AC input terminal connections. Each input terminal connection should be torqued to 12.2 inch-pounds.

Caution: Improperly sized wiring, inadequate torque or use of non-copper wiring can result in overheating of input terminal connections.
