Tripp Lite PDU 3-Phase Switched 208V 8.6kW IEC-309 21 C13; 3 C19 0URM

Mfg.Part: PDU3VSR10G30 | CDW Part: 2289440 | UNSPSC: 39121017
Product Details
  • Phase switched PDU 208V 0U vertical with 24 outlets and 10ft cord
  • PDU / Power Distribution Unit / PDU Strip / Switched PDU / rack pdu / pdus / datacenter pdu / network pdu / Vertical PDU
  • Reports voltage frequency and load per-outlet/phase via Ethernet interface
  • 24 Outlets (21 C13 / 3 C19); IEC-309 Blue 30A (3P+E) input 10ft cord
  • Visual current meter and toolless button-mount installation
  • Temperature humidity and contact closure monitoring options
View Full Product Details

Request Pricing

This item is currently unavailable to purchase online.

Please contact us to place this order

Contact Sales Assistance
(800) 800-4239, Monday-Friday 7am-7:30pm CT
Better Together
Tripp Lite PDU 3-Phase Switched 208V 8.6kW IEC-309 21 C13; 3 C19 0URM
Quick View
Total Price:

Product Overview

Main Features
  • Phase switched PDU 208V 0U vertical with 24 outlets and 10ft cord
  • PDU / Power Distribution Unit / PDU Strip / Switched PDU / rack pdu / pdus / datacenter pdu / network pdu / Vertical PDU
  • Reports voltage frequency and load per-outlet/phase via Ethernet interface
  • 24 Outlets (21 C13 / 3 C19); IEC-309 Blue 30A (3P+E) input 10ft cord
  • Visual current meter and toolless button-mount installation
  • Temperature humidity and contact closure monitoring options

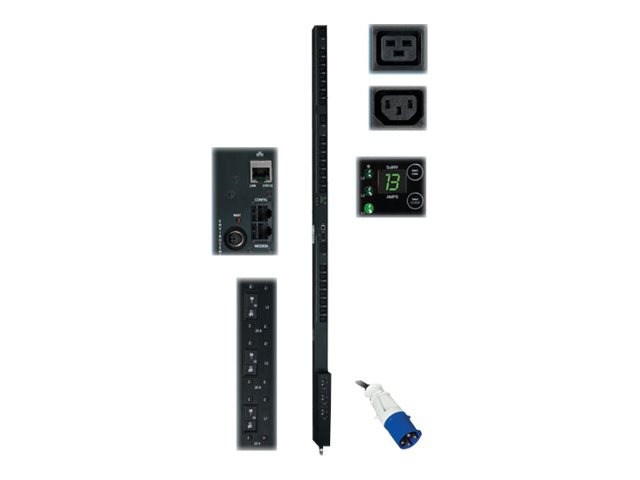

PDU3VSR10G30 Switched 3 phase 208V Zero U vertical rack PDU supports 8.6kW total output capacity. Includes 10 ft. / 3m input cord with IEC-309 Blue 30A (3P+E) 208V 3 phase input plug and 24 208V individually controllable outlets arranged in 3 separately breakered single phase output load banks. Each single-phase output loading bank contains 8 outlets (7 C13, 1 C19). Visual meter with scroll button and PowerAlert remote monitoring interface enables real-time current monitoring for each output phase or individual receptacle. Supports 0U vertical rackmount installation with included mounting accessories. Toolless button-mount installation supported in compatible racks. Included cord retention brackets keep vital network equipment plugged in and continuously powered.




Tripp Lite 3 phase Switched PDU / Power Distribution Unit enables a variety of advanced network control and monitoring functions by giving IT managers the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption per-phase or even per-receptacle. PowerAlert interface supports custom notification and control of user-specified remote conditions via email, secure web, SNMP, Telnet or SSH interface. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed per user-defined power-up and power-down sequences to ensure proper operation of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent powering of unauthorized hardware. PDU output current consumption in amps per-phase or per-receptacle can be displayed locally via visual meter and can be monitored via the web/network interface, with user-defined alarms to warn of potential overloads before critical IT mains or branch breakers trip. Supports in-rack environmental and security monitoring for advanced configurations with optional ENVIROSENSE temperature / humidity probe and rack access notification for up to 4 door sensors (SRSWITCH) or other user-supplied contact-closure sensors. Lighted display with scroll-button offers power consumption in amps for each phase or receptacle, IP-address self-identification and 180 degree display rotation for overhead or raised floor power feeds. Supports real-time monitoring of all reported functions with support for user-specified alarm and notification thresholds. Fully compatible with PowerAlert Network Management System / NMS Software, available via FREE download from www.tripplite.com
