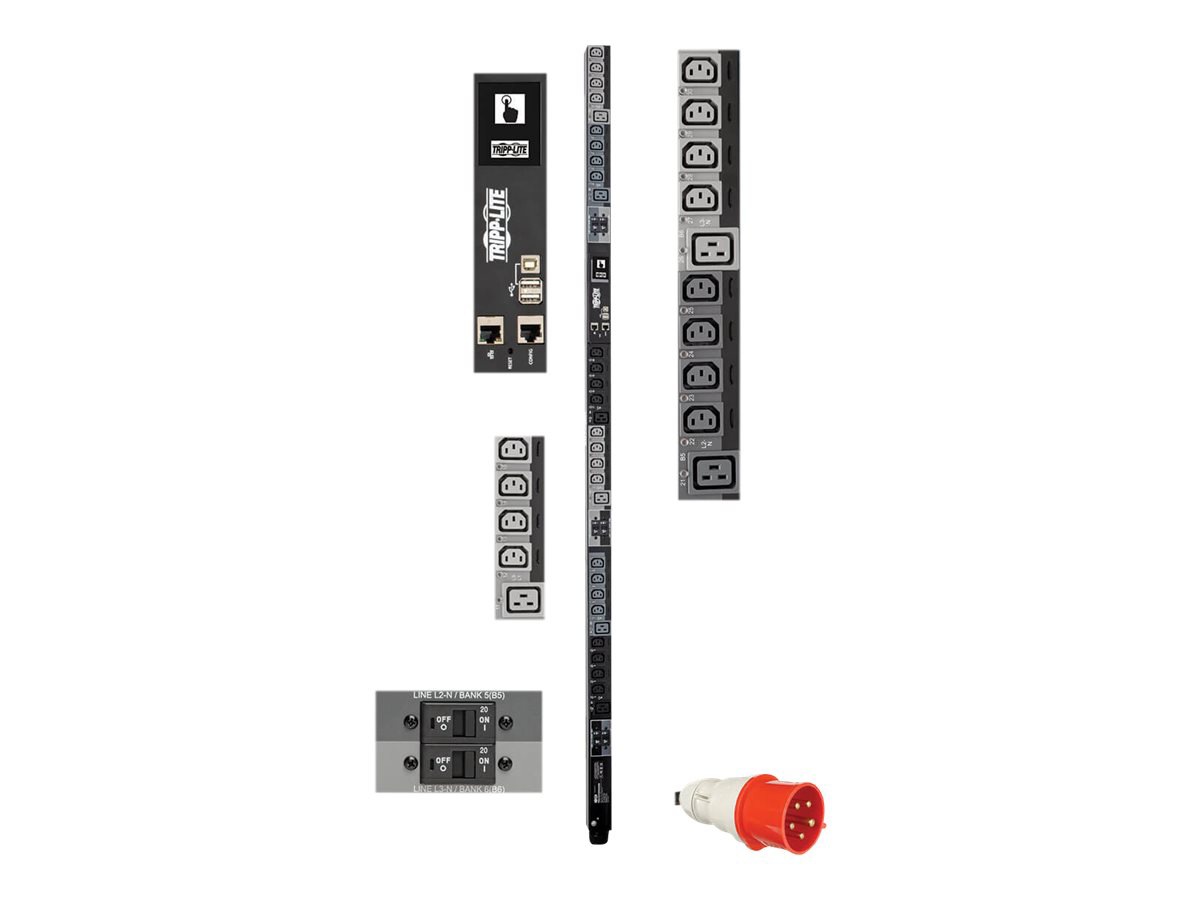

Tripp Lite PDU 3-Phase Switched 17.3kW 240V 24 C13 6 C19 30A Touchscreen 0U

Mfg.Part: PDU3XEVSR6G30B | CDW Part: 5252851 | UNSPSC: 39121017
Availability: Call
P:(800)800-4239
Mon-Friday 7am-7pm CT
Warranties
Was $2,352.60
$1,433.99 Advertised Price
Advertised Price
Lease Option ($43.34/month) Lease Price Information
Note: Leasing is available to businesses only. Leasing is not available to individuals.
Product Details
  • 17.3kW 3-phase PDU monitors and manages AC power. Built-in Java-free network interface helps you remotely monitor load levels to prevent overloads that cause downtime
  • 30 individually controllable outlets—24 C13/6 C19
  • Built-in LX Platform interface for remote access 24/7
  • IEC 309 30A Red 415V PDU input with 1.8m AC power cord
  • Touchscreen LCD with mobile access option via QR code
  • Power Distribution Unit / Power Extension / Power Strip
  • 2 Year Warranty
View Full Product Details
Better Together
Tripp Lite PDU 3-Phase Switched 17.3kW 240V 24 C13 6 C19 30A Touchscreen 0U
Quick View
Total Price:

Product Overview

Main Features
  • 17.3kW 3-phase PDU monitors and manages AC power. Built-in Java-free network interface helps you remotely monitor load levels to prevent overloads that cause downtime
  • 30 individually controllable outlets—24 C13/6 C19
  • Built-in LX Platform interface for remote access 24/7
  • IEC 309 30A Red 415V PDU input with 1.8m AC power cord
  • Touchscreen LCD with mobile access option via QR code
  • Power Distribution Unit / Power Extension / Power Strip
  • 2 Year Warranty
The PDU3XEVSR6G30B 17.3kW 3-Phase Switched Power Distribution Unit provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime. The 0U PDU features 30 switched 240V outlets (24 C13 and 6 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 1.8-meter (six-foot) cord with IEC 309 30A Red 415V plug connects the PDU to a compatible AC power source, generator or protected UPS. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2c, SNMPv3, Telnet, SSH, FTP, DHCP and NTP. A color touchscreen LCD lets you toggle between menus to monitor input current level per phase, output current per load bank and per outlet with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the switchable PDU through a mobile device.

Distributes, Monitors and Manages Network-Grade AC Power. 17.3kW 415/240V switched PDU with 3-phase input. Recommended for network applications requiring individual outlet control, load shedding and remote monitoring of critical network components. IEC 309 30A Red 415V plug with 1.8m (6 ft.) cord connects to compatible AC power source. Firmware upgrades support future product enhancements. 30 Switched 240V Outlets Distribute AC Power. 24 C13 and 6 C19 outlets split into 6 separately breakered load banks. Individual outlets can be remotely controlled to power up, power down, reboot or lock out devices. Plug-lock insert sleeves prevent cables from becoming accidentally disconnected. Color Touchscreen LCD. Reports network data, including IP address, input current level per phase, and output current per load bank and per outlet with ±1% billing-grade accuracy. Generates unique QR code for read-only access to PowerAlert Device Manager via mobile device. Full access available by logging into PowerAlert Device Manager via browser as user with read/write credentials. Built-In LX Platform Interface . Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH. Supports 10/100 Mbps auto-sensing for communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. No Java required. Broad Communications Compatibility. Supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2c, SNMPv3, Telnet, SSH, CLI, FTP, DHCP and NTP. Supports automatic and manual assignment of IP address. Reduce Service Calls with Auto Probe Autonomous Device Management.

The Auto Probe feature (Firmware 15.5.2 and greater) checks the connectivity status of any networked device and automatically takes one or more user-configured actions if the device fails to respond; actions include outlet reboot, set SNMP traps, SNMP OID sets, and even script execution when used in conjunction with the Tripp Lite PowerAlert Network Shutdown Agent (PANSA).

Tiered access allows administrator and guest to log in via web browser. Immediate alert notifications via email or SNMP traps. Supports user-specified alarm notification thresholds. Real-time clock backup maintains day/date even if PDU is unpowered. Easy 0U Installation in EIA-Standard 19 in. Racks. Mounts vertically using included toolless buttons or rack-mounting brackets. Included PDUMVROTATEBRKT allows mounting with rear-facing outlets. TAA-Co
