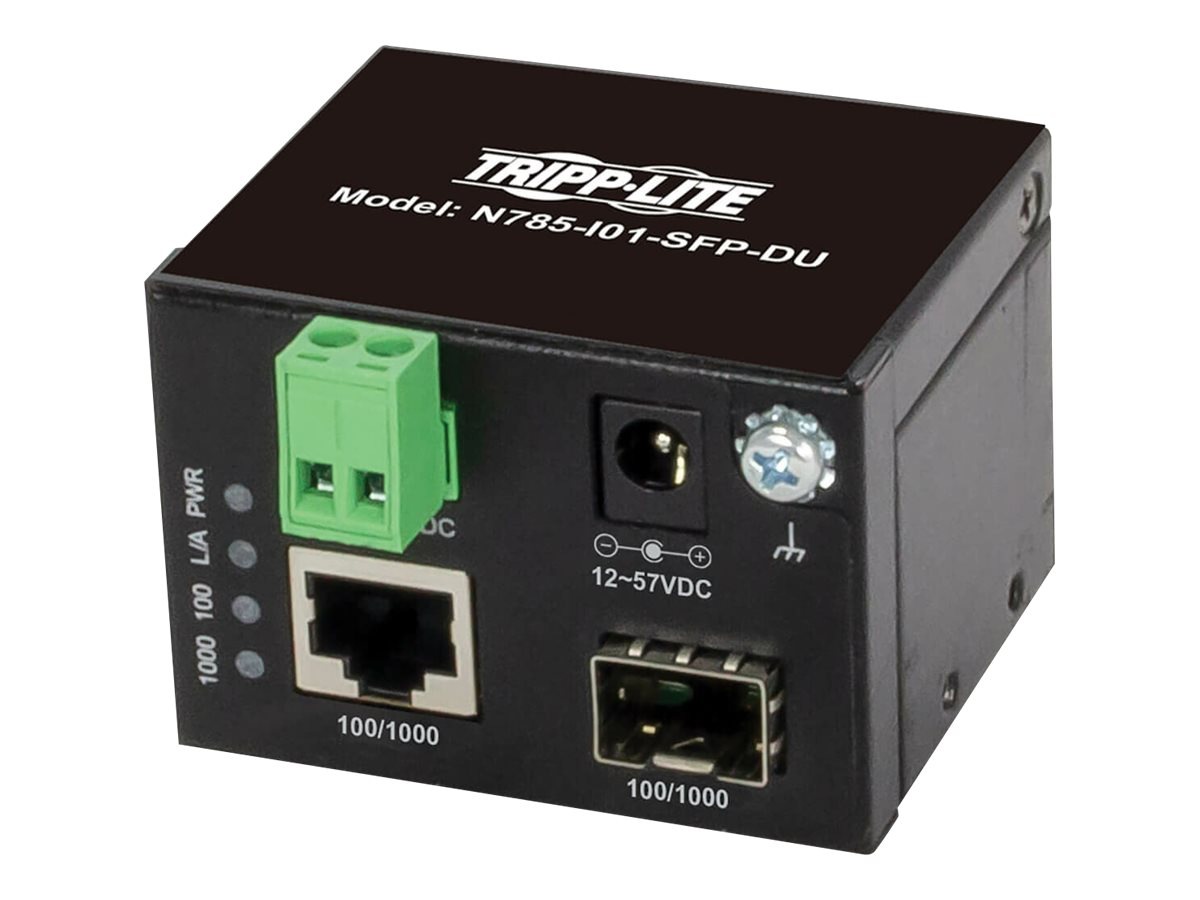

Tripp Lite Unmanaged Industrial Gigabit Copper to Fiber Media Converter - 10/100/1000 Mbps, RJ45/SFP, -40° to 75°C, DC

Mfg # N785-I01-SFP-DU CDW # 6793779

Quick tech specs

  • Extends a 10/100/1000 Mbps Gigabit Ethernet network connection over fiber optic cable using your choice of SFP transceiver
  • Automatic MDI/MDI-X configuration connects devices w/out crossover cabling
  • Primary/redundant power supply ports allow connection of dual DC power sources
  • Tripp Lite is now a part of Eaton
  • Customizable converter extends up to 1000 Mbps (1Gbps) of data via open SFP port
  • IP30 aluminum housing w/stands operating temps of -40 to 75C
  • TAA Compliant Media Converter
View All View More

Know your gear

Customize a Network Extension over Fiber Optic Cable

This unmanaged media converter works with a variety of SFP transceivers to convert a copper Gigabit Ethernet signal to fiber optic and extend it to a second network device. The customizable SFP port supports both singlemode and multimode transceivers, allowing your network connection to reach hubs, switches and other devices located farther away than copper cabling's 100-meter limit. Auto-negotiation and automatic MDI/MDI-X configuration seamlessly connect devices without crossover cabling.

LEDs Indicate Installation Performance and Diagnostic Functions

Easy-to-read LEDs on the side of the unit indicate essential information, including network speed, connection status and unit power. The included 12–57VDC terminal block provides primary and secondary power inputs. You can also power the media converter with a user-supplied 12VDC power supply.

Protective Metal Housing Built to Withstand a Variety of Hazards

The IP30 industrial-grade aluminum case is protected from entry by tools, wires and other solid objects greater than 2.5 millimeters in diameter. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit). It is protected from electrostatic discharge (ESD), radio frequency interference (RFI) and power surges. Hardware is included for DIN mounting.

TAA-Compliant for GSA Schedule Purchases

The N785-I01-SFP-DU is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

This item was discontinued on July 12, 2024
