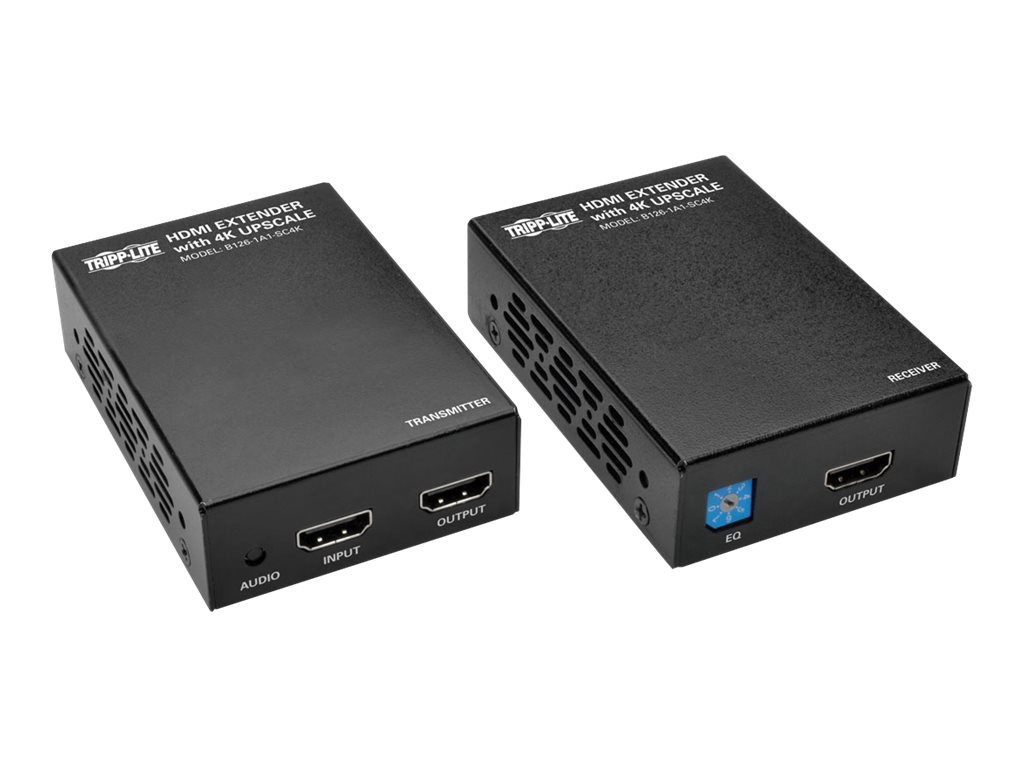

The Tripp Lite B126-1A1 active extender kit is the perfect solution for those who need to extend a HDMI signal over a long distance with a single Cat5e/6 patch cable. In addition to connecting a remote display, the local unit also provides a HDMI output for connecting to a local monitor. When using 24Awg, Solid Wire Cat5e/6 cable (Tripp Lite N202-Series), the B126-1A1 can extend a 1080i (60Hz) signal up to 200 ft.; or, a 1080p (60Hz) signal up to 150 ft.. The remote unit comes with a built-in Equalization setting, which allows for adjustment of the video image. No need to make separate purchases; the B126-1A1 kit comes with both local and remote units. Both stereo audio and 7.1 channel surround sound are supported, as well as HDCP protected content. Mounting hardware is included for both the local and remote units, allowing them to be rackmounted, wallmounted or pole mounted. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. 1 year limited warranty.
Key Features
Two piece kit includes both local and remote units
Extends a 1080i (60Hz) signal up to 200 ft.; or, a 1080p (60Hz) signal up to 150 ft. when using 24Awg, Solid Wire Cat5e/6 cable (Tripp Lite N202-Series)
Remote unit features a built-in Equalization setting, allowing for adjustment of the video image
HDCP compatible
Compatible with both stereo audio and 7.1 channel surround sound audio
Mounting hardware included for both the local and remote units, allowing them to be rackmounted, wallmounted or pole mounted
Local unit includes a HDMI output for connecting a local monitor
No software or drivers required
Compatible with all operating systems
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
1 year limited warranty
Package Includes
B126-1A1 local unit
B126-1A1 remote unit
Screwdriver for adjustment of Equalization
(x2) Mounting hardware
(x2) External power supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
Owner's manual
