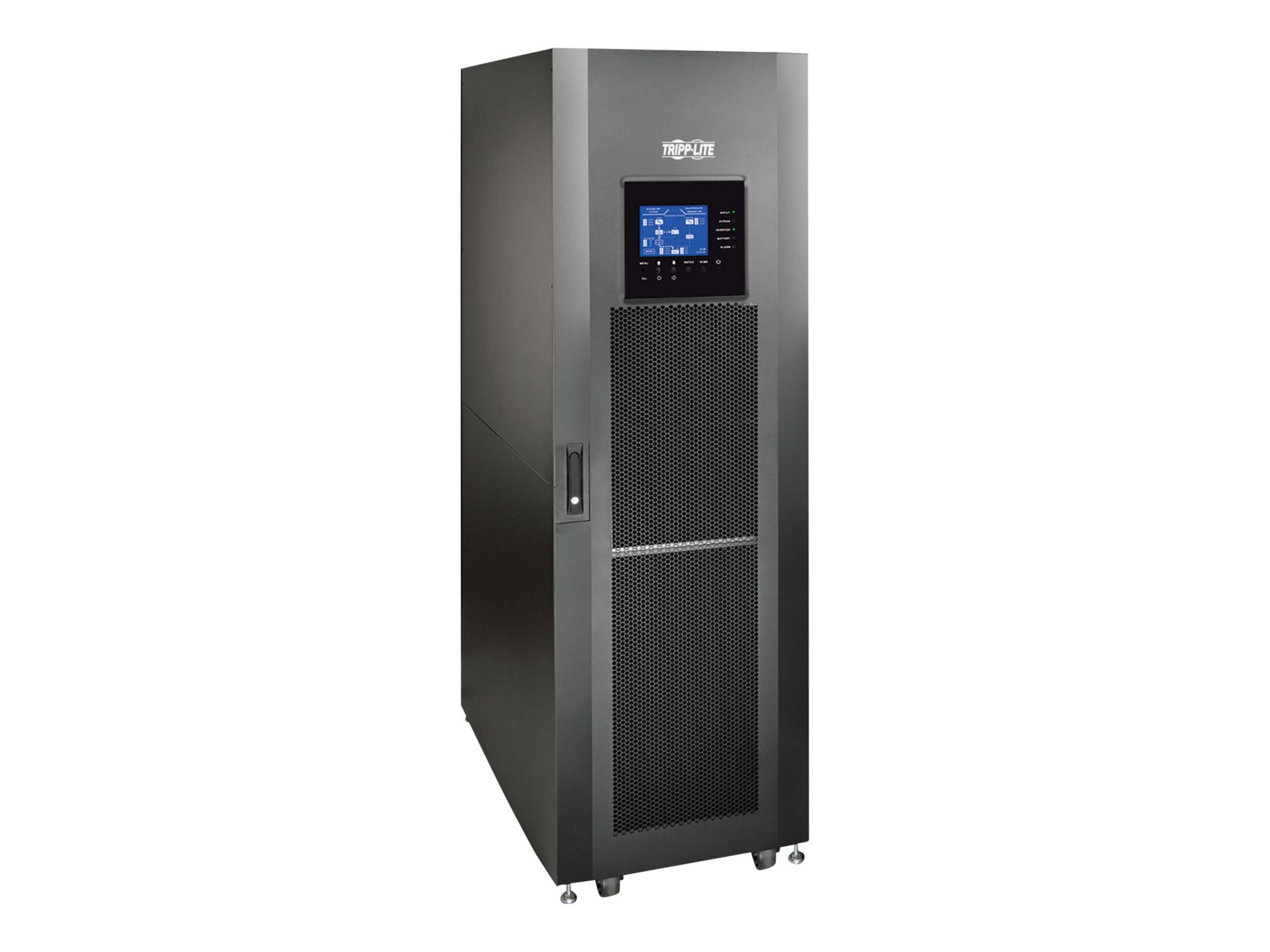

Tripp Lite 80kVA Smart Online 3-Phase UPS 208/120V Medium Frame Scalable

Mfg.Part: SV80KM4P0B | CDW Part: 5495810 | UNSPSC: 39121011
Availability: Call
P:(800)800-4239
Mon-Friday 7am-7pm CT
Warranties
Was $52,693.70
$32,565.99 Advertised Price
Advertised Price
Lease Option ($938.23/month) Lease Price Information
Note: Leasing is available to businesses only. Leasing is not available to individuals.
Product Details
  • 3-phase 60kVA UPS system offers network-grade power protection in a highly configurable,modular and scalable small-chassis rack-width frame
  • Fully configured for 80kVA capacity or 60kVA with N+1 fault tolerance
  • Economy mode option helps reduce operating and cooling costs
  • Pre-installed WEBCARDLX network interface for 24/7 remote access
  • DSP/IGBT technology and 1% output voltage regulation
  • No internal batteries and requires external batteries to operate
  • uninterruptible power supply
View Full Product Details
Better Together
Tripp Lite 80kVA Smart Online 3-Phase UPS 208/120V Medium Frame Scalable
Quick View
Total Price:

Product Overview

Main Features
  • 3-phase 60kVA UPS system offers network-grade power protection in a highly configurable,modular and scalable small-chassis rack-width frame
  • Fully configured for 80kVA capacity or 60kVA with N+1 fault tolerance
  • Economy mode option helps reduce operating and cooling costs
  • Pre-installed WEBCARDLX network interface for 24/7 remote access
  • DSP/IGBT technology and 1% output voltage regulation
  • No internal batteries and requires external batteries to operate
  • uninterruptible power supply
Supports 208/120V or 220/127V AC 50/60Hz Wye 4-wire plus Earth hardwire input and output wiring. Dual hardwire input design enables operation from up to 2 power sources. Network-grade sine-wave AC output with 1% output voltage regulation and less than 1% output total harmonic distortion. Tested to UL 1778 (U.S.), CSA (Canada) and NOM (Mexico) standards. High 0.9 power factor for maximum power to the connected load.

Allows full remote access for power monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. Supports 10/100 Mbps auto-sensing for communication with an Ethernet network. Optional EnviroSense2 sensors (sold separately) enable site monitoring of temperature, humidity and contact-closure status. No Java required.

Modular configuration with hot-swappable power modules, and fast maintenance with zero downtime. Comes fully configured for 80kVA total capacity or 60kVA with N+1 fault tolerance. Supports external ±120VDC battery options for extended runtimes.

Up to 99% efficient in optional economy mode to lower operating and cooling costs.

Enables full continuous online operation during brownouts as low as 121V and overvoltages up to 253V. Regulates output voltage within 1% of the selected nominal output voltage in on-line double-conversion mode.

Provides for less than 2% input total harmonic distortion (THDi) to support 1:1 generator sizing and prevent the need to oversize generator systems relative to UPS capacity.

Keep connected equipment operational during routine maintenance or critical power module failure.
