- 60kVA SmartOnline Modular 3-Phase Intelligent/ True On-Line UPS System provides 100% system availability with N+1 modular architecture & 1+1 parallel capability
- 60,000 VA 3-phase tower UPS
- 3-phase hardwire (220/380V 230/400V or 240/415V AC/ 3-phase/ 4-wire + ground/ wye) input/output
- IGBT technology & zero transfer time/ on-line/ double-conversion operation
- 3 phase UPS/ 3-phase uninterruptible power supply/ expandable runtime/ low THDi/ N+1 redundant
- 2 Year Tripp Lite Warranty

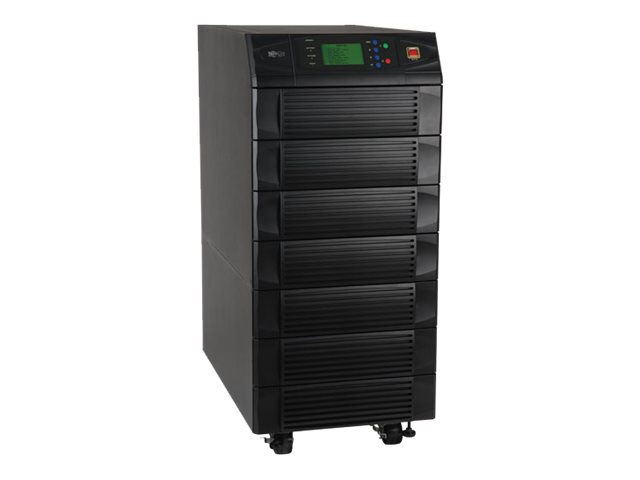

Tripp Lite's SU60KX(60kVA) SmartOnline Modular 3-Phase Intelligent, True On-Line UPS System provides 100% system availability with N+1 modular architecture and 1+1 parallel capability. In N+1 configuration, the SU60KX provides three self-contained, redundant 20kVA power modules that can be hot-swapped(load remaining powered) if maintenance is required. In 1+1 configuration, two SU60KX models connected in parallel can provide fail-safe redundancy(two 60kVA models supporting a 60kVA load) or increased capacity(two 60kVA models supporting a 120kVA load). Large capacity 60,000VA/48,000W UPS continually converts incoming AC power into filtered DC power, and then resynthesizes it back into AC power with a pure sine wave. Perfectly regulated, continuous sine wave output with zero transfer time assures compatibility with all equipment types. High input power factor, advanced IGBT inverter technology and Digital Signal Processor(DSP) technology produce less than 3% input total harmonic distortion(THDi). With low THDi, generators run cooler and last longer, allowing managers to save installation costs by installing a generator with a capacity equal to the equipment load(1:1 ratio). Extremely efficient operation(up to 97%) saves money by lowering electricity consumption. Hardwire input and output connections support a variety of permanent or PDU-style power connections. Frequency is 50 or 60 Hz(auto-selectable). SU60KX power modules are housed in a single small-footprint tower compartment. Battery modules(Models BP480V26B and BP480V40C) are housed in a separate stand-alone hardwired external battery compartment(required for UPS operation/backup battery support; order separately). Battery runtime can be extended with additional stand-alone hardwired external battery modules. A manual bypass breaker and an automatic bypass function ensure 100% availability of connected equipment by safely passing through AC power if the UPS requires maintenance.
