Quick tech specs
  • 40kVA SmartOnline Modular 3-Phase Intelligent/ True On-Line UPS System provides 100% system availability with N+1 modular architecture and 1+1 parallel capability
  • 3-phase hardwire (220/380V 230/400V or 240/415V AC 3-phase/ 4-wire + ground/ wye) input/output
  • expandable runtime/ 3 phase UPS system/ 3-phase uninterruptible power supply/ DB9/ LCD/ LED
  • 40,000 VA 3-phase tower UPS
  • IGBT technology and zero transfer time/ on-line double-conversion operation
  • 2 Year Tripp Lite Warranty
View All

Know your gear

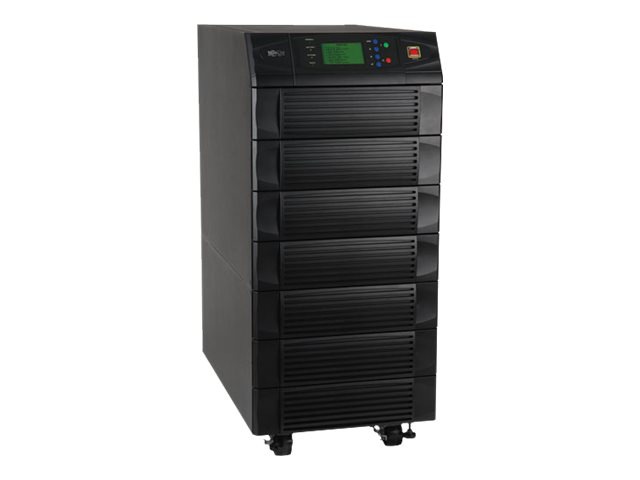

Tripp Lite's SU40KX(40kVA) SmartOnline Modular 3-Phase Intelligent, True On-Line UPS System provides 100% system availability with N+1 modular architecture and 1+1 parallel capability. In N+1 configuration, the SU40KX provides two self-contained, redundant 20kVA power modules that can be hot-swapped(load remaining powered) if maintenance is required. In 1+1 configuration, two SU40KX models connected in parallel can provide fail-safe redundancy(two 40kVA models supporting a 40kVA load) or increased capacity(two 40kVA models supporting an 80kVA load). Large capacity 40,000VA/32,000W UPS continually converts incoming AC power into filtered DC power, and then resynthesizes it back into AC power with a pure sine wave. Perfectly regulated, continuous sine wave output with zero transfer time assures compatibility with all equipment types. High input power factor, advanced IGBT inverter technology and Digital Signal Processor(DSP) technology produce less than 3% input total harmonic distortion(THDi). With low THDi, generators run cooler and last longer, allowing managers to save installation costs by installing a generator with a capacity equal to the equipment load(1:1 ratio). Extremely efficient operation(up to 97%) saves money by lowering electricity consumption. Hardwire input and output connections support a variety of permanent or PDU-style power connections. Frequency is 50 or 60 Hz(auto-selectable). The SU40KX combines internal power and battery modules in a single small-footprint tower compartment. Typical half-load/full-load runtimes are 13 min./5.5 min. Battery runtime can be extended with optional stand-alone hardwired external battery modules(Models BP480V26B and BP480V40C, available separately). A manual bypass breaker and an automatic bypass function ensure 100% availability of connected equipment by safely passing through AC power if the UPS requires maintenance.

This item was discontinued on January 27, 2021

Contact Sales Assistance
(800) 800-4239, Monday-Friday 7am-7:30pm CT
