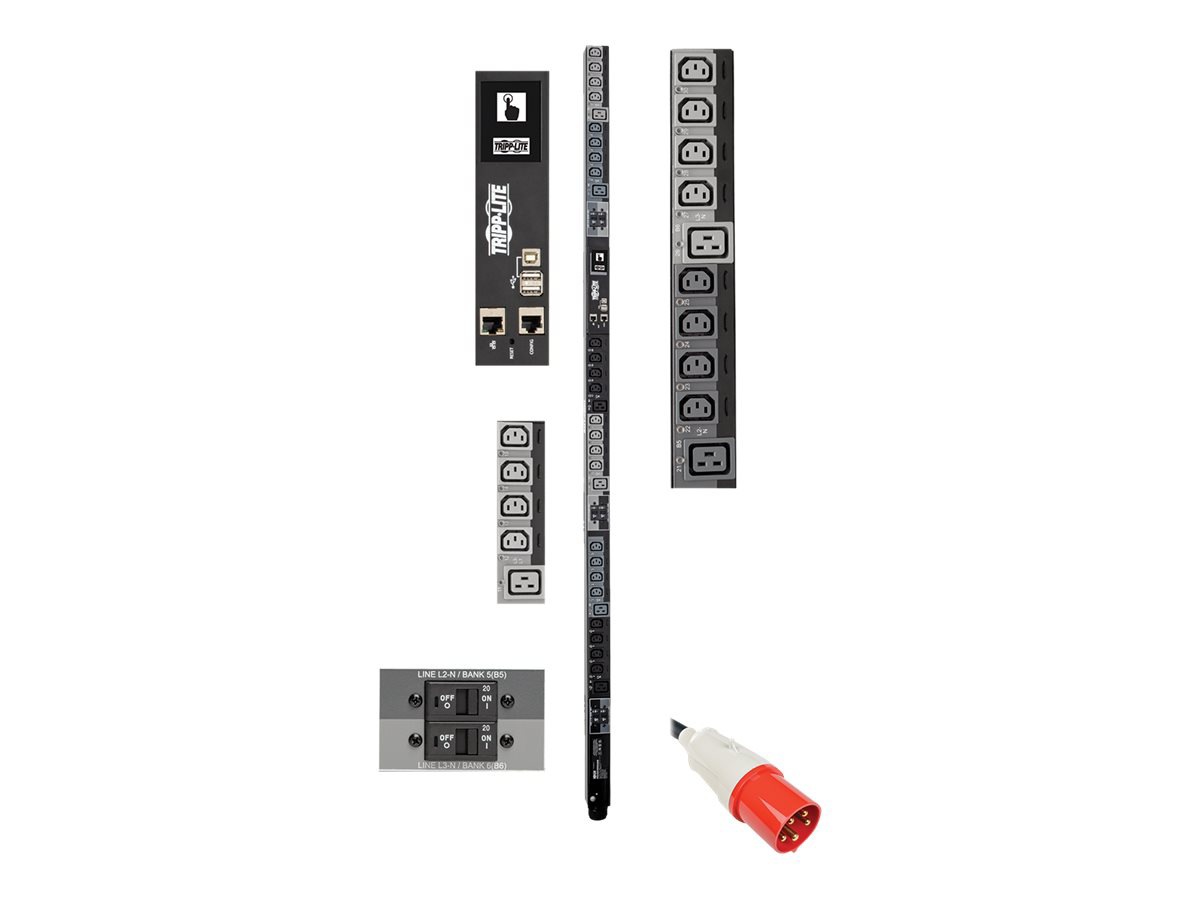

Tripp Lite 27.7kW 3-Phase Switched PDU, LX Platform Interface, 220/230V Outlets (24 C13/6 C19), Touchscreen LCD, IEC 309
Mfg # PDU3XEVSR6G63B
CDW # 5285005
Quick tech specs
- 27.7kW 3-phase PDU w/ touchscreen LCD distributes,monitors and manages AC power. Built-in Java-free network interface helps remotely monitor load levels to prevent overloads that cause downtime
- 30 individually controllable outlets—24 C13,6 C19
- IEC 309 63A Red 380/400V PDU input w/ 1.8m AC power cord
- 2 Year Tripp Lite Warranty
- 27.7kW 220/230V 3-phase switched 1.8m 0U PDU
- Built-in LX Platform interface for remote access 24/7
- Touchscreen LCD w/ mobile access option via QR code
Know your gear
The PDU3XEVSR6G63B 27.7kW 3-Phase Switched Power Distribution Unit provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.
The 0U PDU features 30 switched 220/230V outlets (24 C13 and 6 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 1.8-meter cord with IEC 309 63A Red 380/400V plug connects the PDU to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A color touchscreen LCD lets you toggle between menus to monitor input current level per phase, output current per load bank and per outlet with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the switchable PDU through a mobile device.
Distributes, Monitors and Manages Network-Grade AC Power. 27.7kW 380/220V 400/230V switched PDU with 3-phase input. Recommended for network applications requiring individual outlet control, load shedding and remote monitoring of critical network components. IEC 309 63A Red 380/400V plug with 1.8m cord connects to compatible AC power source. Firmware upgrades support future product enhancements. 30 Switched 220/230V Outlets Distribute AC Power. 24 C13 and 6 C19 outlets split into 6 separately breakered load banks. Individual outlets can be remotely controlled to power up, power down, reboot or lock out devices. Plug-lock insert sleeves prevent cables from becoming accidentally disconnected. Color Touchscreen LCD. Reports network data, including IP address, input current level per phase, and output current per load bank and per outlet with ±1% billing-grade accuracy. Generates unique QR code for read-only access to PowerAlert Device Manager via mobile device. Full access available by logging into PowerAlert Device Manager via browser as user with read/write credentials. Built-In LX Platform Interface . Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH. Supports 10/100 Mbps auto-sensing for communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilitiesNo Java required.
Broad Communications Compatibility. Supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2c, SNMPv3, Telnet, SSH, CLI, FTP, DHCP and NTP. Supports automatic and manual assignment of IP address. Reduce Service Calls with Auto Probe Autonomous Device Management. The Auto Probe feature (Firmware 15.5.2 and greater) checks the connectivity status of any networked device and automatically takes one or more user-configured actions if the device fails to respond; actions include outlet reboot, set SNMP traps, SNMP OID sets, and even script execution when used in conjunction with the Tripp Lite PowerAlert Network Shutdown Agent (PANSA).
Tiered access allows administrator and guest to log in via web browser. Immediate alert notifications via email or SNMP traps. Supports user-specified alarm notification thresholds. Real-time clock backup maintains day/date even if PDU is unpowered. Easy 0U Installation in EIA-Standard 19 in. Racks. Mounts vertically using included toolless buttons or rack-mounting brackets. Included PDUMVROTATEBRKT allows mounting w
