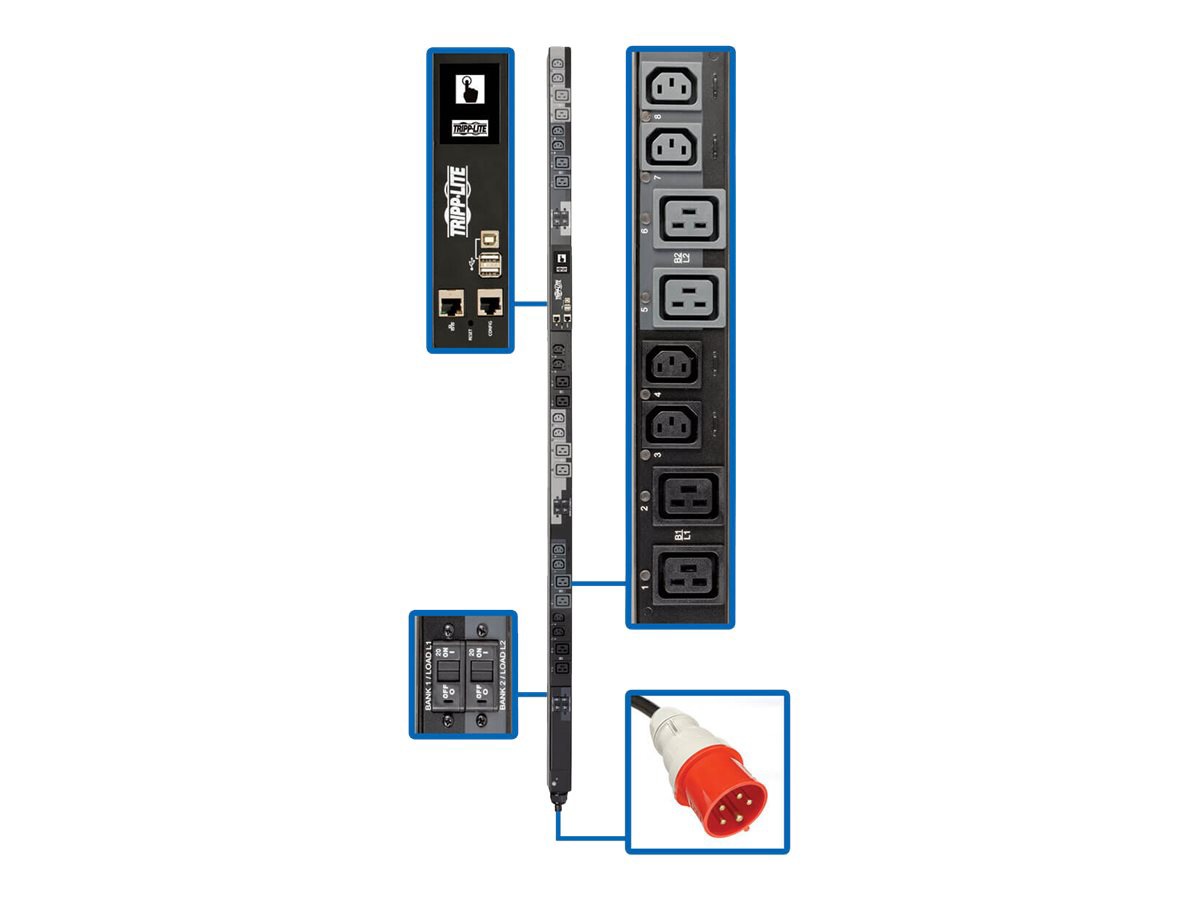

Tripp Lite 3-Phase PDU Switched 25.2kW 240V 12 C13; 12 C19 60A IEC309 TAA

Mfg.Part: PDU3XEVSR6G60A | CDW Part: 5285003 | UNSPSC: 39121017
Availability: Call
P:(800)800-4239
Mon-Friday 7am-7pm CT
Warranties
Was $2,561.40
$1,561.99 Advertised Price
Advertised Price
Lease Option ($47.20/month) Lease Price Information
Note: Leasing is available to businesses only. Leasing is not available to individuals.
Product Details
  • 3-phase switched PDU distributes,monitors and manages power in a medium/large data center or network installation.
  • 12 C13 and 12 C19 240V outlets distribute AC power to connected equipment
  • Built-in Java-free HTML5-based LX Platform interface allows you 24/7 remote access
  • Remote power monitoring and control reduces on-site visits and maintenance costs
  • 6 ft. cord with IEC 309 60A Red (3P+N+E) 3-phase input connects to AC power source
  • Two Year Warranty
View Full Product Details
Better Together
Tripp Lite 3-Phase PDU Switched 25.2kW 240V 12 C13; 12 C19 60A IEC309 TAA
Quick View
Total Price:

Product Overview

Main Features
  • 3-phase switched PDU distributes,monitors and manages power in a medium/large data center or network installation.
  • 12 C13 and 12 C19 240V outlets distribute AC power to connected equipment
  • Built-in Java-free HTML5-based LX Platform interface allows you 24/7 remote access
  • Remote power monitoring and control reduces on-site visits and maintenance costs
  • 6 ft. cord with IEC 309 60A Red (3P+N+E) 3-phase input connects to AC power source
  • Two Year Warranty
Recommended for data centers, server rooms and high-density network closets, this switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. You can more efficiently manage network power consumption and remotely reboot locked network items without having to visit the site. Reducing the number of on-site visits can help lower the cost of data center maintenance, thus lowering the 0U PDU's total cost of ownership.

During normal operation, 24 individually controllable outlets - 12 C13 and 12 C19 - in six separately breakered load banks distribute AC power to rack equipment. Each 240V outlet is accompanied by an LED that illuminates when the outlet is ramped up and ready to be used. The outlets and banks can be individually monitored to ensure proper load balance and prevent downtime. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged.

The Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100/1000 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2c, SNMPv3, Telnet, SSH, CLI, FTP, DHCP and NTP. The 0U PDU can receive IP address assignments via DHCP server (automatic) or static (manual) method.

The Auto Probe feature (Firmware 15.5.2 and greater) checks the connectivity status of any networked device and automatically takes one or more user-configured actions if the device fails to respond; actions include outlet reboot, set SNMP traps, SNMP OID sets, and even script execution when used in conjunction with the Tripp Lite PowerAlert Network Shutdown Agent (PANSA).

An easy-to-navigate color touchscreen LCD reports network data, input current level per phase, and output current per load bank and per outlet with ±1% billing-grade accuracy. It also generates a unique QR code to allow read-only access to the 3-phase PDU via mobile device. If an EnviroSense2 module is connected to the PDU, the LCD also displays its status and environmental data, such as temperature and humidity.

The 70-inch 0U PDU mounts vertically using the pre-installed toolless mounting buttons or the included brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. A six-foot cord with IEC 309 60A Red (3P+N+E) 415V 3-phase input connects the switched PDU to a compatible AC power source, generator or protected UPS.

The PDU3XEVSR6G60A is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

The PDU3XEVSR6G60A is backed by a 2-year warranty, ensuring reliability and performance.
