Quick tech specs
- Antenna
- 5 dBi (for 2.4
- 5.885 GHz)
- ceiling mountable, wall-mountable, flush mount, indoor
- Wi-Fi
- 2.484 GHz), 6 dBi (for 4.9
- directional
- white
Know your gear

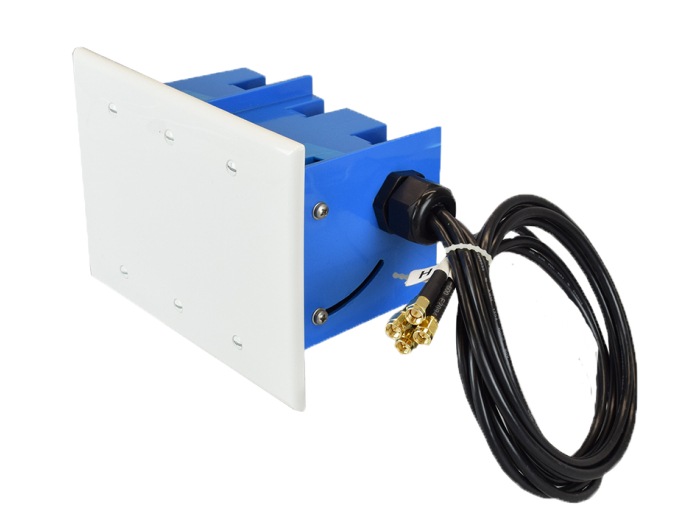

Ventev's TerraWave 2.4/5 GHz 5/6 dBi directional Wi-Fi junction box antenna with 4 RPSMA plugs is concealed within a standard three-gang electrical box, and is designed to operate with any manufacturer's 4-lead 802.11ac Waves I and II WLAN access points. The antenna's cover plate looks like a standard junction box cover, providing building managers, IT network operators, and building architects with an aesthetically appealing Wi-Fi antenna that will blend into existing room décor for "out of sight" coverage and capacity. The antenna is designed to be installed within a dry wall cut-out where the 6' leads can connect to a nearby access point. The directional antenna provides 0-45 degree articulation for excellent coverage and capacity in one or more rooms.
