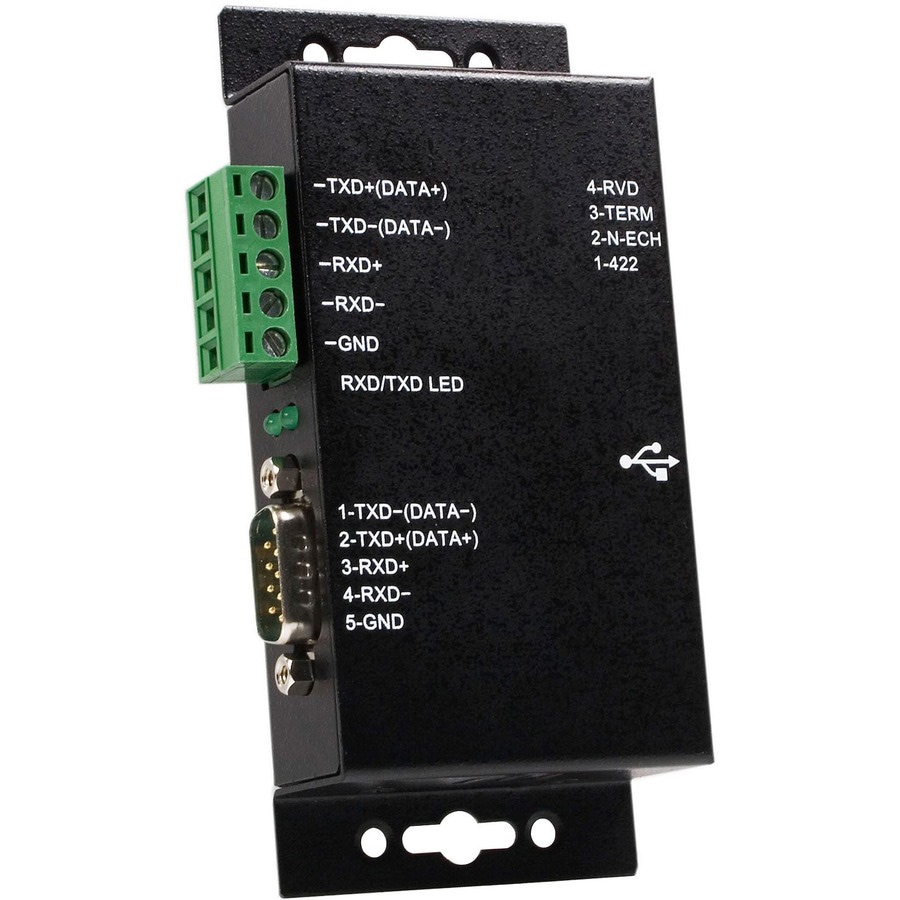

StarTech.com USB serial adapter - RS422 - RS485 - Industrial - serial - 1 port
Mfg # ICUSB422IS-V3G-ICPT
CDW # 7077901
| UNSPSC 43201559
Quick tech specs
- Provides one RS422/485 port while powering the device through USB
- Compatible with both USB 2.0 and USB 1.1
- Supports DB9 and terminal block connector
- Supports 4-wire RS422 and 2-wire RS485 applications
- RS-485 mode supports Auto Transceiver Turn Around (ATTA)
- RS422/485 Baud rate up to 921.6 Kbps
- Optical Isolation and Surge Protection (2500 Vrms)
Know your gear
The ICUSB422IS 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation connects to a computer using USB and allows you to connect any RS-422 or RS-485 serial device via the provided DB9 port or hard-wired to the terminal block. The USB to serial adapter features circuit isolation to ensure that sensitive controls and devices will not be damaged while connected, making it a viable solution for connecting costly industrial serial devices. The RS422/485 Converter receives full power via the host USB connection, and provides power to the attached serial device without requiring an external power adapter. Designed to provide a durable serial solution, the USB to RS422/485 Converter is ruggedly constructed and can be mounted nearly anywhere. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
