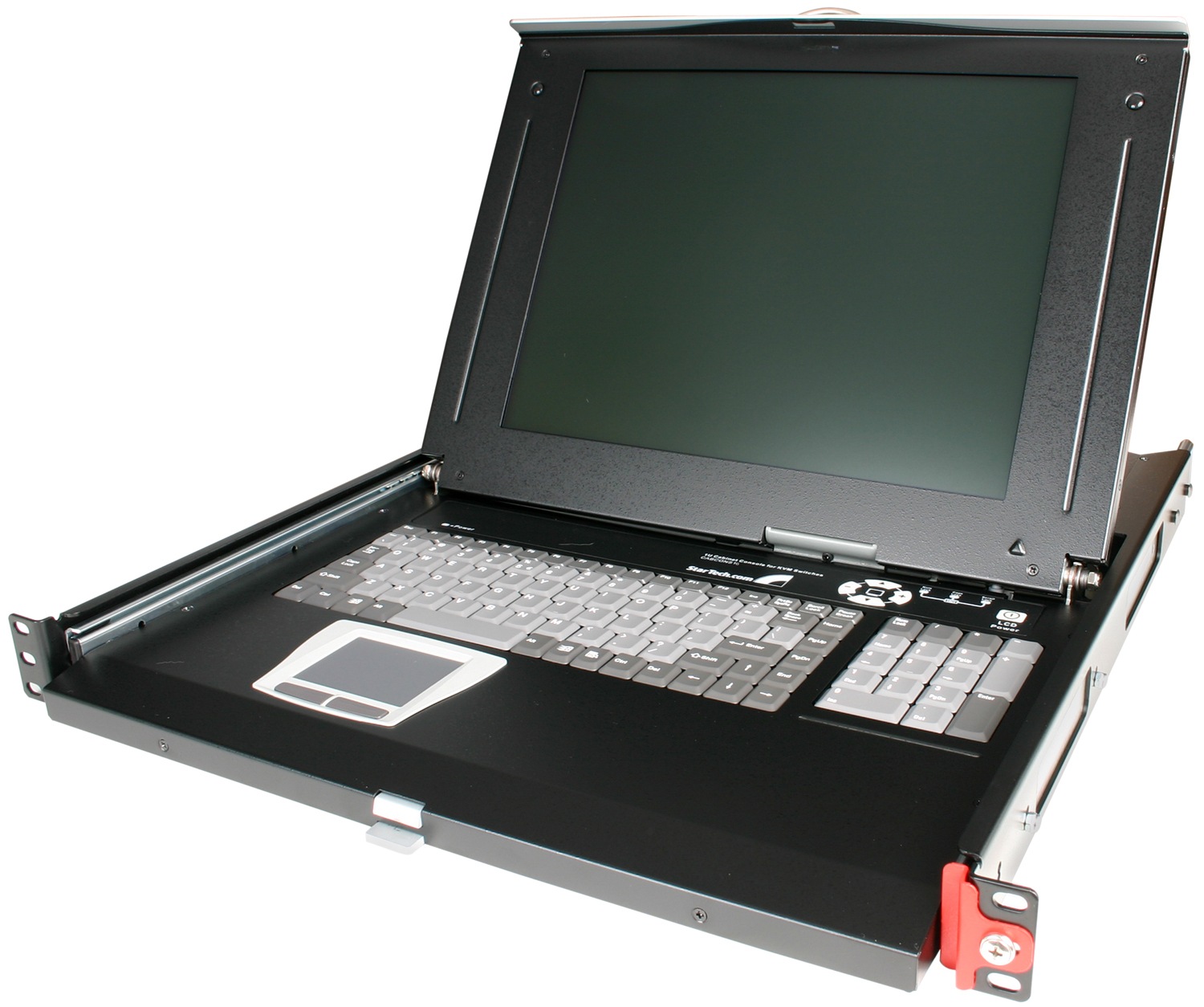

StarTech.com 1U rackmount 15” LCD with 16-port KVM
Mfg # CABCONS16
CDW # 493565
| UNSPSC 43211902
Know your gear
Uses 90% less space than a standard cabinet mounted keyboard, monitor, and mouse
Instead of wasting your valuable cabinet space with a bulky monitor, keyboard and mouse set up, get efficient with the StarTech.com CABCONS16, a 1U cabinet console for 19” racks. A complete 16-port KVM solution, this eye-catching 15-inch active matrix LCD monitor, 105-key low profile keyboard, and touchpad fold down into just 1U of space. When you don’t need the CABCONS16, you can close the console like a laptop and slide it into the cabinet and out of your way. We’ve also included 16 of our ultra-thin 3-in-1 KVM cables to save you even more cabinet space and make installation easy.The 16-port KVM switch allows you to use pushbuttons, hotkey commands, or on-screen display to navigate your KVM setup. You can also name your computers, lock them from unauthorized access, and automatically scan through them using AutoScan mode.The CABCONS16 includes all required rack-mounting hardware and is capable of up to 136 computers through eight cascaded 16-port KVMs.
The StarTech.com Advantage:
Includes StarTech.com ultra-thin 3-in-1 cables to save space and reduce clutter
Uses 90% less space than a standard cabinet mounted keyboard, monitor, and mouse
Improve space efficiency inside cabinets, allowing larger systems to fit into less cabinet space
Generates less heat than CRT displays, reducing cooling requirements
Improves cabinet ergonomics by placing keyboard and display close together
Features:
The compact and efficient way to control multiple computers in a 19” by 36” deep Rack Cabinet
Laptop design with an integrated keyboard and touchpad mouse makes it comfortable to use
Built-in 16 port KVM switch controls up to 16 computers directly and up to 136 computers by cascading 8 KVM switches
High resolution 15” Active Matrix Color TFT LCD monitor with a touchpad and a 105 key low profile keyboard
Auto Scan Mode lets you switch between computers for easy monitoring
Hot Pluggable feature lets users add or remove computers without powering down the switch
Supports resolution up to 1024x768 Pixels
LED indicators continuously show operating status of the console
Steel construction makes the product rugged and durable
All mounting hardware is included
Specifications:
User Ports: 1
Computer Ports: 16
LCD: 15 Inch Active matrix TFT LCD Panel
LCD Resolution: 1024 x 768
VGA Bandwidth: 1920 x 1440
Auto Scan interval: 3, 8, 15 & 30 Seconds
Computer Connectors:
Keyboard: 8 x PS/2
Mouse: 8 x PS/2
Monitor: 8 x HDB-15
LED Indicators:
Computer Indicator: 8 Red LED indicates selected computer
Local Console: Green LED indicates internal KVM in operation
Remote Console: Green LED indicates cascaded KVM in operation
Keyboard Status: 1 x Num Lock, 1 x Caps Lock & 1 x Scroll Lock
LCD Power Switch: Indicates LCD power status
Panel Control Buttons:
Selection Pad: 1 to 8 buttons to select a computer
LCD Panel Menu: up or down buttons for OSD Menu selection
LCD Panel Adjustment: + or – for LCD Panel Settings
Power Adapter: 12V DC (3.75A)
Console Dimensions:
Length: 4.5 Inches (114 millimeters)
Width: 15.9 Inches (404 millimeters)
Height 1.6 Inches (40 millimeters): 1.6 Inches (40 millimeters)
