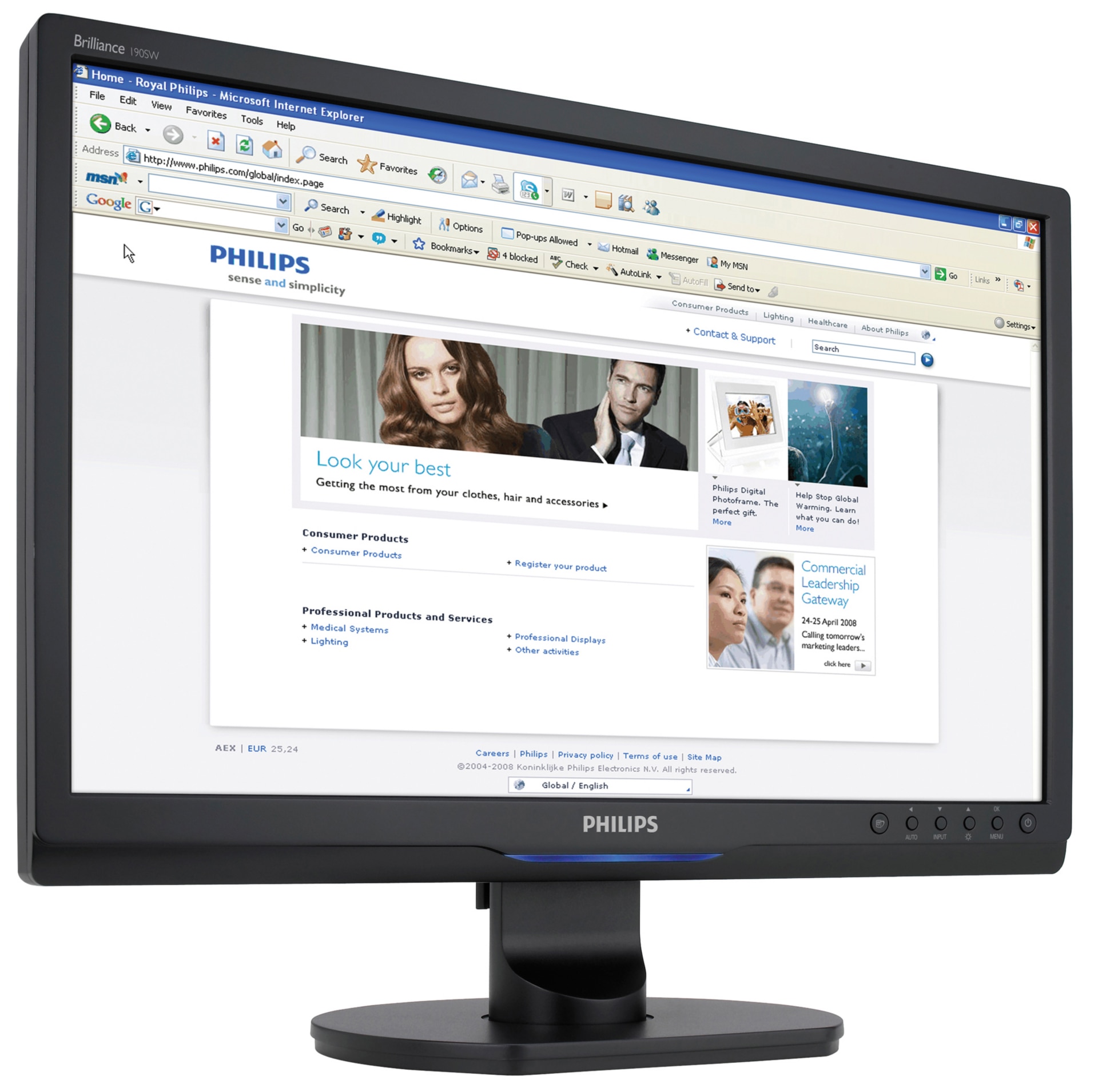

Philips 190SW9FB 19" Wide LCD
Mfg # 190SW9FB/27
CDW # 1586728
| UNSPSC 43211902
Quick tech specs
- 19” Wide LCD, Analog/Digital, Black, WSXGA Resolution 1440x900, Contrast Ratio 1000:1, SmartContrast Ratio 10,000:1, Brightness 300 cd/m2, Dot Pitch 0.2835mm, Response Time 5 ms, 3-Year Warranty
Know your gear
Feature packed performance widescreen productivity. With SmartImage, SmartContrast and SmartControl to boost your work output plus TrueVision for the best Philips LCD display, the TCO'03 certified, Vista-ready Philips Brilliance widescreen 190SW9 is ready to get the job done.
Best total cost of ownership solution
• TrueVision is Philips technology for monitor adjustment and fine tuning, an extensive process that ensures ultimate display performance from each and every monitor that leaves the factory. Only Philips goes to these lengths to deliver this exacting level of color accuracy and display quality in every new monitor.
• Empowered for Windows Vista
• SmartManage enabled is a system for monitoring, managing and checking status of display devices as well as delivering remote support to users who experience difficulties – all accomplished over a LAN
• TCO ’03 guarantees the highest safety and ergonomic standards
Outstanding front screen performance
• SmartImage is Philips technology that analyzes the content displayed on your screen and dynamically enhances the contrast, color saturation and sharpness of images and videos for ultimate display performance
• SmartContrast is Philips technology that analyzes the contents you are displaying, automatically adjusting colors and controlling backlight intensity to dynamically enhance contrast for the best digital images and optimum contrast
Eco-friendly design
• Green design conserves resources and reduces operating costs
Great convenience
• Dual input accepts both analog VGA and digital DVI signals
• Tilt and swivel adjustment for an ideal viewing angle
• Easy to adjust Philips SmartControl II PC software for fine tuning display performance and settings
• Cable management for a tidy work space
Picture/Display
• LCD panel type: 1440x900 pixels, Anti-glare polarizer, RGB vertical stripe
• Diagonal screen size: 19 inch
• Effective viewing area: 16.1 x 10.0 inch
• Pixel pitch: 0.2835 x 0.2835 mm
• Brightness: 300 cd/m²
• Contrast ratio (typical): 1000:1
• SmartContrast ratio (dynamic): 10,000:1
• Display colors: 16.7 million
• Viewing angle: 170 H / 160 V degrees
• Response time (typical): 5 ms
• Maximum resolution: 1440x900 @ 75 Hz
• Recommended resolution: 1440x900 @ 60Hz
• Horizontal scanning frequency: 30 – 83 kHz
• Vertical scanning frequency: 56 - 75 Hz
• Aspect ratio: 16:10
Connectivity
• Signal input: Analog (VGA), DVI-D
• Video sync input signal: Composite Sync, Separate Sync, Sync on Green
Convenience
• Tilt: -5° to 20°
• VESA Mount: 100 x 100 mm
• Convenience Enhancements: On Screen Display, SmartManage Enabled, SmartControl II
• Monitor Controls: SmartImage, Auto (Back), Power On/Off, Brightness (Up), Menu (OK), Input (Down)
• OSD Languages: English, French, German, Italian, Portuguese, Russian, Simplified Chinese, Spanish
• Other Convenience: Kensington lock compatible
• Plug & Play Compatibility: DDC/CI, sRGB, Windows 98/ME/2000/XP/Vista, Mac OS X
• Regulatory Approvals: CE Mark, Energy Star, FCC-B, SEMKO, TCO ’03, TÜV/GS, TÜV Ergo, UL/cUL
Power
• Complies with: Energy Star
• Consumption: < 36W (typical)
• Consumption (economy mode): 27W
• Off Mode: <0.8W
• Power supply: Built-in, 100-240VAC, 50/60 Hz
Dimensions:
• Dimensions with stand: 17.2” W x 14.7” H x 7.2” D
• Dimensions without stand: 17.2” W x 12.0” H x 2.68” D
• Product weight without stand: 8.02 lbs.
• MTBF: 50,000 hours
Included Accessories: AC power cord, VGA cable, User manual
Warranty: Three (3) years. First year is 48 hour turnaround time (business hours).
