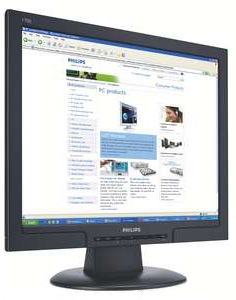

Philips 170S8FB 17” LCD Display

Compact display, rich performance on your budget. Optimized performance and convenience made affordable. Packed with smart features for enhanced display, the 170S8FB features SmartManage remote monitor management and green design that delivers the best total cost of ownership.

Best total cost of ownership solution
• Empowered for Windows Vista
• SmartManage enabled is a system for monitoring, managing and checking status of display devices as well as delivering remote support to users who experience difficulties – all accomplished over a LAN
• PerfecTune is proprietary Philips testing and algorithm technology for monitor adjustment and fine tuning, an extensive process that ensures ultimate display performance
• TCO ’03 guarantees the highest safety and ergonomic standards

Outstanding front screen performance
• SmartImage is Philips technology that analyzes the content displayed on your screen and dynamically enhances the contrast, color saturation and sharpness of images and videos for ultimate display performance
• SmartContrast is Philips technology that analyzes the contents you are displaying, automatically adjusting colors and controlling backlight intensity to dynamically enhance contrast for the best digital images and optimum contrast
• 5 ms fast response time

Maximum comfort for maximum productivity
• Screen tilts to your ideal, individualized viewing angle

Great convenience
• Dual input accepts both analog VGA and digital DVI signals
• Easy to adjust Philips SmartControl II PC software for fine tuning display performance and settings
• Cable management for a tidy work space

Picture/Display
• LCD panel type: 1280x1024 pixels, Anti-glare polarizer, RGB vertical stripe
• Diagonal screen size: 17 inch
• Effective viewing area: 13.3 x 10.6 inch
• Pixel pitch: 0.264 x 0.264 mm
• Brightness: 300 cd/m²
• Contrast ratio (typical): 800:1
• SmartContrast ratio (dynamic): 3000:1
• Display colors: 16.7 million
• Viewing angle: 176 H / 170 V degrees
• Response time (typical): 5 ms
• Maximum resolution: 1280x1024 @ 75 Hz
• Recommended resolution: 1280x1024 @ 60Hz
• Video dot rate: 140 MHz
• Horizontal scanning frequency: 30 – 83 kHz
• Vertical scanning frequency: 56 - 75 Hz

Connectivity
• Signal input: Analog (VGA), DVI-D
• Video sync input signal: Composite Sync, Separate Sync, Sync on Green

Convenience
• Tilt: -5° to 20°
• VESA Mount: 100 x 100 mm
• Convenience Enhancements: On Screen Display, SmartManage Enabled, SmartControl II
• Monitor Controls: SmartImage, Input, Auto (Back), Power On/Off, Brightness Control (Up/Down), Menu (OK)
• OSD Languages: English, French, German, Italian, Portuguese, Russian, Simplified Chinese, Spanish
• Other Convenience: Kensington lock compatible, FlexiHolder
• Plug & Play Compatibility: DDC/CI, sRGB, Windows 98/ME/2000/XP/Vista
• Regulatory Approvals: CE Mark, EMC, Energy Star, FCC-B, UL, CSA, SEMKO, TCO ’03, TÜV/GS, TÜV Ergo

Power
• Complies with: Energy Star
• Consumption: < 33W (typical)
• Consumption (economy mode): 27W
• Off Mode: < 1W
• Power supply: Built-in, 100-240VAC, 50/60 Hz

Dimensions:
• Dimensions with stand: 14.9” W x 15.2” H x 8.3” D
• Dimensions without stand: 14.9” W x 12.9” H x 2.3” D
• Product weight: 10.1 lbs.
• MTBF: 50,000 hours
• Operating temperature range: 0 - 40 °C
• Relative humidity range: 20% - 80%

Included Accessories: AC power cord, DVI-D cable, USB cable, VGA cable, User manual

Warranty: Three (3) years
