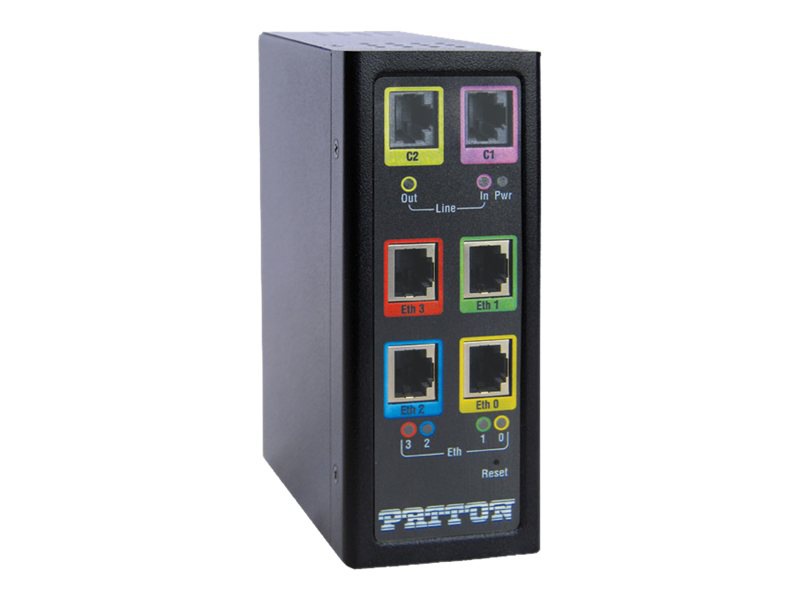

Patton CopperLink CL1314MDE/EUI - network extender - 10Mb LAN, 100Mb LAN
Mfg # CL1314MDE/EUI
CDW # 3393113
Know your gear
The MDE series of Ethernet extenders allows users to replace their legacy serial coms with cost-effective Ethernet (IP) that is easy and inexpensive to set up. Featuring Plug-and-Play installation, the CL1314 MDE leverages existing copper twisted-pair infrastructure to interconnect Ethernet devices and networks at moderate speeds over long distances. The MDE extender not only allows multi-drop functionality but also serves a repeater function doubling your maximum distance at every hop.
Operating over standard 0.5 mm (24-AWG) voice-grade wiring, the CL1314 MDE delivers speeds up to 5.7 Mbps and extends Ethernet connections across distances ranging from 2.7 to 6.9 km (1.7 to 4.3 miles) per hop. Whether you need connect to a remote offices, kiosks, guard stations, train stations, digital sensors or IP cameras - Patton Ethernet extender offers the industry's optimum combination of speed and distance. Patton's CopperLink Ethernet extender ensures hassle-free set-up and operation, while achieving the highest possible line rate for the required distance and electro-magnetic environment. Users "hard-set" the desired line rate via DIP switches or console Telnet.
The CL1314 MDE comes with a built-in four-port, auto-sensing, 10/100Base-TX Ethernet switch that provides automatic medium-dependent interface crossover capability (auto-MDIX). That means you can use cross-over or straight through cables to connect up to four Ethernet devices. The auto-MDIX feature detects the polarity of the cabling on each port, and automatically configures the signaling to match. Absolutely no user-configuration is required.
Operating at layer 2 of the OSI model (data link layer), the CL1314MDE transparently passes all higher-layer protocols - including VLAN tagging, multicast addressing, VPN pass-through for IPsec, and all IP-video compression schemes.
Set-up is easy! Plug in the twisted pair into each Copperlink port, then plug in up to four LAN devices with Cat 5 or greater cabling, and apply power! For simple, cost-effective and efficient Ethernet extension, Patton's CopperLink Ethernet extender is the ideal solution!
Operating over standard 0.5 mm (24-AWG) voice-grade wiring, the CL1314 MDE delivers speeds up to 5.7 Mbps and extends Ethernet connections across distances ranging from 2.7 to 6.9 km (1.7 to 4.3 miles) per hop. Whether you need connect to a remote offices, kiosks, guard stations, train stations, digital sensors or IP cameras - Patton Ethernet extender offers the industry's optimum combination of speed and distance. Patton's CopperLink Ethernet extender ensures hassle-free set-up and operation, while achieving the highest possible line rate for the required distance and electro-magnetic environment. Users "hard-set" the desired line rate via DIP switches or console Telnet.
The CL1314 MDE comes with a built-in four-port, auto-sensing, 10/100Base-TX Ethernet switch that provides automatic medium-dependent interface crossover capability (auto-MDIX). That means you can use cross-over or straight through cables to connect up to four Ethernet devices. The auto-MDIX feature detects the polarity of the cabling on each port, and automatically configures the signaling to match. Absolutely no user-configuration is required.
Operating at layer 2 of the OSI model (data link layer), the CL1314MDE transparently passes all higher-layer protocols - including VLAN tagging, multicast addressing, VPN pass-through for IPsec, and all IP-video compression schemes.
Set-up is easy! Plug in the twisted pair into each Copperlink port, then plug in up to four LAN devices with Cat 5 or greater cabling, and apply power! For simple, cost-effective and efficient Ethernet extension, Patton's CopperLink Ethernet extender is the ideal solution!
