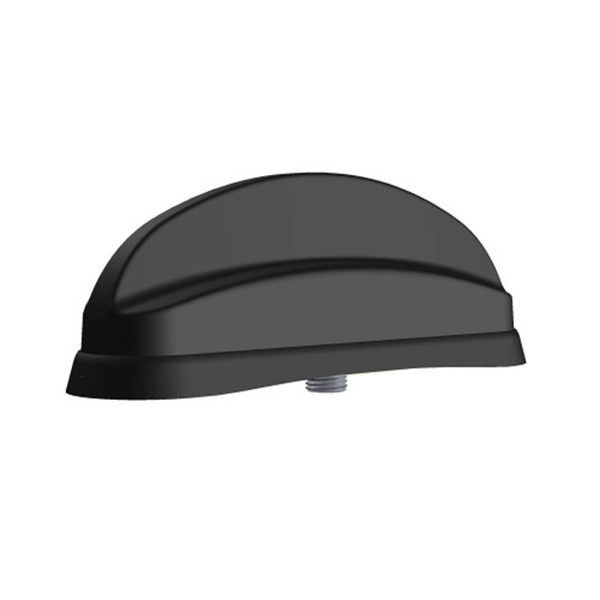

Panorama Antennas LP[G]AM[F]-6-60 Antenna

Mfg # LPAM-6-60-1 CDW # 7260859 | UNSPSC 43221706

Quick tech specs

  • 2×2 MiMo 4G/5G LTE Antenna
  • Up to 7 Antennas in 1 Housing
  • Optional GPS/GNSS and up to 4×4 MiMo WiFi
  • Low Profile Combination Product
  • Covers Wideband 600-6000MHz Frequencies
  • Meets IP69K Certification
View All View More

Know your gear

The LP[G]AM[F]-6-60 platform contains a 2×2 MiMo antenna function for 4G/5G (617-960/1427-6000MHz) and the option of 2×2, 3×3 or 4×4 MiMo dual-band WiFi, which supports WiFi 6E

An optional active antenna for GPS/GLONASS/Galileo/ BeiDou can be included, with 26dB gain LNA and advanced filtering for LTE Band 13/14 operation.

The LP[G]AM[F]-6-60 is designed for use on conductive metal panels but can be used on non-conductive panels with some detriment to performance in the 600MHz band.

This antenna is ideal for IoT applications including vending machines, kiosks, display screens and payment terminals where a cost-effective, efficient and robust antenna is essential. Supplied with integrated flexible FR RG174 cables and requiring only a single hole mounting, the LP[G]AM-6-60 range is a convenient and easy to install solution for a range of applications.
