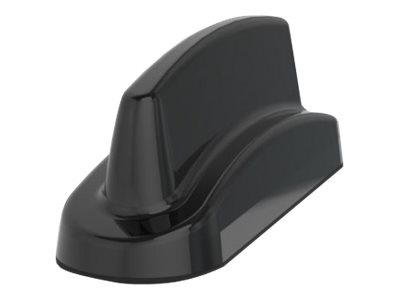

Panorama Antennas LP[G]AM-BC3G-26 | Compact Low profile MiMo 2G/3G/4G Antenna
![Panorama Antennas LP[G]AM-BC3G-26 | Compact Low profile MiMo 2G/3G/4G Antenna](https://webobjects2.cdw.com/is/image/CDW/6263919?$product-detail$)
Quick tech specs
- Designed to operate at 698 MHz to 960 MHz frequency
- Provides gain of up to 26 dB
- This antenna is an excellent choice for cellular network
- Designed to be light in weight and easy to install
Know your gear
The LP[G]AM-BC3G-26 range has been designed to provide MiMo Cellular / LTE antenna function for IOT and M2M applications.
- Supports 2x2 MiMo 2G/3G/4G
- Ideal for vending machines and kiosks
- Optional GPS/GNSS (26dB LNA)
The compact, robust low-profile housing is weatherproof and contains two antenna elements with effective isolation and correlation covering all current global cellular and LTEbands in freq. range 698-960/1710-3800MHz. The LG version includes an active GPS/GNSS/Galileo/Beidou antenna for applications which require position or timing function.
The antenna can be fitted on a non- conductive panel if required and offers easy, quick, secure and weatherproof installation with the single hole mounting bush and acrylic adhesive sealing pad. Supplied with integrated 3m (10') cables and SMA plug connectors, the antenna will offer plug and play connectivity with many different terminals.
