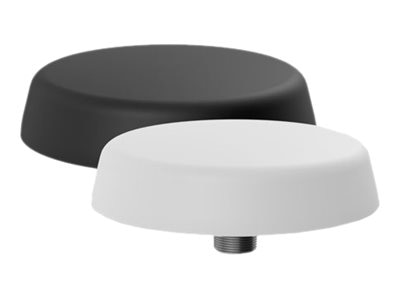

Panorama Antennas Low Profile MiMo WiFi Antenna
Mfg # LPM4-24-58-5RPSP
CDW # 5993016
Quick tech specs
- Provides optimized pattern coverage with 1562 MHz to 1612 MHz operating frequency range
- Receive signals from multiple directions with this omnidirectional antenna
- This antenna is ideal for use and provide connectivity to your wireless data network
- Panel-mountable design for mounting convenience
Know your gear
The L[G]M[X]-24-58 range has been designed to provide MiMo dual-band WiFI coverage in an ultra low profile package. The compact, robust low-profile housing contains up to four antenna elements with effective isolation and low correlation covering 2.4-2.5/4.9-6GHz.
- Ultra Low Profile
- Up to 4 x 4 MiMo Dual Band WiFi
- Optional GPS/GNSS
- Meets IP69K and IK10
- Available in Black or White
- 5m Flame Retardant CS32 cables with Reverse Polarity SMA Plugs
The antenna is designed to be panel mounted on vehicles or devices and can be fitted on a conductive or non- conductive panel. Supplied with integrated flame retardant CS32 cables (Compliant to UNECE 118.01 and EN45545-2) and a halogen-free flame retardant radome the antenna is suitable for many environments and applications.
The LGM variants have an integrated GPS/GNSS module with 26dB LNA gain. The antenna is available with a black or white radome.
