Panorama Antennas Low Profile 4x4 4G/5G MiMo LTE GPS/GNSS Active Antenna 26dB LNA
$463.29
$348.99
Mfg # LG-IN2444-W-LC
CDW # 8240061
Quick tech specs
- Delivers?enhanced performance at 617 MHz to 960 MHz operating frequency range
- Provides gain of up to 26 dB
- Get improved signals for your cellular network with this antenna
- Can be mounted as panel mount
Know your gear

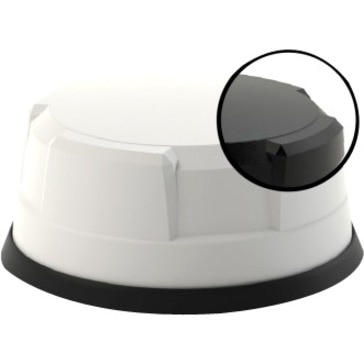

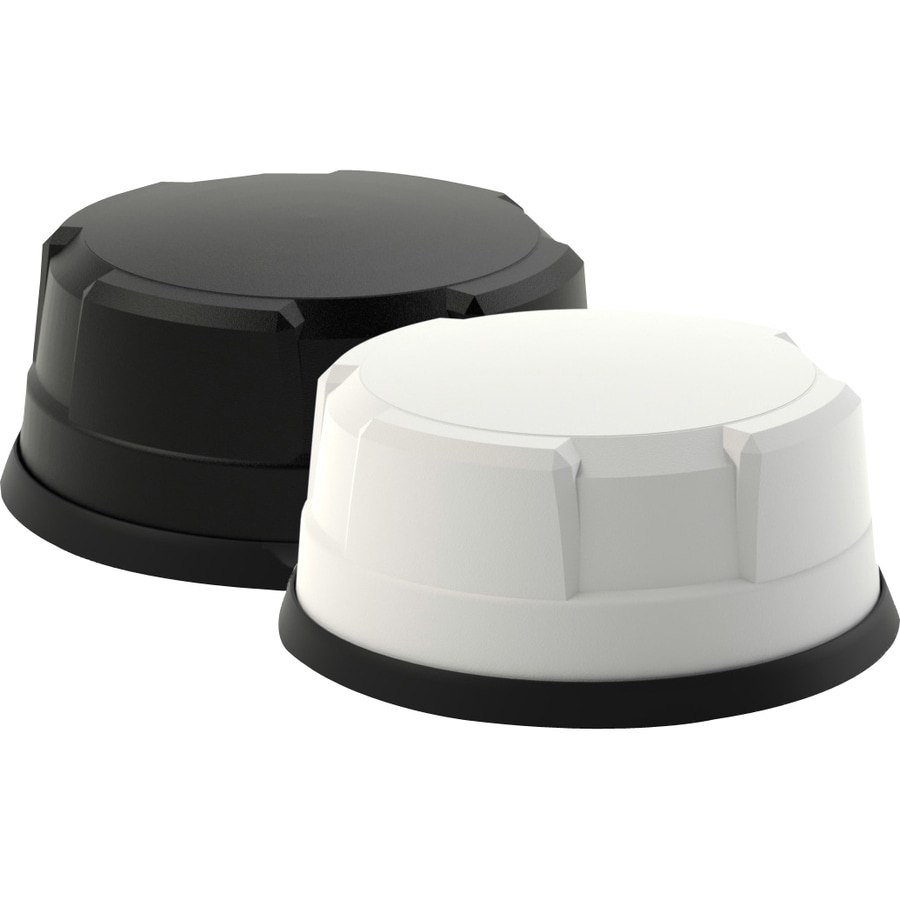

The LG-IN2444 range has been designed to provide 4x4 4G/5G MiMo performance from 617-960/1710-6000MHz combined with GPS/GNSS in a compact low profile housing.
The antenna is designed to be panel mounted and can be fitted on a conductive or nonconductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UNECE 118.01 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications. The antenna radome is available in black or white and meets IK10 for vandal resistance and IP69K for ingress protection.
The integrated GPS/GNSS module supports GPS, Glonass, Galileo, QZSS and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in band interference.
LG-IN2444 is supplied as a complete plug and play kit with integrated 5m (16') ultra-low loss TPE extension cables and SMA (m) connectors for 4G/5G and GPS.
The antenna is designed to be panel mounted and can be fitted on a conductive or nonconductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UNECE 118.01 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications. The antenna radome is available in black or white and meets IK10 for vandal resistance and IP69K for ingress protection.
The integrated GPS/GNSS module supports GPS, Glonass, Galileo, QZSS and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in band interference.
LG-IN2444 is supplied as a complete plug and play kit with integrated 5m (16') ultra-low loss TPE extension cables and SMA (m) connectors for 4G/5G and GPS.
- Certified IK10 Impact Resistant
- Certified IP69K Ingress Protected
- Flame Retardant Halogen Free Radome -UL94-V0
- UV, Ozone, High & Low Temperature Protected
- Environmentally Compliant - Meets RoHS, REACH - PVC Free
