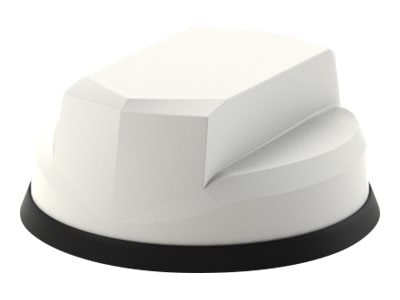

Panorama Antennas Antenna
Quick tech specs
- Provides optimized pattern coverage with 1562 MHz to 1612 MHz operating frequency range
- Eases up the installation procedure thanks to its 360-degree horizontal pattern
- Get enhanced signals for your cellular network with this antenna
- Can be mounted as panel mount
Know your gear
Great White 5G Antenna | Product Upgrade
The L[G]M[H]M[B]-6-60-[24-58] - "Great White" is a range of high-performance MiMo antennas covering 617-960/1710-6000MHz with optional GPS/GNSS and optional 2x2, 3x3 or 4x4 or 6x6 MiMo/Diversity at 2.4/5.0GHz.
The L[G]M[H]M[B]-6-60-[24-58] consists of up to 9 elements; two isolated high-performance antenna elements covering 617-960/1710-6000MHz offer MiMo/Diversity at cellular/LTE frequencies, up to 6 optional dual band elements covering 2.4 & 7.2GHz support MiMo/Diversity operation for WiFi and optional high-performance GPS/GNSS antenna with an integrated 26dB gain LNA and high-quality filtering offers un-paralleled positioning accuracy. None of the antennas in this range require a metallic ground plane, and all maintain a high level of performance even when mounted on non-metallic surfaces.
Features
- Low profile antenna with up to 9 functions in 1
- MiMo 4G/5G LTE cellular, Optional GPS/GNSS & optional MiMo 2.4/7.2GHz in one housing
- Kits with extension cables available for a range of LTE routers
Application
- Police Car
- Ambulance
- Public Bus
- Transportation
- Fire and Rescue Services
- Utility
Benefits
- Panel Mount
- Single Hole Installation
- Ground Plane Independent (Fit on plastic or metal panel)
- Available in Black or White
- Suitable for FistNet (USA) and ESN (UK) Public Safety Networks
