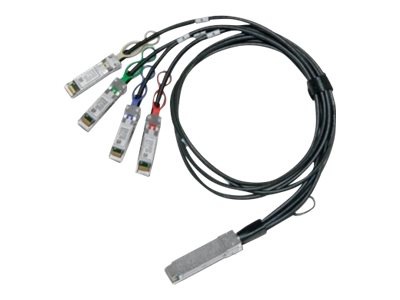

Mellanox LinkX 100GbE to 4x25GbE Direct Attach Copper Splitter Cable - 100GBase direct attach splitter - 8 ft
Mfg # MCP7F00-A02AR26N
CDW # 5718653
| UNSPSC 26121609
Quick tech specs
- 100GBase direct attach splitter
- 8 ft
- halogen-free, passive
- QSFP28 to SFP28
- SFF-8665/SFF-8402/SFF-863- 6/ IEEE 802.by
- for Spectrum SN2100, SN2700; Spectrum-2 SN3420, SN3700C; Spectrum-3 SN4600C
Know your gear
Mellanox MCP7F00-A02AR26N DAC splitter cables are a high speed, cost-effective 100GbE to 4 x 25GbE Ethernet connectivity solution, designed to meet the growing needs for higher bandwidth in data centers.
MCP7F00-A02AR26N cables are compliant with SFF-8402 SFP28 and SFF-8665 QSFP28 standard specifications and provide connectivity between system units with a QSFP28 port on one side and up to four different SFP28 ports on the other. The cable connects data signals from each of the 4 copper pairs on the QSFP28 end to the single pair of each of the SFP28 ends. Each QSFP28/SFP28 port comprises an EEPROM providing product information, which can be read by the host system.
Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
MCP7F00-A02AR26N cables are compliant with SFF-8402 SFP28 and SFF-8665 QSFP28 standard specifications and provide connectivity between system units with a QSFP28 port on one side and up to four different SFP28 ports on the other. The cable connects data signals from each of the 4 copper pairs on the QSFP28 end to the single pair of each of the SFP28 ends. Each QSFP28/SFP28 port comprises an EEPROM providing product information, which can be read by the host system.
Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
