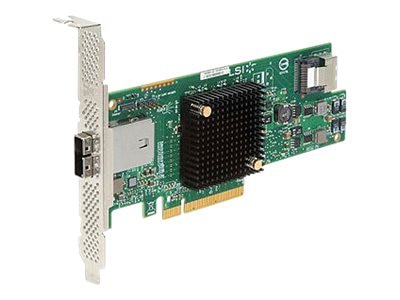

LSI SAS 9207-4i4e - storage controller - SATA 6Gb/s / SAS 6Gb/s - PCIe 3.0

LSI SAS 9207-4i4e host bus adapter provides a high performance solution for internal and external storage connections in 1 U/2 U servers and workstations. The LSI SAS 9207-4i4e provides 8 lanes of 6 Gbps SAS and is matched with 8 lanes of PCI Express 3.0, 8 Gbps performance to eliminate any performance bottlenecks. Performance is based on the LSISAS2308 6 Gbps SAS IO controller that highly integrates the enhancements in PCI Express and SAS technology.

The LSI SAS 9207-4i4e has one (x4) internal mini-SAS connector (SFF8087), one (x4) external mini-SAS connector (SFF8088), and provides SAS and SATA data transfer rates of 1.5, 3, and 6 Gbps per lane and can achieve over 650K IOPs.
