Juniper MPC7E-MRATE Expansion Module

Mfg # MPC7E-MRATE CDW # 4469745 | UNSPSC 43201404

Quick tech specs

  • Expansion Module is the single answer to all your desired and specified application execution and expansion needs
  • Provides high performance and flexible solution with 100 Gigabit Ethernet connectivity
  • Spans afar and provides speedy data transmission rates between servers and network components
  • With 10GBase-L technology,enjoy up to 10Gbps data transfer rate over optical fiber cable
  • Optical fiber cable compatible
  • Expansion Module with optical network application/usage for reliability a
View All View More

Know your gear

In Junos OS Release 15.1F4 and later, MX2020, MX2010, MX960, MX480, and MX240 routers support the rate-selectable MPC MPC7E (Multi-Rate) (model number: MPC7E-MRATE). The MPC7E-MRATE MPC is a fixed-configuration MPC that provides scalability in bandwidth and services capability of the routers.

The main features of the MPC7E-MRATE MPC are the following:

  • Line-rate throughput of up to 480 Gbps on MX240, MX480, and MX960 routers.
  • Line-rate throughput of up to 400 Gbps on the MX2000 line of routers.

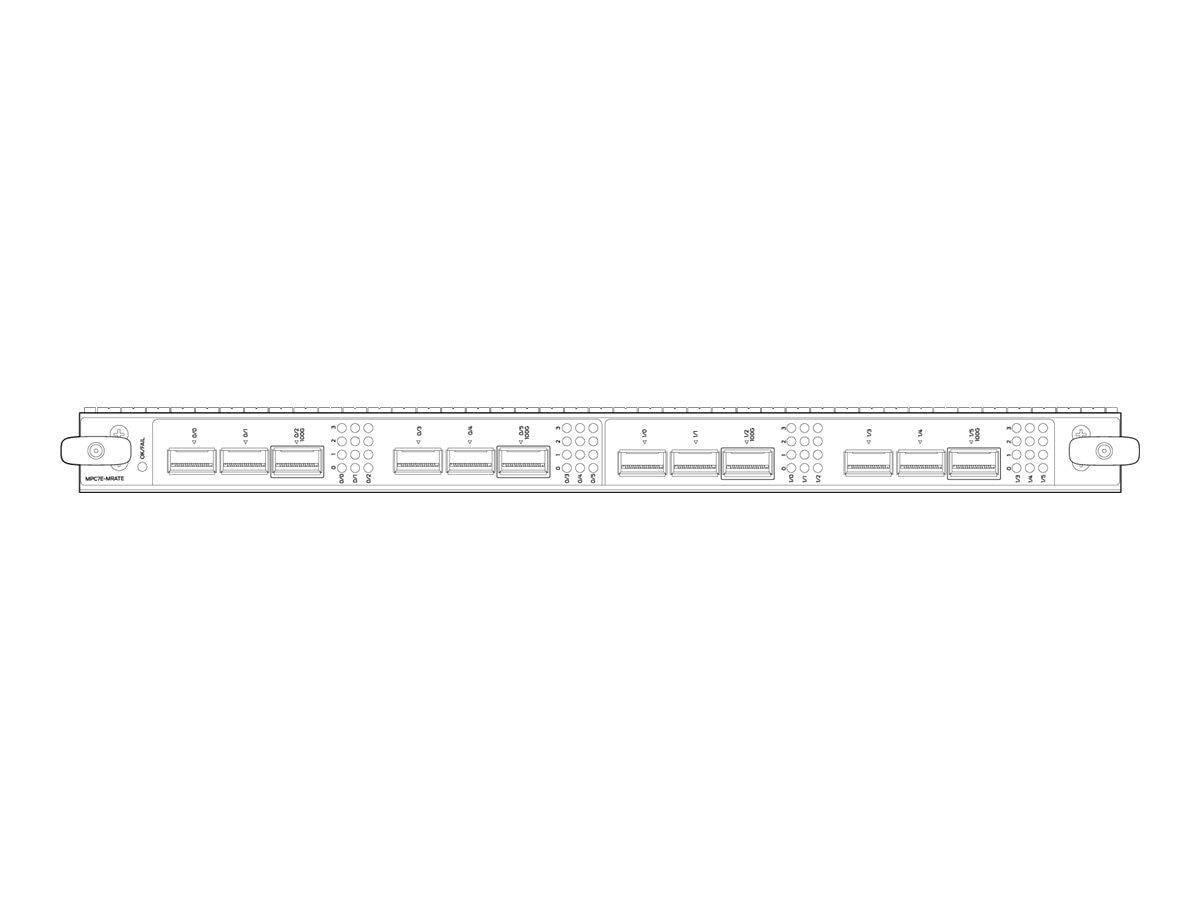

  • Twelve ports that can each be configured as a 40-Gigabit Ethernet port or as four 10-Gigabit Ethernet ports by using a breakout cable. The ports support quad small-form factor pluggable plus (QSFP+) transceivers.
  • Four ports-0/2, 0/5, 1/2, and 1/5-out of the twelve ports can be configured as 100-Gigabit Ethernet ports.
  • By default, the ports are configured as 10-Gigabit Ethernet ports.
  • You can configure different combinations of port speeds as long as the aggregate capacity per group of six ports labeled 0/0 through 0/5 does not exceed 240 Gbps. Similarly, aggregate capacity per group of the other six ports labeled 1/0 through 1/5 must not exceed 240 Gbps.
