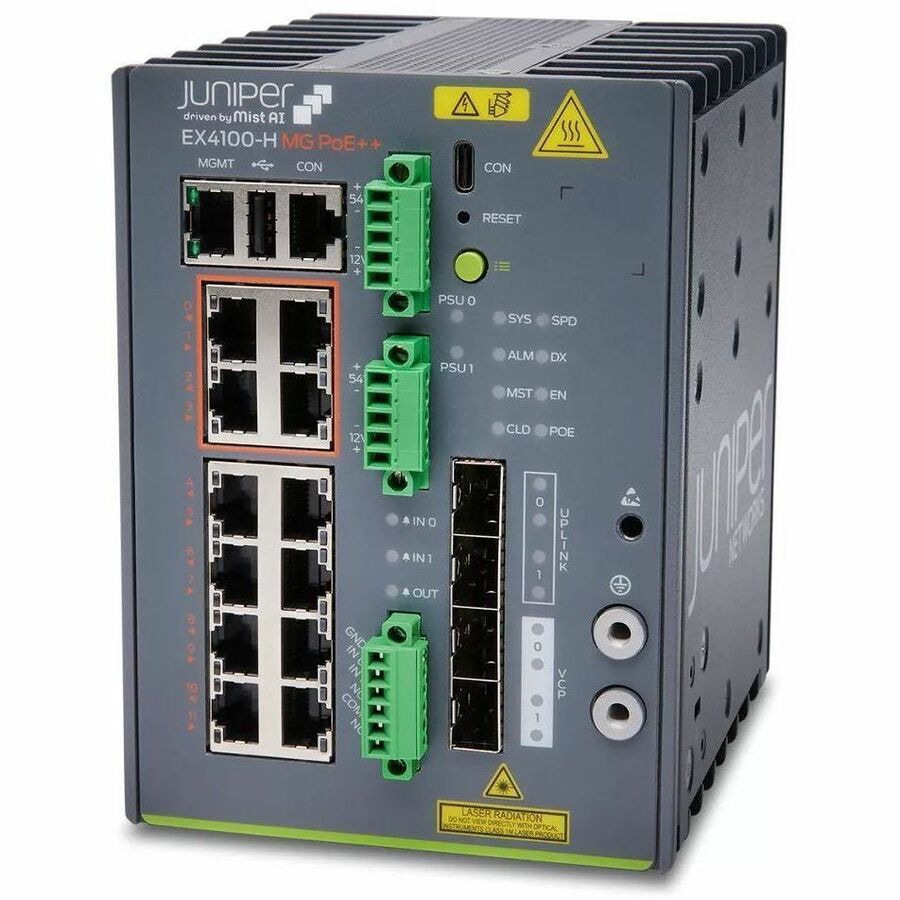

Juniper EX4100-H-12MP Ethernet Switch
Quick tech specs
- Effectively increases available bandwidth on your network
- Increases the stack bandwidth of the stack port further than that of a single port
- Can work as layer 3 routing for scalable network design
- Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency
- Quickly and easily set up a wired network with 12 networking ports
- Magnetic mount feature provides efficient cleaning in enclosed spaces while making its usage more flexible
Know your gear
The Juniper Networks® EX4100-H ruggedized line of Ethernet switches offers a fanless, secure, reliable, cloud-native portfolio delivering high-quality network services in extreme conditions, including freezing and scorching temperatures, with an extended operating temperature range for extreme indoor and outdoor applications. EX4100-H switches are ideal for use cases where extreme temperatures, potential physical impact, and vibrations are common.
EX4100-H switches combine the simplicity of the cloud, the power of Mist AI™ , and a robust, high-performance hardware foundation to deliver a differentiated approach to access switching in the cloud, mobile, and IoT era. With Juniper® Mist™ Wired Assurance, you can effortlessly onboard, configure, and manage EX4100-H switches from the cloud. This simplifies operations and improves visibility and troubleshooting, ensuring optimal experiences for connected devices.
Key features of EX4100-H Line include:
- Cloud-native, AI-Native switches with Wired Assurance and Marvis VNA
- Fanless with an extended operating temperature range of -40°C to +75°C for harsh environments
- Ruggedized, compact form factor for easy installation in tight spaces
- Compliant to IP30 and supports a relative humidity range of 5% to 95%, ensuring noncondensing operation
- Meets many industrial certifications, making it suitable for use in a wide range of applications that need high tolerances for constant vibrations, shocks, and electromagnetic immunity
- Dry contact alarm: two alarms in and one alarm out to signal external sensors
- Dual redundant PSUs: two AC PSUs or two DC PSUs or one AC and one DC PSU
- Ethernet VPN-Virtual Extensible LAN (EVPN-VXLAN) to the access layer
- Standards-based microsegmentation using group-based policies (GBPs)
- Switch-to-switch encryption using Media Access Control Security (MACsec) AES256
- IEEE 802.3bz Multigigabit
- IEEE 802.3bt Power over Ethernet Plus (PoE++)
- Flow-based telemetry to monitor traffic flows for anomaly detection and the ability to measure packet delays and report drop reasons
- Precision Time Protocol-Transparent Clock
- 10-member Virtual Chassis support
The EX4100-H Family consists of the following models:
- The EX4100-H-12MP, offering 4 x 100MB/1GbE/2.5GbE and 8 x 10 MB/100 MB/1GbE PoE++ access ports, delivers up to 90 W per port with a total PoE budget of 360 W using two power supplies.
