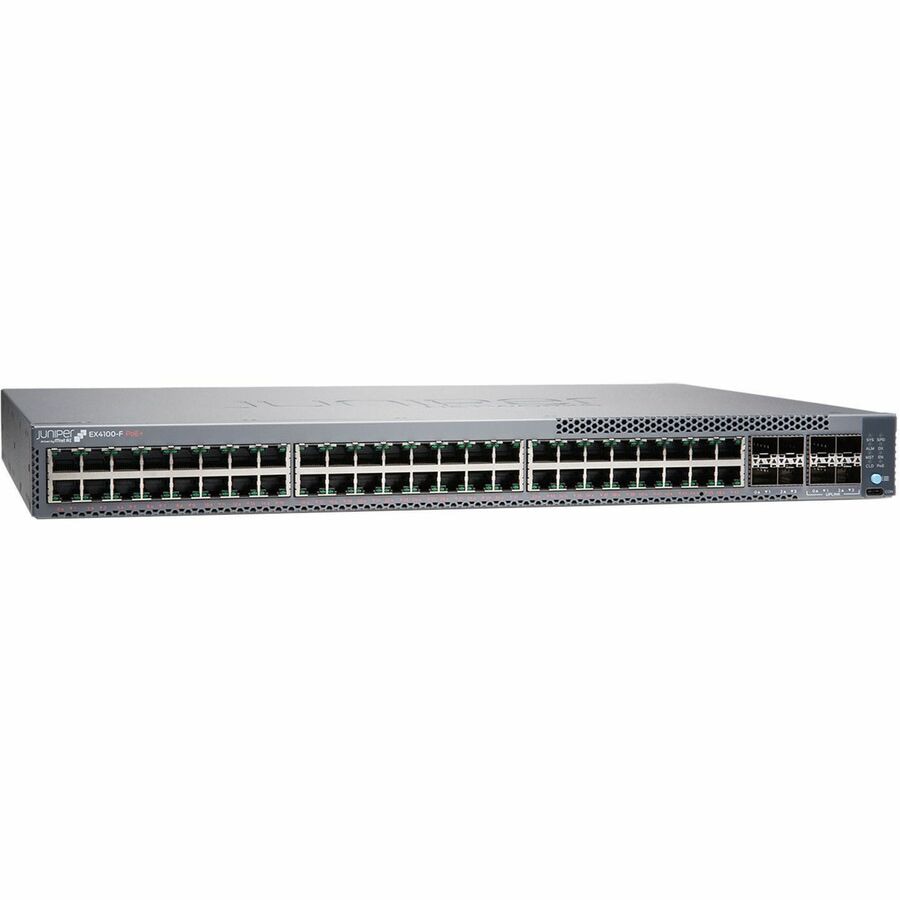

Juniper EX4100-F-48P Ethernet Switch

Mfg # EX4100-F-48P-TAA CDW # 7947171 | UNSPSC 43222612

Quick tech specs

  • Effectively increases available bandwidth on your network
  • Provides efficient communication with other ethernet switch in the stack to ensure maximum productivity
  • Built-in power supply to ensure all components are being supplied with accurate voltage
  • Lets you conveniently connect different networks to enable improved flexibility to your infrastructure
  • Create your own LAN and connect your PC,laptop,printer and other peripherals with the help of 48 ports
  • Supports layer 3 switching for e
View All View More

Know your gear

The Juniper Networks® EX4100-F line of Switches offers a secure, cloud-ready portfolio of access switches ideal for enterprise branch, remote office, and enterprise campus networks. The EX4100-F switches combine the simplicity of the cloud, the power of Mist AI™ , and a robust hardware foundation with high performance to deliver a differentiated approach to access switching in the cloud, mobile, and IoT era. With Juniper® Mist™ Wired Assurance, the EX4100-F line of Switches can be effortlessly onboarded, configured, and managed from the cloud. This simplifies operations, improves visibility, and ensures a much better experience for connected devices.

Key features of the EX4100-F include:

  • Cloud-ready, driven by Mist AI with Juniper Mist Wired Assurance and Marvis Virtual Network Assistant
  • Ethernet VPN-Virtual Extensible LAN (EVPN-VXLAN) to the access layer
  • Standards-based microsegmentation using group-based policies (GBPs)
  • Flow-based telemetry to monitor traffic flows for anomaly detection, ability to measure packet delays and report drop reasons
  • 10-member Virtual Chassis support

Offering a full suite of Layer 2 and Layer 3 capabilities, the EX4100-F enables multiple deployments. As scaling requirements increase, Juniper's Virtual Chassis technology allows up to 10 EX4100-F switches to be seamlessly interconnected and managed as a single device, delivering a scalable, pay-as-you-grow solution for expanding network environments

The EX4100-F line consists of the following models:

  • The EX4100-F-12T, which is a compact, fanless switch offering 12 x 1GbE non-PoE access ports.
  • The EX4100-F-12P, which is a compact, fanless switch offering 12 x 1GbE Power over Ethernet Plus (PoE+) access ports and delivering up to 30 W per port with a total of 180 W of PoE power budget with an external power adapter. EX4100-F-12P can also be powered from an external 90 W power sourcing equipment (PSE) device connected via the uplink port. Additional 90 W of PoE budget is available if the second uplink port is connected to a PSE device. With external power adapter and the two uplink ports connected to 90 W external PSE, total PoE power budget supported is up to 300 W.
  • The EX4100-F-24T, which offers 24 x 1GbE non-PoE access ports.
  • The EX4100-F-24P, which offers 24 x 1GbE PoE+ access ports, delivering up to 30 W per port with an overall total 370 W of PoE power budget.
  • The EX4100-F-48T, which offers 48 x 1GbE non-PoE access ports.
  • The EX4100-F-48P, which offers 48 x 1GbE PoE+ access ports and delivers up to 30 W per port with an overall total PoE Power budget of 740 W.

Each EX4100-F -24 port and -48 port model offers a fixed power supply and 4 x 1GbE/10GbE small form-factor pluggable plus transceiver (SFP+ transceiver) fixed uplink ports. Each EX4100- F-12 port model offers 2 x 10GbE fixed copper uplink ports. The EX4100-F switches include 4 x 1GbE/10GbE SFP+ ports to support Virtual Chassis connections, which can be reconfigured for use as Ethernet ports for uplink connectivity. EX4100-F switch models offer standards-based 802.3af/at (PoE/PoE+) for delivering up to 30 watts on any access port. The EX4100-F switches can be configured to deliver Fast PoE capability and Perpetual PoE capability.
