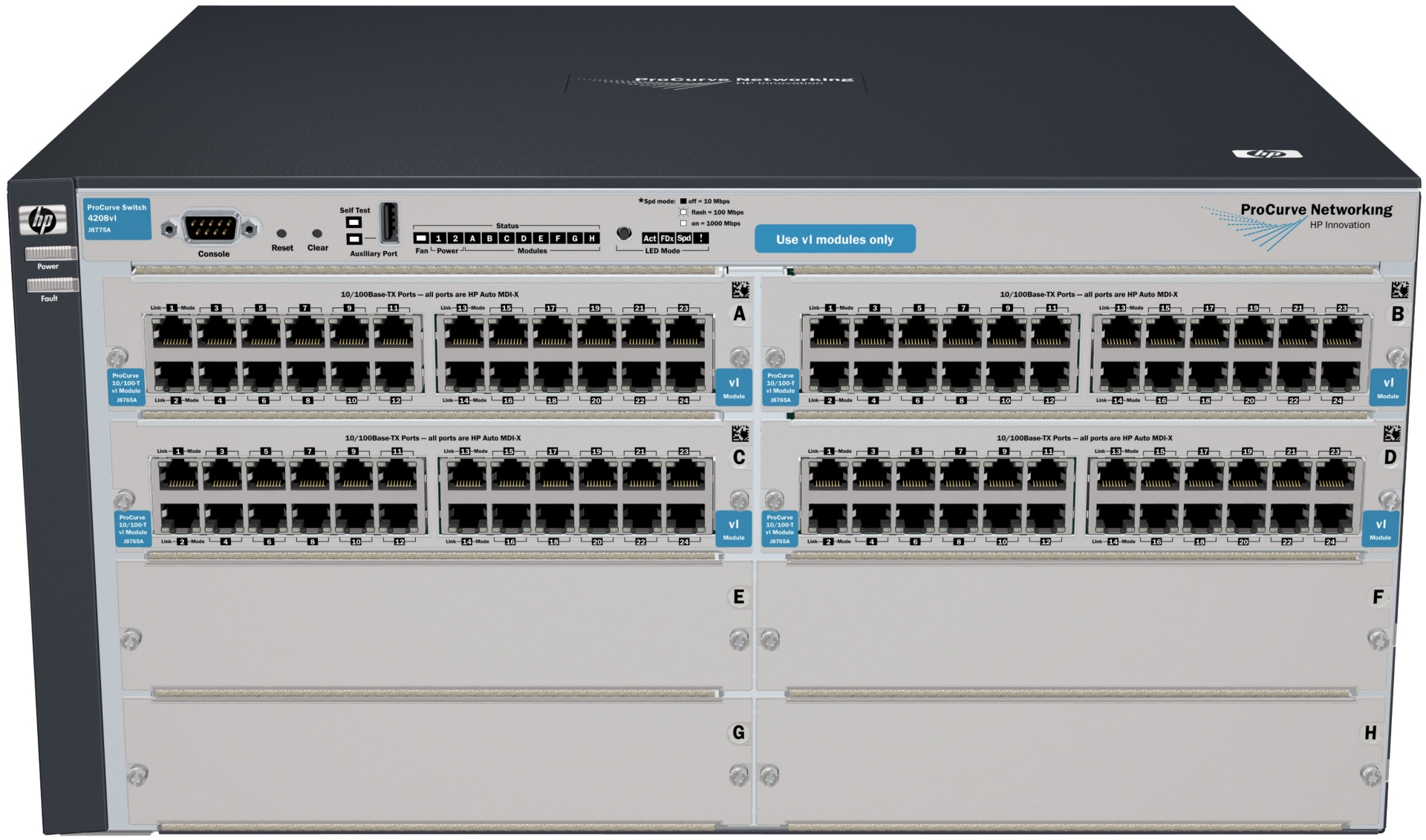

HP ProCurve Switch 4208vl-96
Mfg # J8775A#ABA
CDW # 927895
| UNSPSC 43222612
Quick tech specs
- ProCurve managed stackable rackmountable Switch vl with 4 open module slots with 24-Port 10/100-TX Module
Know your gear
The ProCurve Switch 4200vl series consists of modular
chassis that provide a flexible, cost-effective LAN solution as an alternative to stackables. These switches offer a proven chassis form factor with high quality and reliability in 10/100 and 10/100/1000 scalable solutions that integrate easily into any network.
Features and benefits:
Non-blocking architecture: up to 76.8Gbps non-blocking crossbar switching fabric provides wire-speed intra- and inter-module switching with up to 48 million pps throughput, built on ProCurve custom designed ASIC technology
802.3ad Link Aggregation Control Protocol (LACP) and ProCurve trunking: support up to 36 trunks, each with up to 8 links (ports) per trunk; trunking across modules is supported
Spanning Tree Protocol (IEEE 802.1D): provides redundant links while preventing network loops
802.1w Rapid Convergence Spanning Tree Protocol: increases network uptime through faster recovery from failed links
802.1s Multiple Spanning Tree: provides high link availability in multiple VLAN environments by allowing multiple spanning trees
Hot-swappable modules: permit modules and mini-GBICs to be added or swapped without interrupting the network
Basic IP routing: enables automatic routing to the connected VLANs and up to 16 static routes—including one default route—in IP networks
VLAN support and tagging: support complete 802.1Q (4,096 VLAN IDs) and 256 VLANs simultaneously
Group VLAN Registration Protocol (GVRP): allows automatic learning and dynamic assignment of VLANs
Port security: prevents unauthorized access using MAC address lockdown
MAC address lockout: prevents configured particular MAC addresses from connecting to the network
IEEE 802.1X: industry-standard way of user authentication using an 802.1X supplicant on the client in conjunction with a RADIUS server
Web-based authentication: similar to 802.1X, provides a browser-based environment to authenticate clients that do not support the 802.1X supplicant
MAC-based authentication: client is authenticated with the RADIUS server based on the MAC address of the client; useful for clients that have minimal or no user interface
Secure FTP: allows secure file transfer to/from the switch (protects against unwanted file downloads or unauthorized copying of switch configuration file)
TACACS+: eases switch management security administration by using a password authentication server
Source-port filtering: allows only specified ports to communicate with each other
