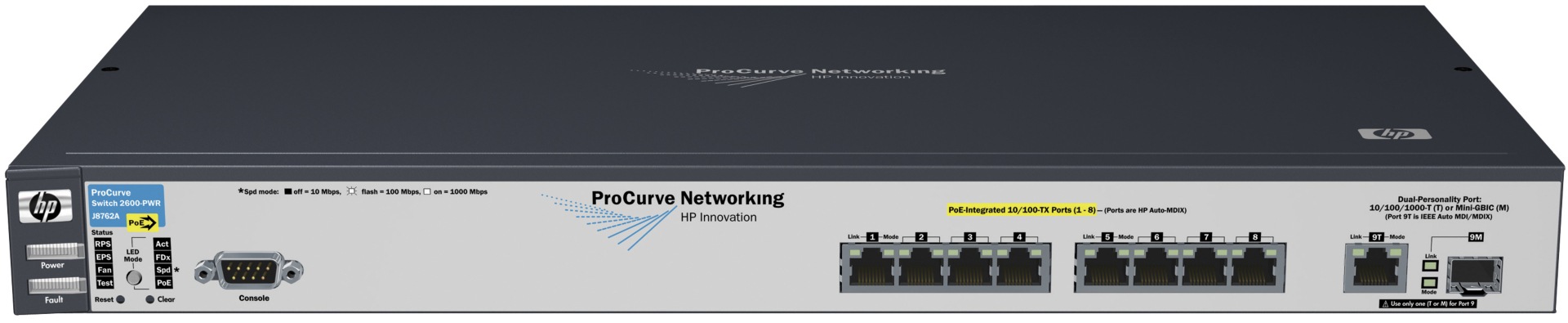

HP ProCurve Switch 2600-8 PWR
Mfg # J8762A
CDW # 854118
| UNSPSC 43222612
Quick tech specs
- 8-port 10/100BASE-TX Fast Ethernet managed stackable rackmountable switch with 1 dual personality port for 10/100/1000 or mini-GBIC connectivity and IEEE 802.3af compliant for Power over Ethernet and provides up to 15.4W per port
Know your gear
The HP ProCurve Switch 2600-8 PWR is a stackable, multi-layer, managed 9-port switch with 8 auto-sensing 10/100 ports and 1 dual personality port for 10/100/1000 or mini-GBIC connectivity. The HP Switch 2600-8 PWR is IEEE 802.3af compliant for Power over Ethernet and provides up to 15.4W per port.
Features:
9.6Gbps backplane: wire-speed non-blocking architecture for low-latency throughput
Dual-personality functionality: one 10/100/1000 ports or mini-GBIC slots for optional fiber connectivity such as Gigabit-SX, -LX, or -LH
Power over Ethernet (IEEE 802.3af) compliant: provides up to 15.4 W per port to power IP phones, wireless access points, Web cameras, and more
Optional external redundant power supply: provides uninterrupted power; sold as an accessory
Basic IP routing: enables automatic routing to the connected VLANs and up to 16 static routes—including one default route—in IP networks
IP multicast (IGMPv3 snooping): automatically prevents flooding of IP multicast traffic
802.3ad Link Aggregation Control Protocol (LACP) and ProCurve trunking: support up to 6 trunks, each with up to 4 links (ports) per trunk
RMON: provides advanced monitoring and reporting capabilities for statistics, history, alarms, and events
802.1X and RADIUS network login: control port-based access for authentication and accountability
TACACS+: eases switch management security administration by using a password authentication server
Secure Shell (SSHv2): encrypts all transmitted data for secure CLI remote access over IP networks
Secure Sockets Layer (SSL): encrypts all HTTP traffic, allowing secure access to the browser-based management GUI in the switch
Secure access to manage the switches: all access methods—CLI, GUI, or MIB—are securely encrypted through SSHv2, SSL, and/or SNMPv3
VLAN support and tagging: support complete 802.1Q (4,096 VLAN IDs) and 253 VLANs simultaneously
Group VLAN Registration Protocol (GVRP): allows automatic learning and dynamic assignment of VLANs
802.1w Rapid Convergence Spanning Tree Protocol : increases network uptime through faster recovery from failed links
802.1s Multiple Spanning Tree: provides high link availability in multiple VLAN environments by allowing multiple spanning trees
ProCurve/IEEE Auto-MDIX: automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports
Friendly port names: allow assignment of descriptive names to ports
Dual flash images: provide independent primary and secondary OS files for backup while upgrading
Source port filtering: allows only specified ports to communicate with each other
Web-based authentication: similar to 802.1X, provides a browser-based environment to authenticate clients that do not support the 802.1X supplicant
MAC address lockout: prevents configured particular MAC addresses from connecting to the network
Secure FTP: allows secure file transfer to/from the switch (protects against unwanted file downloads or unauthorized copying of switch configuration file)
Port security: prevents unauthorized access using MAC address lockdown
IP Lockdown: only allows traffic from a specific IP address to be forwarded
Layer 4 prioritization: enables prioritization based on TCP/UDP port numbers
Class of Service (CoS): sets 802.1p priority tag based on
IP address, IP Type of Service (ToS), L3 protocol, TCP/UDP port number, source port, and DiffServ
Traffic prioritization (802.1p): allows real-time traffic classification into 8 priority levels mapped to 4 queues
