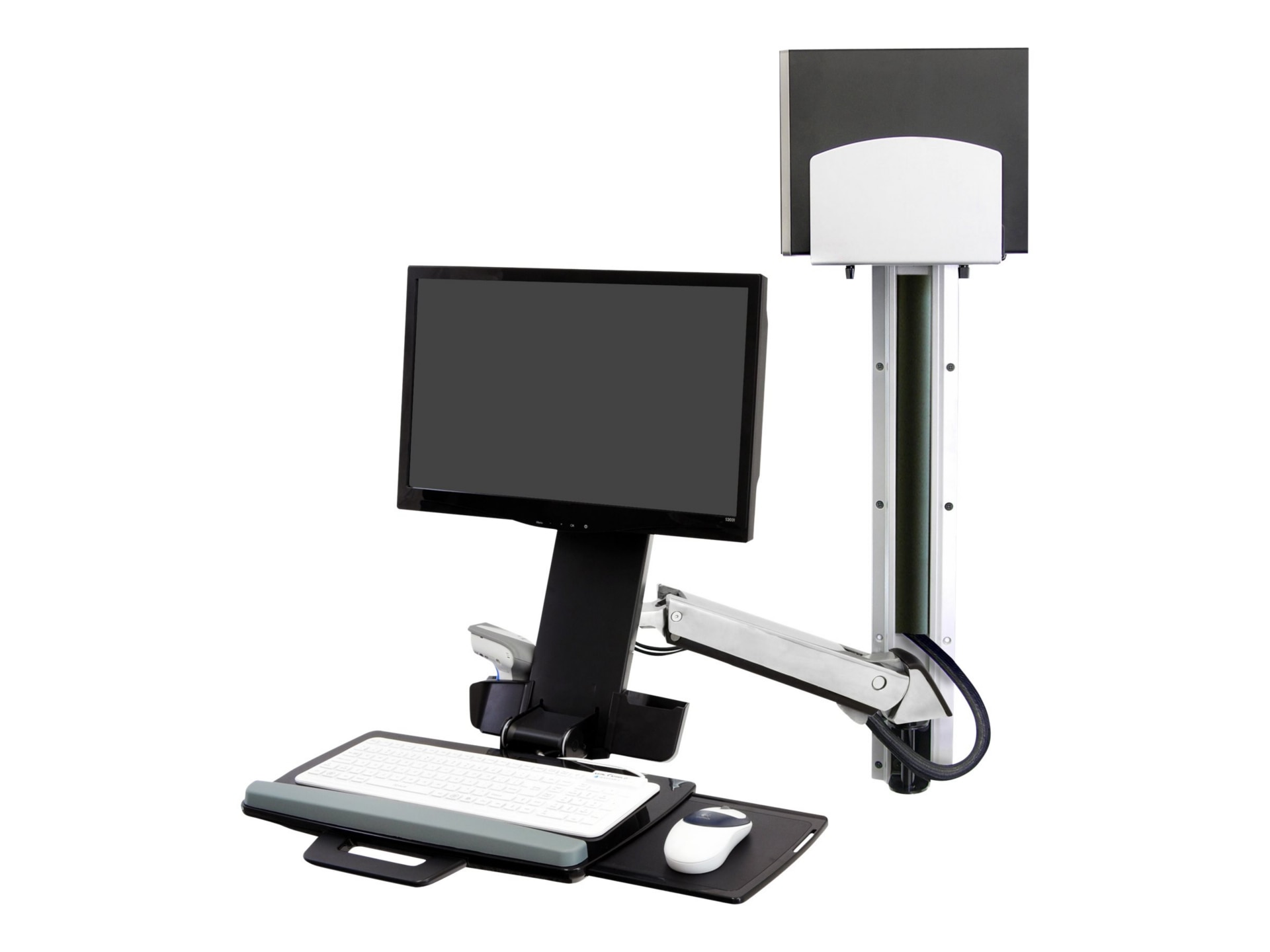

Ergotron StyleView mounting kit - Patented Constant Force Technology - for LCD display / keyboard / mouse / barcode
$1,059.99
Mfg # 45-271-026
CDW # 2523529
Quick tech specs
- to-stand height adjustment—work sitting or standing; 20" (51 cm) vertical motion plus 5" (13 cm) independent monitor vertical lift
Know your gear
Durable polished aluminum construction! Work sitting or standing with the arm’s ergonomic 25" (64 cm) LCD height adjustment range. A unique cable management system conceals and organizes cords, making cleaning easy.
Support workflow needs with sturdy worksurface: 22.75"W x 10.6"D (57.8 x 26.9 cm)
Handle-contact surfaces and Wrist Rest are treated with Agion® Antimicrobial for product protection
Flexible, open-architecture design is scalable for future computer equipment
Comfortable, ergonomic data entry—work sitting or standing with 20" (51 cm) single-motion lift adjustment
Five-inch (12.7 cm) independent LCD height adjustment ergonomically accommodates individual users
Easy-to-clean features promote superior infection control
Barcode scanner holder provides easy access to hand-held scanner
Extend LCD and keyboard up to 43" (109 cm) from wall; fold equipment back out of the way when not in use. With worksurface/keyboard in storage position, system depth is as little as 8" (20.3 cm)
Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry; keyboard tray pulls out when needed and stows inside worksurface
Maintains the relative position of screen and keyboard throughout full range of motion
Clean, concealed and neat routing of cables through the expansive cable management system
Includes HD Combo Arm, 34" Wall Track with (2) black track covers, Medium Silver CPU Holder, CPU spacer, (2) 10" cable channels, CPU and Arm track mount bracket kits, Wall Track fasteners for concrete and wood, CPU direct wall mount kit, height-adjustable LCD mount, wrist rest, scanner and mouse holders, integrated keyboard tray, handle, VESA monitor mounting kit, cable ties
Durable, easy-to-clean exterior composed of aluminum, high-grade plastic
* Weight Capacity: display = 6–18 lbs (2.7–8.2 kg); worksurface, keyboard, mouse and barcode scanner = 4 lbs (1.8 kg)
† Lift Range: LCD and keyboard adjusts 20" (51 cm) in tandem with single-motion; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (64 cm)
‡ Monitor up/down tilt = +25°/-5°
Patented CF lift-and-pivot motion technology provides premium 25-inch (64 cm) LCD height adjustment, portrait to landscape rotation and 30° tilt
Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Integrated mouse and barcode scanner holder provide easy access
Fold-down worksurface / keyboard tray to support workflow needs. Worksurface is 22.75"W x 10.6"D (57.8 x 26.9 cm). Keyboard tray is 18.6"W x 9"D (47.2 x 22.8 cm)
Back-tilt keyboard tray adjustable from 0° to -10°
Optional Extender (45-261-026) increases range of motion for even greater reach
Can be configured to hold a laptop instead of an LCD display; also order the LX Notebook Tray (50-193-200)
Shipping Dimensions: 37.1" x 26.1" x 10" (942 x 662 x 254 mm)
Shipping Weight: 50 lbs (22.7 kg)
Warranty: Five (5) years
Support workflow needs with sturdy worksurface: 22.75"W x 10.6"D (57.8 x 26.9 cm)
Handle-contact surfaces and Wrist Rest are treated with Agion® Antimicrobial for product protection
Flexible, open-architecture design is scalable for future computer equipment
Comfortable, ergonomic data entry—work sitting or standing with 20" (51 cm) single-motion lift adjustment
Five-inch (12.7 cm) independent LCD height adjustment ergonomically accommodates individual users
Easy-to-clean features promote superior infection control
Barcode scanner holder provides easy access to hand-held scanner
Extend LCD and keyboard up to 43" (109 cm) from wall; fold equipment back out of the way when not in use. With worksurface/keyboard in storage position, system depth is as little as 8" (20.3 cm)
Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry; keyboard tray pulls out when needed and stows inside worksurface
Maintains the relative position of screen and keyboard throughout full range of motion
Clean, concealed and neat routing of cables through the expansive cable management system
Includes HD Combo Arm, 34" Wall Track with (2) black track covers, Medium Silver CPU Holder, CPU spacer, (2) 10" cable channels, CPU and Arm track mount bracket kits, Wall Track fasteners for concrete and wood, CPU direct wall mount kit, height-adjustable LCD mount, wrist rest, scanner and mouse holders, integrated keyboard tray, handle, VESA monitor mounting kit, cable ties
Durable, easy-to-clean exterior composed of aluminum, high-grade plastic
* Weight Capacity: display = 6–18 lbs (2.7–8.2 kg); worksurface, keyboard, mouse and barcode scanner = 4 lbs (1.8 kg)
† Lift Range: LCD and keyboard adjusts 20" (51 cm) in tandem with single-motion; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (64 cm)
‡ Monitor up/down tilt = +25°/-5°
Patented CF lift-and-pivot motion technology provides premium 25-inch (64 cm) LCD height adjustment, portrait to landscape rotation and 30° tilt
Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Integrated mouse and barcode scanner holder provide easy access
Fold-down worksurface / keyboard tray to support workflow needs. Worksurface is 22.75"W x 10.6"D (57.8 x 26.9 cm). Keyboard tray is 18.6"W x 9"D (47.2 x 22.8 cm)
Back-tilt keyboard tray adjustable from 0° to -10°
Optional Extender (45-261-026) increases range of motion for even greater reach
Can be configured to hold a laptop instead of an LCD display; also order the LX Notebook Tray (50-193-200)
Shipping Dimensions: 37.1" x 26.1" x 10" (942 x 662 x 254 mm)
Shipping Weight: 50 lbs (22.7 kg)
Warranty: Five (5) years
