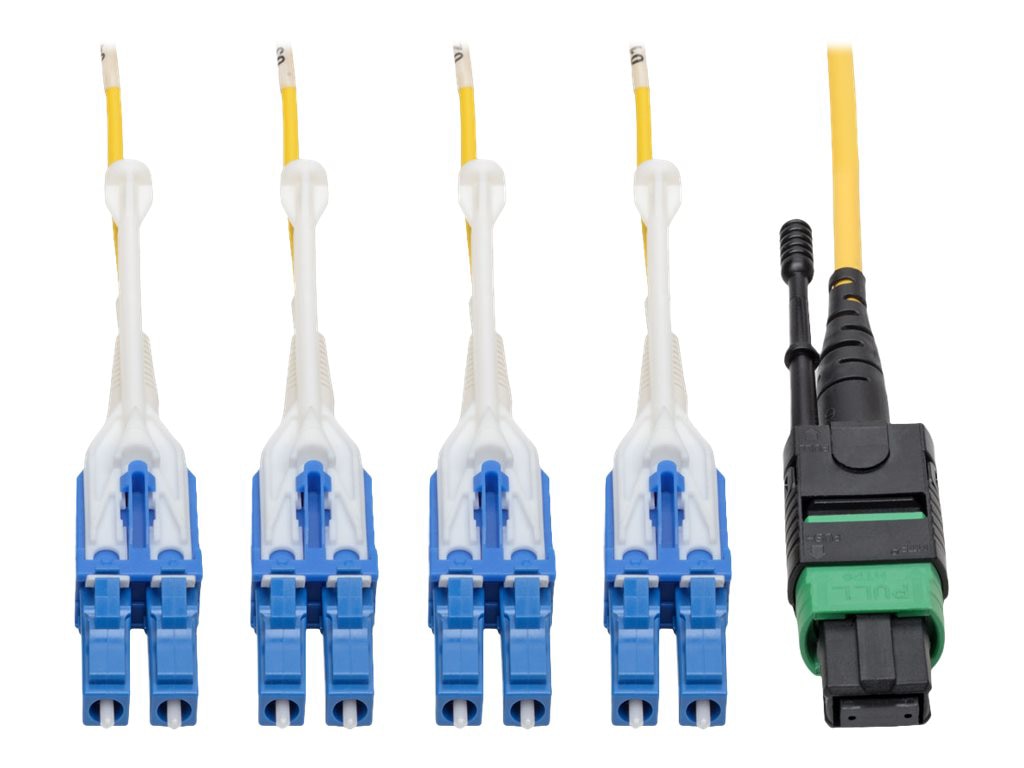

Eaton Tripp Lite Series MTP/MPO (APC) to 4xLC (UPC) Singlemode Breakout Patch Cable, 40/100 GbE, QSFP+ 40GBASE-PLR4,
$367.92
$239.99
Mfg # N390-01M-8LC-AP
CDW # 4781752
| UNSPSC 26121607
Quick tech specs
- PLR4, Plenum, Yellow, 1 m (3.3 ft.)
- MTP/MPO single-mode (F) to LC/UPC single-mode (M)
- fiber optic
- plenum, stranded
- Patch cable
- 1 m
- 8.3 / 125 micron
- yellow
Know your gear
9/125 Rated Singlemode Cable for 40/100 Gb Ethernet Applications
? Designed for high-density fiber patching between data center MDFs and IDFs in enterprise installations
? Optimized for QSFP+ 40GBASE-PLR4 and QSFP28 100GBASE-PSM4 networks
? Plenum-rated jacket suited for ceilings, walls and ducts
? Yellow-colored for identification as a singlemode cable
MTP/MPO APC and LC Duplex UPC Connectors with Push/Pull Tabs
? MTP/MPO female connector and 8 LC duplex male connectors-no splicing required
? 12-fiber MTP/MPO connector 12 times denser than SC connector
? APC connector angled to prevent light from reflecting back into laser
? UPC connector with premium-grade ceramic ferrule for 10 GbE and faster applications
? Push/pull tabs easy to install and remove with one hand
Error-Free Signal Transfer
? Fully transmits 40GBASE-PLR4 with 4 fibers transmitting at 10 Gbps in each direction
? 100% tested for low insertion loss and back reflection
? Slim, space-saving uniboot design easier to manage in crowded applications.
? Designed for high-density fiber patching between data center MDFs and IDFs in enterprise installations
? Optimized for QSFP+ 40GBASE-PLR4 and QSFP28 100GBASE-PSM4 networks
? Plenum-rated jacket suited for ceilings, walls and ducts
? Yellow-colored for identification as a singlemode cable
MTP/MPO APC and LC Duplex UPC Connectors with Push/Pull Tabs
? MTP/MPO female connector and 8 LC duplex male connectors-no splicing required
? 12-fiber MTP/MPO connector 12 times denser than SC connector
? APC connector angled to prevent light from reflecting back into laser
? UPC connector with premium-grade ceramic ferrule for 10 GbE and faster applications
? Push/pull tabs easy to install and remove with one hand
Error-Free Signal Transfer
? Fully transmits 40GBASE-PLR4 with 4 fibers transmitting at 10 Gbps in each direction
? 100% tested for low insertion loss and back reflection
? Slim, space-saving uniboot design easier to manage in crowded applications.
