Quick tech specs
- TAA Compliant Cat5e KVM over IP switch lets you control up to 32 computers/servers/blade servers directly at the same time via Cat5e cabling
- Dual redundant C14 power inlets keep the unit running in case one power supply fails
- Dedicated LUC port connects directly to a laptop for easy console operation
- 4 users (3 remote/1 local) can control up to 32 computers/servers at the same time
- Virtual Media allows access to remote storage including DVD/CD drives etc
- 3-year Eaton warranty
Know your gear

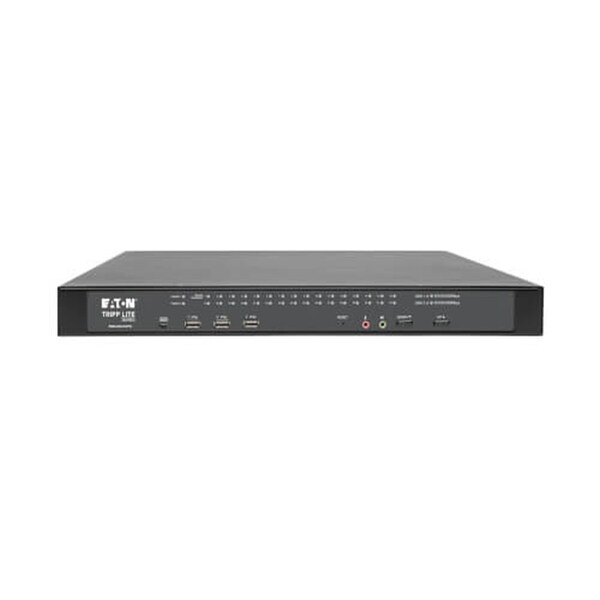

Control as Many as 32 Computers or Servers from Anywhere in the World
This NetDirector Cat5e KVM over IP switch provides BIOS-level access to as many as 32 computers and/or servers directly - including blade servers - from a single monitor - USB keyboard and USB mouse (and up to 256 computers indirectly using the cascade option) Dual redundant C14 power inlets (cords are included) keep KVM control intact in case one power supply fails A Laptop USB Console (LUC) port allows direct connection of a laptop for easy console operation of the B064-032-04-IPH
Simple Network Control That Gives You More Flexibility
The B064-032-04-IPH eases multi-server management in small to large enterprise data centers - as well as applications with multiple or remote users accessing equipment Built-in IP capability allows up to four users - either one local and three remote or all four fully remote - to access the network independently and simultaneously An optional dial-in connection (modem port) is provided to ensure access in situations when the KVM switch is not available over the primary network You may also select a connected computer using on-console pushbuttons - GUI (graphical user interface) - OSD (on-screen display) or keyboard hotkey commands An LED per KVM port indicates when a computer is connected to the port - when it is powered on and when it is selected
High-Resolution On-Screen Display Offers Multi-Language Support
HDMI and VGA ports with high-resolution video up to 1920 x 1200 (at 60 Hz) with 24-bit color depth provide a GUI with management tools - including an event log - auto-scanning and panel array mode Both ports may be in use at the same time The OSD may be set to display in English - German - Russian - Japanese - traditional Chinese or simplified Chinese
Supports Both IPv4 and IPv6 Addresses
The B064-032-04-IPH supports IPv4 - Link Local IPv6 Address and IPv6 Stateless Autoconfiguration protocols You may set the IP address manually or have it automatically assigned via DHCP server (the default method)
Heightened Security for Every Connection
Management software is Java-free to help prevent vulnerabilities Three levels of pre-defined user access (including fundamental BIOS access) allow you to control who gains access to connected servers/computers Remote authentication support is provided via RADIUS - LDAP - LDAPS and Active Directory The B064-032-04-IPH also incorporates advanced encryption technologies: 1024-bit RSA - 56-bit DES - 256-bit AES and 128-bit SSL It also supports high-grade FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module
Network-Wide Storage Media Access
Three USB ports are provided on the front panel for use with Virtual Media or USB peripheral devices Virtual Media capability allows any computer connected to the KVM via a B055-Series server interface unit to access DVD/CD drives - flash drives and other storage media from a remote computer - as if it were directly connected This allows administrators to perform file transfers - install software and perform diagnostics across a network
Free Management Software Included
Free NetDirector-AXS management software is available for accessing and controlling the B064-032-04-IPH From a single interface - you can remotely access server ports and manage KVM settings You can download this software at trippliteeatoncom/support
