- Power distribution unit (rack-mountable)
- AC 100-120 V
- input: NEMA L5-30
- output connectors: 17

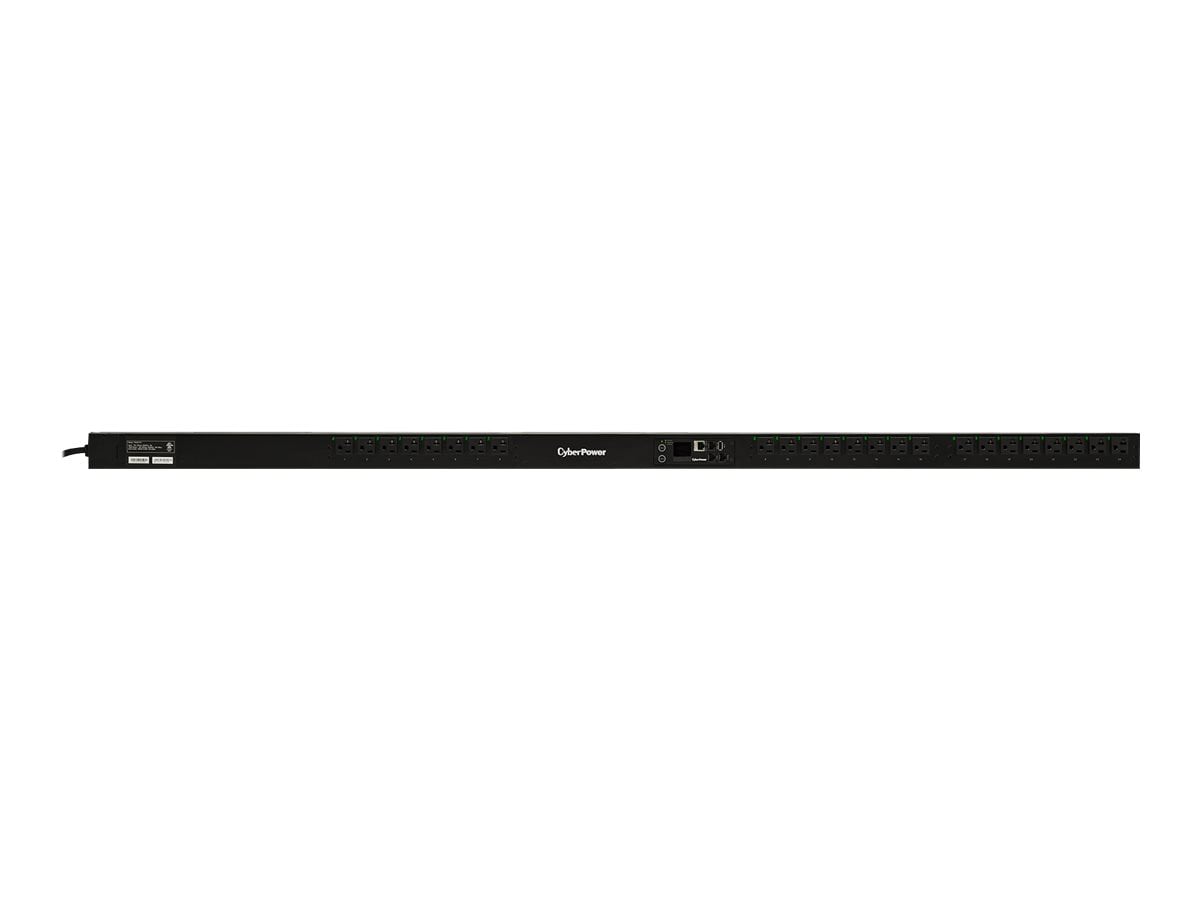

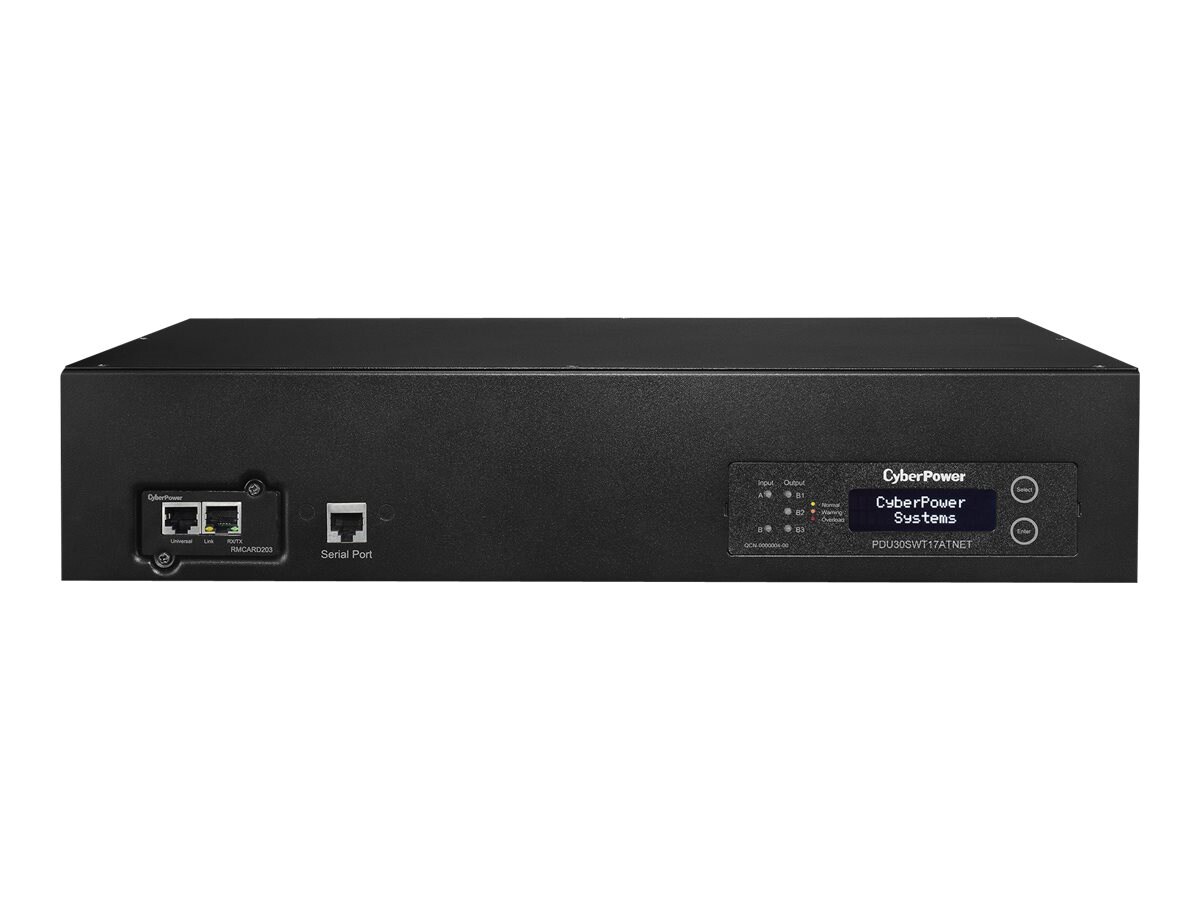

The CyberPower PDU30SWT17ATNET, a 17-outlet (rear), 2U rackmount switched automatic transfer switch (ATS) power distribution unit (PDU), provides 100-120V 30A output. It distributes unfiltered electrical pass-through to 17 receptacles - 16 NEMA 5-20R and 1 NEMA L5-30R receptacles - from redundant NEMA L5-30P plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. The PDU30SWT17ATNET includes a SNMP/HTTP card (RMCARD203). With the SNMP card and an IP address on the network interface, users have real-time monitoring and outlet control of the PDU. The switched outlet receptacles can be managed individually or collectively. The LCD panel provides local monitoring of the PDU and on/off control for the outlets. It can also be used to measure the electrical current (displayed in amperes) used by connected equipment. The LCD panel also shows input and output voltages, active power consumption levels (displayed in kilowatts), and hardware and firmware versions. Designed for datacenters and other demanding electrical applications, the PDU30SWT17ATNET has rugged, industrial-grade metal housing, a 10-foot AC power cord, and a cord retention tray. It can be mounted horizontally and is UL and CSA certified by ETL, and Class A FCC-certified.
