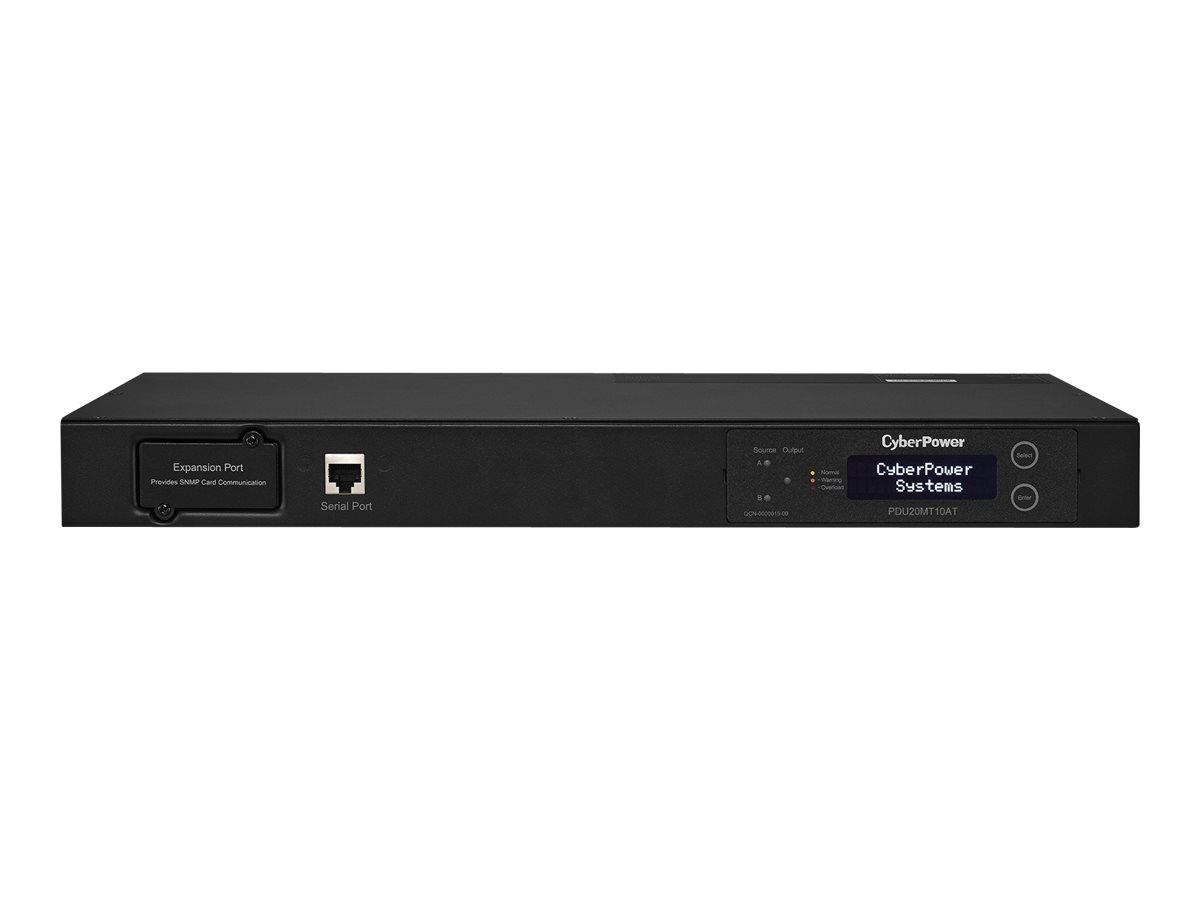

CyberPower Metered ATS Series PDU20MT10AT - power distribution unit

Mfg.Part: PDU20MT10AT | CDW Part: 4457649 | UNSPSC: 39121017
  • Power distribution unit (rack-mountable)
  • AC 100-120 V
  • RS-232
  • input: NEMA L5-20
  • output connectors: 10
  • 1U
View Full

This item was discontinued on May 15, 2020

Contact Sales Assistance
(800) 800-4239, Monday-Friday 7am-7:30pm CT
Better Together
CyberPower Metered ATS Series PDU20MT10AT - power distribution unit
Quick View
Total Price:

Product Details

Main Features
  • Power distribution unit (rack-mountable)
  • AC 100-120 V
  • RS-232
  • input: NEMA L5-20
  • output connectors: 10
  • 1U
The CyberPower PDU20MT10AT, a 10-outlet (rear) rackmount metered auto transfer switch (ATS) power distribution unit (PDU), provides 100-120V / 20A output. The PDU distributes unfiltered electrical pass-through to 10 NEMA 5-20R receptacles from redundant NEMA L5-20P plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring. The LCD provides local monitoring of the PDU. Perform load management by using the display to measure the electrical current (displayed in amperes) used by connected equipment. The LCD can also display input and output voltages, to diagnose potential issues wi
