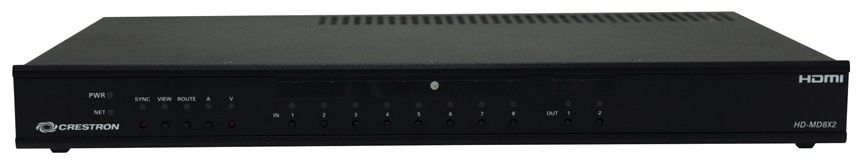

Crestron QuickSwitch HD 8x2 HDMI Switcher
Mfg # HD-MD8X2
CDW # 2143061
Know your gear
A truly advanced HDMI switcher featuring low-latency QuickSwitch HD™ switching technology, HDCP management, EDID resolution reporting, CEC device control access, audio breakaway, and native Crestron control via Cresnet or Ethernet
QuickSwitch HD switchers from Crestron® enable high-performance HDMI signal selection with groundbreaking new features designed by Crestron to deliver trouble-free, low-latency switching of all your DVD and Blu-ray Disc™ players, HDTV receivers, media servers, game consoles, multimedia computers, surround processors and high-def displays. The HD-MD8X2 model features eight HDMI inputs, and two independently switchable HDMI outputs to feed two separate displays, or to support a single display that has built-in PIP capability.
HDMI is the new standard for interfacing high-definition AV equipment, and it is key to handling the latest HD video and audio formats. As the leader in HDMI and control system technologies, Crestron has designed its QuickSwitch HD switchers to provide unparalleled performance, functionality, and custom integration capability. The HD-MD8X2 supports HDMI with HDCP, Deep Color and 3D, handling 1080p60 HDTV and WUXGA computer resolutions, and multi-channel HD lossless audio.
QuickSwitch HD® Technology
Crestron exclusive QuickSwitch HD technology minimizes the annoying switching latency that plagues other HDMI switchers. As the move to digital takes hold, more and more movie studios and television service providers are using HDCP (High-bandwidth Digital Content Protection) to protect their DVDs, Blu-ray Discs, and broadcast signals against unauthorized copying. Viewing the HDCP encrypted content in its full high-definition format requires the source device to "authenticate" each display and signal processor in the system through an HDMI connection before delivering an output signal. Normally the authentication process occurs every time any HDMI signal is switched, causing a complete loss of signal for up to 15 seconds.
QuickSwitch HD technology achieves very fast switching of HDMI signals by maintaining a constant HDCP connection with each HDMI device in the system, eliminating the need to re-authenticate each time a different source is selected
Key Features
High-performance 8x2 HDMI® switcher
Low-latency QuickSwitch HD® switching technology
Supports HDMI with Deep Color, 3D, and 7.1 channel HD lossless audio
Compatible with DVI and DisplayPort Multimode (adapters required)
Supports video resolutions up to WUXGA 1920x1200 and HD 1080p60
Detects and reports detailed video and audio input information
Manages HDCP digital rights management for connected devices
Performs automatic AV signal format management via EDID
Includes front panel controls with security lockout
Allows audio breakaway switching
Enables device control via CEC
Simple setup and diagnostics via software
Native control system integration via Ethernet or Cresnet®
Provides input expansion for the AMS-AIP
Single-space 19-inch rack-mountable
HDMI is the new standard for interfacing high-definition AV equipment, and it is key to handling the latest HD video and audio formats. As the leader in HDMI and control system technologies, Crestron has designed its QuickSwitch HD switchers to provide unparalleled performance, functionality, and custom integration capability. The HD-MD8X2 supports HDMI with HDCP, Deep Color and 3D, handling 1080p60 HDTV and WUXGA computer resolutions, and multi-channel HD lossless audio.
QuickSwitch HD® Technology
Crestron exclusive QuickSwitch HD technology minimizes the annoying switching latency that plagues other HDMI switchers. As the move to digital takes hold, more and more movie studios and television service providers are using HDCP (High-bandwidth Digital Content Protection) to protect their DVDs, Blu-ray Discs, and broadcast signals against unauthorized copying. Viewing the HDCP encrypted content in its full high-definition format requires the source device to "authenticate" each display and signal processor in the system through an HDMI connection before delivering an output signal. Normally the authentication process occurs every time any HDMI signal is switched, causing a complete loss of signal for up to 15 seconds.
QuickSwitch HD technology achieves very fast switching of HDMI signals by maintaining a constant HDCP connection with each HDMI device in the system, eliminating the need to re-authenticate each time a different source is selected
