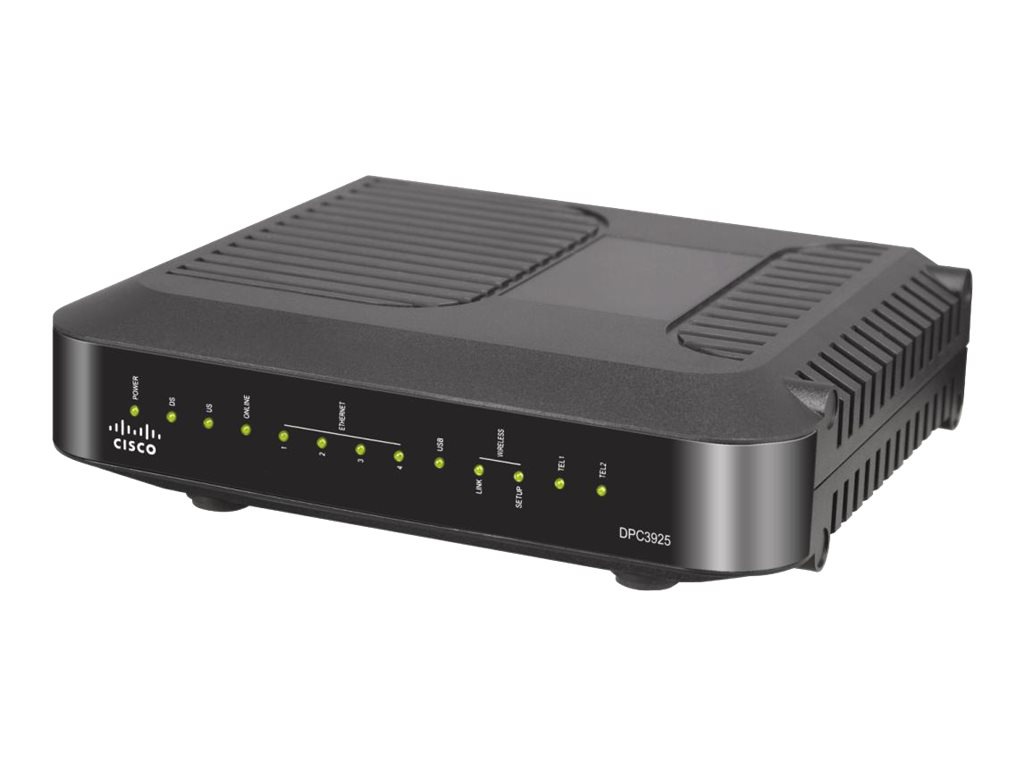

Cisco Model DPC3925 8x4 DOCSIS 3.0 Wireless Residential Gateway with Embedd

The Cisco Model DPC3925 8x4 DOCSIS 3.0 Wireless Residential Gateway with Embedded Digital Voice Adapter (DPC3925) is a high-performance home gateway that combines a cable modem, two-line digital voice adapter, router and 802.11n wireless access point in a single device providing a cost-effective voice and networking solution for both the home and small office. The DPC3925 provides a faster connection to the Internet by incorporating eight bonded downstream channels along with four bonded upstream channels. These bonded channels deliver downstream data rates in excess of 340 Mbps and upstream data rates in excess of 120 Mbps. That's up to eight times faster downloads than conventional single-channel DOCSIS 2.0 cable modems. The DPC3925 supports 10 REN total, 5 REN loading on each phone line. The DPC3925 is designed to meet PacketCable 1.5 and DOCSIS 3.0 specifications as well as offering backward compatibility for operation in PacketCable 1.0 and DOCSIS 2.0, 1.1, and 1.0 networks.

Designed for the active digital home or office, the DPC3925 integrated router features a Dynamic Host Configuration Protocol (DHCP) server, Network Address and Port Translation (NAT/NAPT) and a Stateful Packet Inspection (SPI) firewall. These features allow the user to share a single high-speed public Internet connection as well as share files and folders between devices within the home network by attaching multiple wired and wireless devices in the user's home or office to the wireless residential gateway. Consumer-friendly features like Wireless Protected Setup (WPS) and user-configured Parental Control can protect the home network from unwelcome intruders and family members from access to undesirable websites.
