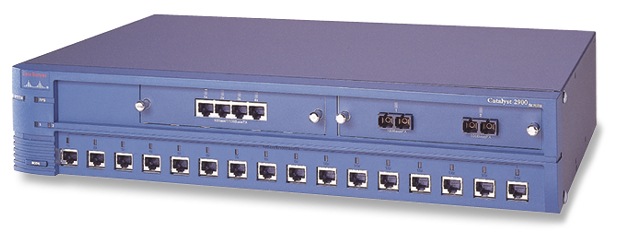

Cisco Catalyst 2924M XL Enterprise Edition
Mfg # WS-C2924M-XL-EN
CDW # 150788
| UNSPSC 43222612
Quick tech specs
- 24-port 10/100BASE-TX Fast Ethernet 19-inch rackmountable switch with 2 modular expansion slots
Know your gear
The Cisco Catalyst 2924M XL 10/100 autosensing Fast Ethernet switch combines outstanding performance, ease of use, and integrated Cisco IOS software from the leader in networking
The Catalyst 2924M XL will be deployed in wiring closets to aggregate workgroup networking devices such as Fast Ethernet hubs, Ethernet hubs and switches, and workgroup servers. Fast EtherChannel technology allows customers to logically `bond" multiple Fast Ethernet links, creating a high-capacity uplink to the corporate or campus backbone. Future high-speed modules will allow customers the flexibility to upgrade their networks and preserve their initial investment in the Catalyst 2924M XL.
Features:
2 Modular Slots (100BASE-FX, 1000BASE-SX/LX, Gigastack, or ATM).
3.2-gigabits-per-second (Gbps) data switching backplane
Virtual LAN (VLAN) support, up to 64 VLANS.
Support for ISL, 802.1P, 802.1Q, and VTP on all ports with enterprise upgrade.
Simple Network Management Protocol (SNMP) and Telnet interface support.
Built-in HTTP server.
Four groups of embedded RMON (History, Statistics, Alarms, and Events).
19-inch rack-mountable.
The system can switch over three million packets per second
2,048 active MAC addresses
Bandwidth aggregation through Fast EtherChannel technology supported on all ports.
8MB of Dram
4MB of Flash
Features:
2 Modular Slots (100BASE-FX, 1000BASE-SX/LX, Gigastack, or ATM).
3.2-gigabits-per-second (Gbps) data switching backplane
Virtual LAN (VLAN) support, up to 64 VLANS.
Support for ISL, 802.1P, 802.1Q, and VTP on all ports with enterprise upgrade.
Simple Network Management Protocol (SNMP) and Telnet interface support.
Built-in HTTP server.
Four groups of embedded RMON (History, Statistics, Alarms, and Events).
19-inch rack-mountable.
The system can switch over three million packets per second
2,048 active MAC addresses
Bandwidth aggregation through Fast EtherChannel technology supported on all ports.
8MB of Dram
4MB of Flash
