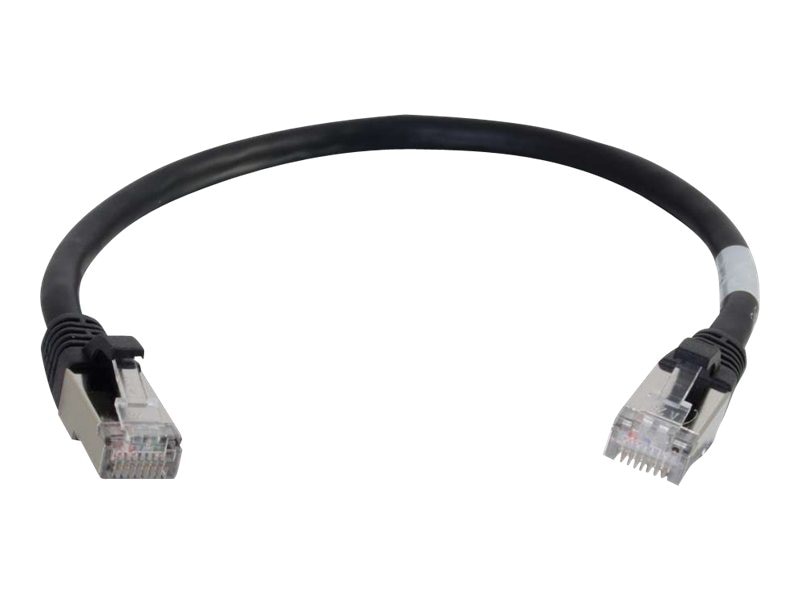

C2G 9ft Cat6a Snagless Shielded (STP) Network Patch Ethernet Cable Black - patch cable - 2.74 m - black

This Snagless Shielded Cat6a patch cable is ideal for use with 10GBase-T ports and equipment, such as network adapters, hubs, switches, routers, DSL/cable modems and patch panels, and will protect a high speed 10 Gigabit network connection from noise and electromagnetic interference. For voice/data/video distribution, this cable will handle bandwidth-intensive applications and drastically reduces both impedance and structural return loss (SRL). Each patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements. Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality cable and plugs, this design minimizes Near-End Crosstalk (NEXT) levels. Available in a variety of colors to easily color-code a network installation. Individual length label on each cable for ease of use.

Additional Technical Specifications

Physical Characteristics

Cable type: Stranded SSTP

Wiring scheme: 568B

Temperature rating: 75°C

Testing: ANSI/TIA 568 C.2 Cat6a component tested

Conductor (4 pair)

Conductor type: 26AWG (7/0.16) (bare copper)

Insulation: FM-PE

Overall cable

Foil shield: Aluminum foil (100% coverage)

Braided shield: Copper braid (40% coverage)

Jacket: PVC

Connector

Connector Type: RJ-45 Male

Shell: Nickel plated for shielding

Housing: Polycarbonate

Contacts: 50

m gold plated

Hood: Molded Snagless PVC

Dimension (L x W x H): 38.2 x 11.6 x 15.9.
