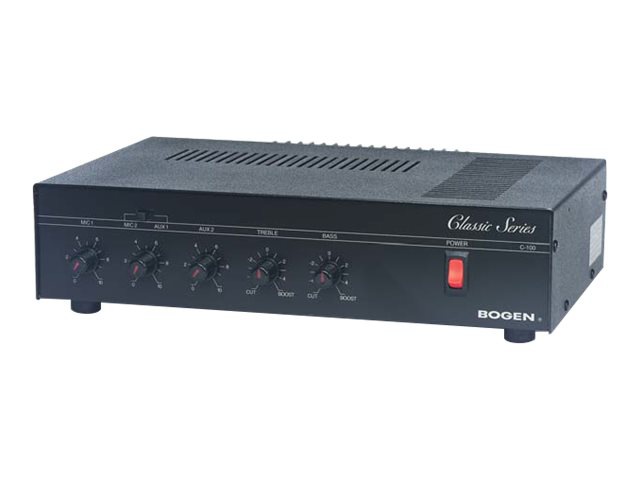

Bogen Classic Series 100 Watt Public Address Amplifier

The Bogen Classic Series Models are public address mixer amplifiers that provide mixing of microphones, telephone, and auxiliary sources.



Output screw terminals are provided for 4-ohm (direct) and 8-ohm, 16-ohm, 25V and 70V (transformer-coupled) speaker systems. Output jacks let you connect to a tape recorder or an additional booster amplifier, or feed a 600-ohm telephone line when an accessory transformer (Model WMT1A) is used.



Features:

4 inputs: 1 MIC (Lo-Z), 1 AUX (Hi-Z), 1 TEL, plus 1 selectable MIC or AUX

Each input controlled by an independent volume control

Treble and bass controls

AUX muting by external contact closure for push-to-talk mic’s

Tel input for telephone paging applications

TEL input voice-activated (VOX) mute over AUX input

Variable threshold for TEL input voice-activated AUX mute

Audio output for tape recorder or booster amplifier

Outputs for 4-ohm (direct), 8-ohm, and 16-ohm, 25V and 70V speaker systems (transformer coupled)

Output jack to connect a tape recorder or booster amplifier

Output jack to connect a general-purpose 600-ohm matching transformer (model WMT1A)

Thermal protection and electronic shutdown

Rack mountable with accessory mounting kit

UL and CSA listed
