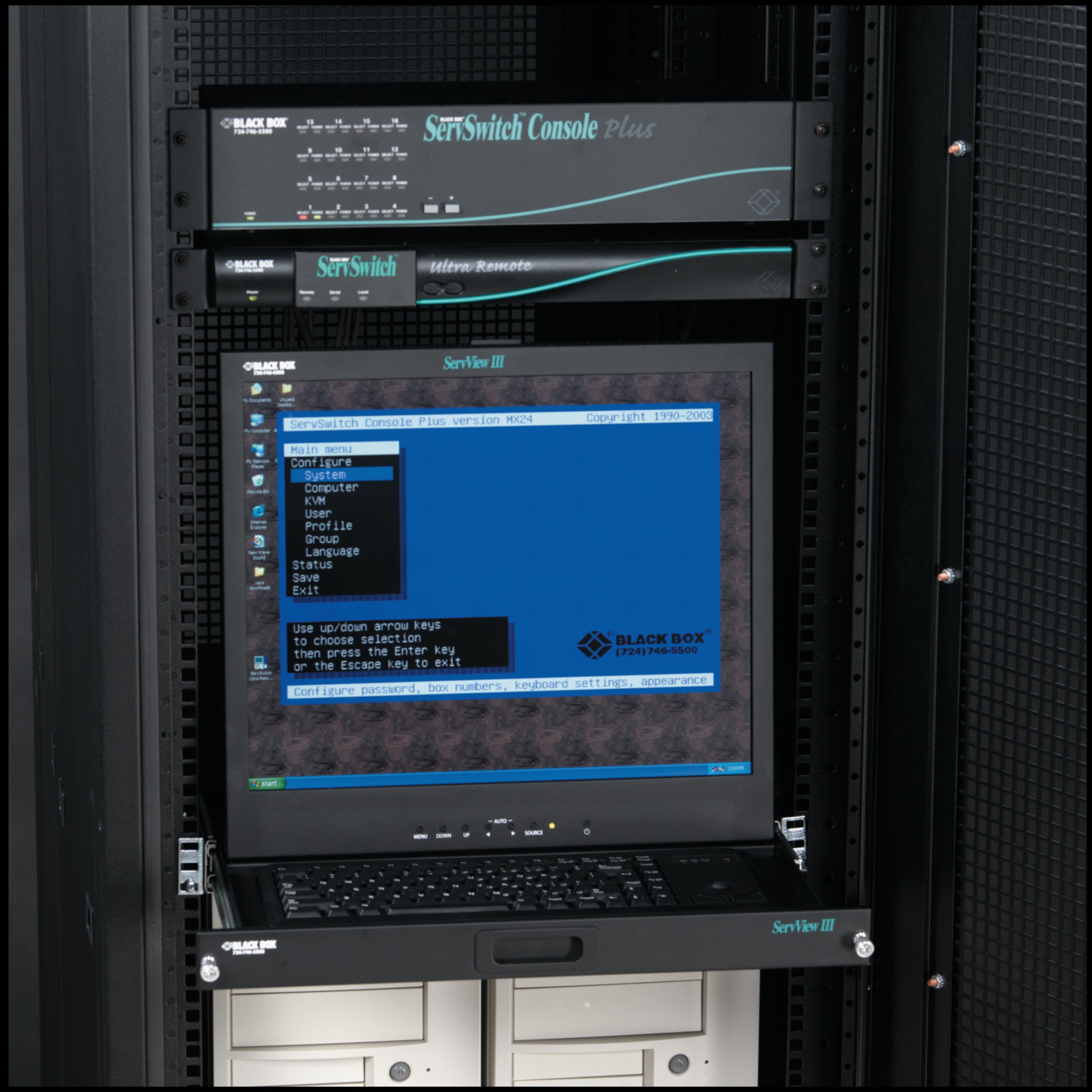

Black Box ServView III
Mfg # KVT140A-R2
CDW # 880607
| UNSPSC 43211902
Quick tech specs
- 1U rackmountable KVM console drawers that can hold a single-user or multiuser ServSwitch!
Know your gear
For the unit’s overall spacesaving design, the numeric keyboard has been moved and incorporated into the main alphanumeric block. Numeric keys for ”4” and ”5,” for example, now occupy a second legend on the ”U” and ”I” keys. When the keyboard’s NumLock LED is lit and the Pad LED is extinguished, these secondary functions can be enabled by depressing the ”Fn” key while using them.
The integrated trackball controls the on-screen pointer and provides easy mouse movement, with a tracking speed of 500 mm/second and a variable resolution from 20 to 6400 dpi. Its buttons operate the same as left and right mouse buttons. For comfort, the trackball features an ergonomic wrist wrest.
With the four included mounting rails, the drawer installs easily in a standard 19"-wide cabinet or rack and can be set for 28" (71.1 cm) to 36" (91.4-cm) depths.
To attach the keyboard/mouse to your system (PS/2® only), you simply switch off your computer system, plug the violet-colored PS/2 jack into the keyboard jack on the computer, and plug the green PS/2 jack into the mouse jack on the keyboard. It’s now ready to use! The included cable can be stretched more than 5 feet to reach CPU connections in the rack or cabinet.
The ServView III can also be attached to a KVM switch, including a ServSwitch™, with a single composite cable. An external cable-carrying arm reduces cable clutter.
There are no hassles and there’s no confusion when setting it up. The ServView III works with any Plug-and-Play compatible system, which can configure itself for use with the panel automatically by recognizing the panel’s Extended Display Identification (EDID) and Display Data Channel (DDC) protocols.
An auto-adjustment feature optimizes the display settings for use with your computer. But to get the best image from the ServView III’s LCD, you can fine-tune the image’s brightness, sharpness, contrast, frequency, gamma, and other characteristics by using control buttons on the monitor’s front. Adjustments display as numeric values on an on-screen menu while you make them.
The ServView III also provides a self-test feature that enables you to check whether it’s functioning properly.
Features:
Heavy-duty, full-size keyboard for typing comfort and an integrated trackball for easy mouse movement.
19“ LCD panel supports 1280 x 1024 resolutions.
Supports PS/2®, UNIX®, Sun®, and Macintosh® computers.
Fits in a standard 19“ cabinet with four mounting rails and fits into a 28“- to 36“-deep cabinet.
Quick and easy installation
Package contents:
• Drawer assembly including (1) keyboard, (1) trackball mouse, and (1) 19" LCD monitor on a telescoping, rackmount rail assembly
• (1) cable-carrier arm
• (8) 10-32 x 5⁄8" self-tapping screws
• (1) PS/2 serial adapter
• (2) strips of VELCRO®
• (1) power cord
• (1) users’ manual
The integrated trackball controls the on-screen pointer and provides easy mouse movement, with a tracking speed of 500 mm/second and a variable resolution from 20 to 6400 dpi. Its buttons operate the same as left and right mouse buttons. For comfort, the trackball features an ergonomic wrist wrest.
With the four included mounting rails, the drawer installs easily in a standard 19"-wide cabinet or rack and can be set for 28" (71.1 cm) to 36" (91.4-cm) depths.
To attach the keyboard/mouse to your system (PS/2® only), you simply switch off your computer system, plug the violet-colored PS/2 jack into the keyboard jack on the computer, and plug the green PS/2 jack into the mouse jack on the keyboard. It’s now ready to use! The included cable can be stretched more than 5 feet to reach CPU connections in the rack or cabinet.
The ServView III can also be attached to a KVM switch, including a ServSwitch™, with a single composite cable. An external cable-carrying arm reduces cable clutter.
There are no hassles and there’s no confusion when setting it up. The ServView III works with any Plug-and-Play compatible system, which can configure itself for use with the panel automatically by recognizing the panel’s Extended Display Identification (EDID) and Display Data Channel (DDC) protocols.
An auto-adjustment feature optimizes the display settings for use with your computer. But to get the best image from the ServView III’s LCD, you can fine-tune the image’s brightness, sharpness, contrast, frequency, gamma, and other characteristics by using control buttons on the monitor’s front. Adjustments display as numeric values on an on-screen menu while you make them.
The ServView III also provides a self-test feature that enables you to check whether it’s functioning properly.
