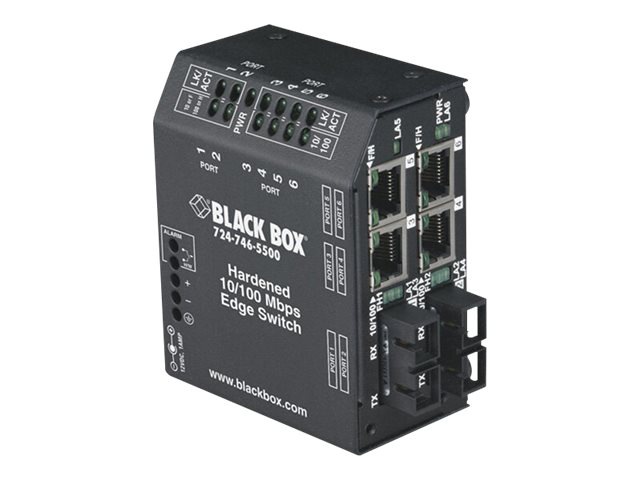

- port 10/100BASE-TX Fast Ethernet unmanaged switch with 2 100Mbps Multimode Fiber ports 100–240-VAC with ST connectors
Ideal for use in dusty or dirty environments, Hardened Heavy-Duty Edge Switches are tough, 6-port Ethernet switches that enable you to expand your network into harsh factory floor environments. They’re also rated for a temperature range of -13 and +140° F (-25 and +60° C), and their sturdy, metal case functions as a heat sink so no internal airflow is needed for cooling. A sealed case resists contaminants such as dust, dirt, moisture, smoke, and insects.
AC-powered switches feature 100- to 240-VAC power supplies
Multimode models support up to 2 kilometers (1.2 miles) between switches.
Heavy-Duty Edge Switches are literally plug-and-play. All copper ports are autosensing for speed and duplex, adjusting to the connected device automatically. Plus, the UTP ports feature Auto MDI/MDI-X, eliminating the need for crossover cables.
Each switch has two full sets of LED indicators: one set on the front for viewing convenience when the switch is DIN rail or wallmounted and one set mounted in the end next to the media ports for easy viewing when units are in a rackmount tray.
Heavy-Duty Edge Switches feature Link-Loss-Learn (LLL) for fast network recovery when using the switches in a redundant application. In a normal network situation where you have a primary link and a backup link, the network can take as much as a few minutes to recover after the primary link goes down. This is because, when the link breaks, the switch will use its old MAC address table to try to send data to the disabled port.
However, if a link breaks with LLL in place, the switch senses the disconnect and instantly clears its MAC address table, forcing a new address table that includes the new link.
LLL works on both fiber and copper ports, and you can enable or disable this feature as needed.
Use Heavy-Duty Edge Switches as standalone or wallmounted units. You can also rackmount up to eight units in the optional Rackmount Tray. We also offer 24-VDC versions that can be mounted on a DIN rail. To DIN rail mount the other switches, simply order the optional DIN Rail Mounting Kit.
The switches each have two full sets of LED indicators: one set on the front for viewing and one set mounted next to the media ports, so you get a clear view of the LEDs from any angle.
